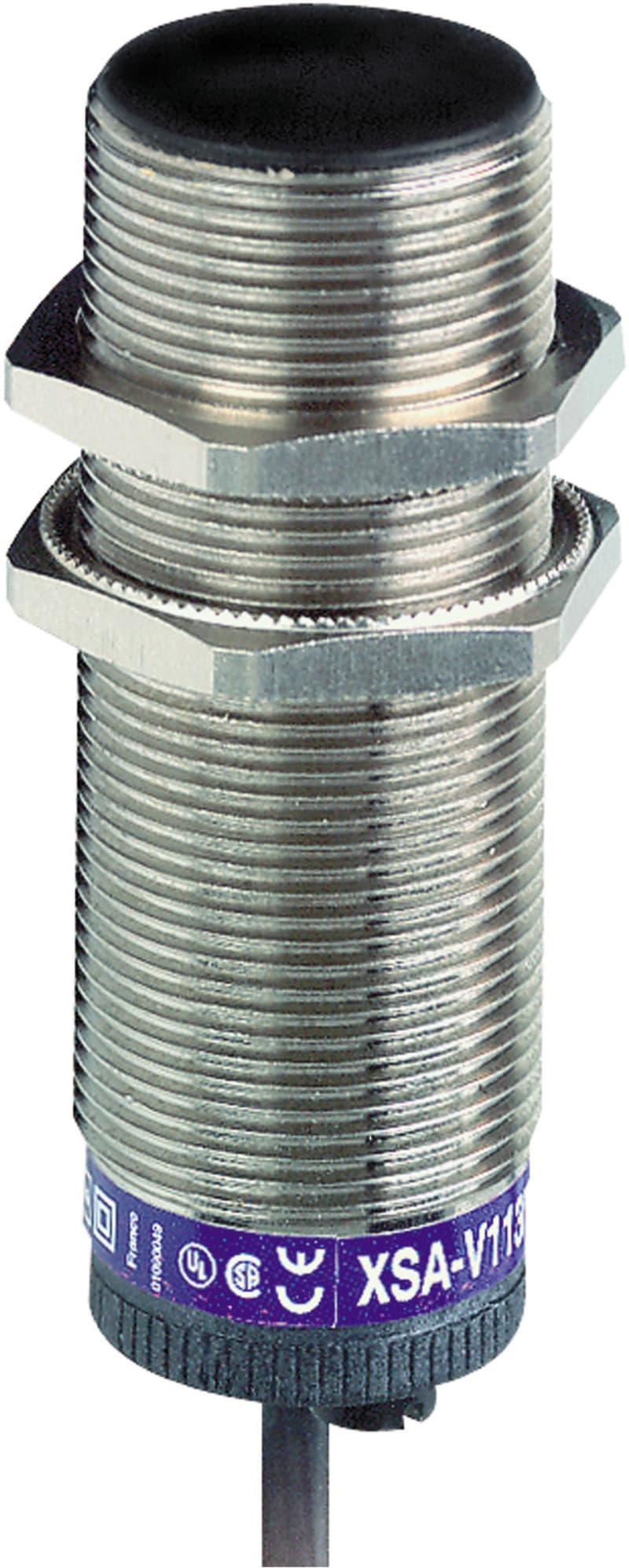

Telemecanique XSAV12801 Inductive Sensor for Rotation Monitoring, Ø30 mm, 230 V AC
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XSAV12801 OsiSense XSAV inductive sensor for under-speed and rotation monitoring, Ø30 mm barrel, 230 V AC supply.
Technical Specifications
- Manufacturer part number (MPN)
- XSAV12801
- EAN / GTIN
- 3666916009147
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Voltage
- 230 V AC
- Length of sensor
- 81 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 10 mm
- Suitable for safety functions
- No
- Type of switch function
- Breaker contact
- Type of switching output
- PNP/PNP
- Type of electric connection
- Cable radial
- Number of semiconductor outputs with signalling function
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Supply voltage
- 24–240 V
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–210 V
- Voltage type
- AC/DC
- Switching frequency
- 800 Hz
- With monitoring function downstream switching devices
- No
- Housing material
- Metal
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916009147
- SAP 1000076383
- Code 8567240
