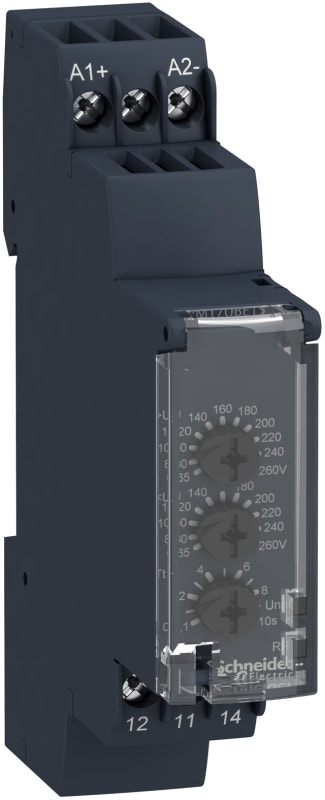

Telemecanique Modular 1-Phase voltage control relay, 5 A, 1 CO, 65…260 V AC/DC RM17UBE15

The relay is easy to mount and has adjustment of the voltage threshold and an optional time delay on the front of the relay.

Manufacturer part number (MPN)

RM17UBE15 EAN / GTIN: 3389119405140 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Voltage control relay Product or component type: Voltage control relay Relay name: RM17UBE Product specific application: For single-phase and DC supply Relay monitored parameters: Overvoltage and undervoltage detection Control type: Without test button Contacts type and composition: 1 C/O [Us] rated supply voltage: self-powered Supply voltage limits: 50…270 V AC/DC Measurement range: 65...260 V AC/DC Hysteresis: 5 % fixed of threshold setting Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 1 % for time delay Time delay type: Adjustable 0.1...10 s, 0 + 10 % Tt- time delay upon fault Setting accuracy of time delay: 10 % Reset time: 1500 ms time delay Power on delay: 1000 ms DC; 500 ms AC Output contacts: 1 C/O nominal output current: 5 A Maximum switching voltage: 250 V AC/DC Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC/DC Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Power consumption in VA: 0…3 VA AC Maximum power consumption in W: 1 W DC Control circuit frequency: 50...60 Hz +/- 10 % Measurement accuracy: +/- 10 % of the full scale value Polarity: Non reversible polarity on DC supply Maximum measuring cycle: 150 ms measurement cycle as true rms value Quality labels: CE Operating rate: <= 360 operations/hour full load Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: IEC 60255-6 Product certifications: UL; GL; GOST; C-Tick; CSA Directives: 73/23/EEC - low voltage directive; 89/336/EEC - electromagnetic compatibility Ambient air temperature for storage: -40…70 °C; -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5; 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5; > 500 MOhm at 500 V DC conforming to IEC 60664-1 [Ui] rated insulation voltage: 250 V conforming to IEC 60664-1; 400 V conforming to IEC 60664-1 Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...2 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Reliability data: B10d = 470000; MTTFd = 502.2 years Width: 17.5 mm; 17.8 mm Height: 90 mm; 88.9 mm Depth: 72 mm; 71.1 mm Product weight: 0.09 kg; 0.09 kg Number of Units in Package 1: 1 Number of Units in Package 2: 48 Country of origin: ID Warranty (in months): 18 Type of electric connection: Screw connection With detachable clamps: No Single-phase under voltage possible: Yes Three-phase under voltage possible: No Single-phase overvoltage possible: Yes Three-phase overvoltage possible: No Single-phase hysteresis possible: No Three-phase hysteresis possible: No Contains function DC-under voltage: Yes Contains function DC overvoltage: No Contains function DC-voltage hysteresis: No Voltage measuring range 1: 65–260 V Voltage measuring range 2: 65–260 V Type of voltage measuring range: AC/DC Rated control supply voltage AC 50 Hz: 110–240 V Rated control supply voltage AC 60 Hz: 110–240 V Rated control supply voltage DC: 110–240 V Voltage type for actuating: AC/DC Response value voltage: 50–270 V Min. adjustable delay-on energization time: 0 s Max. permitted delay-on energization time: 0.5 s Min. adjustable off-delay time: 0.1 s Max. permitted off-delay time: 10 s Number of contacts as change-over contact: 1
