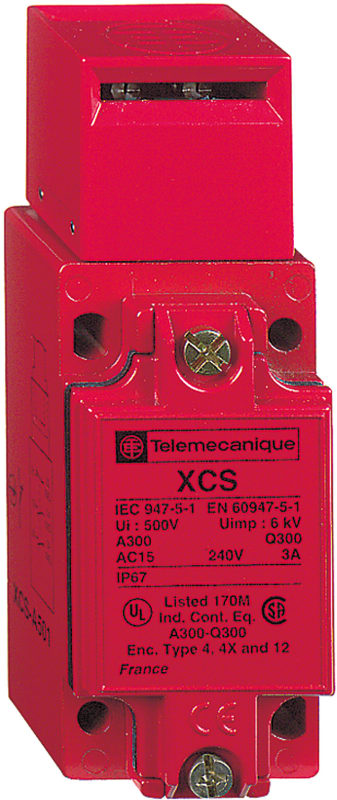

Telemecanique XCSA702 Key-Operated Safety Interlock Switch (Actuator Key Not Included)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSA702 key-operated safety interlock switch body; the actuator key is ordered separately.
Technical Specifications
- Manufacturer part number (MPN)
- XCSA702
- EAN / GTIN
- 3666916049334
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP67K
- Forced opening
- Yes
- Type of interface
- None
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 40 mm
- Height of sensor
- 114 mm
- Length of sensor
- 44 mm
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916049334
- SAP 1000066808
- Code 8740264
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLA010A2S11 Pressure Switch, 0.6–10 bar
Telemecanique
Telemecanique XY2CJS19H29 Emergency Stop Rope Pull Switch, 20 m Rope Span, 2 NC + 1 NO, M20 entry
Telemecanique
Telemecanique OsiSense XS118BLPAM12 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XY2CH13290H29 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC + 1 NO, M20 entry
Telemecanique
Telemecanique XY2CZ302 Emergency Stop Rope Pull Switch, 5 m Rope Span
Telemecanique
Telemecanique OsiSense XS218B4PAM12 Inductive Proximity Sensor — M18 barrel, Sn 16 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique OsiSense XS618B1PAM12 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique ZCKM1H29 Limit Switch, 1 NO + 1 NC, M20 entry
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSA702?
- XCSA702 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSA702.
- What is the HS code for XCSA702?
- The customs tariff (HS) code for XCSA702 is 8536.90.
- Who manufactures XCSA702?
- XCSA702 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSA702?
- Yes — the XCSA702 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSA702?
- The minimum order quantity is 1.
- Is XCSA702 available?
- Yes — XCSA702 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
