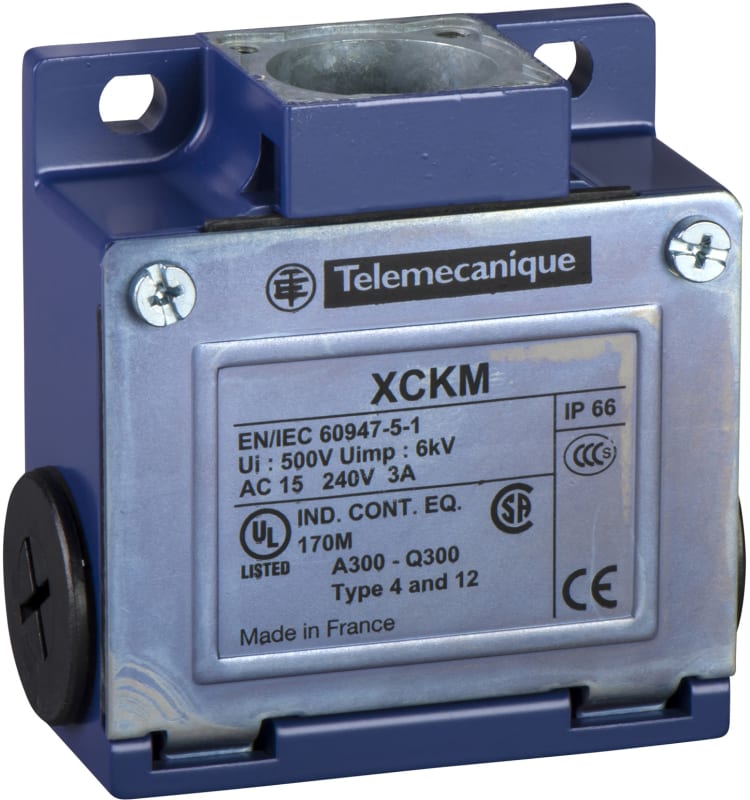

Telemecanique ZCKM1H29 Limit Switch, 1 NO + 1 NC, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKM1H29 limit switch (position switch), 1 NO + 1 NC contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKM1H29
- EAN / GTIN
- 3666916043776
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Contact configuration
- NO + NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 64 mm
- Height of sensor
- 64 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916043776
- SAP 1000259950
- Code 81151057
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCKM5H29 Limit Switch, 1 NO + 1 NC, M20 entry
Telemecanique
Telemecanique XCKD2145P16 Limit Switch, Adjustable-Length Roller Lever, Metal Body, M16 cable entry
Telemecanique
Telemecanique Modular 3-Phase supply control relay, 5 A, 2 CO, 208...440 V AC RM17TG20
Telemecanique
Telemecanique OsiSense XS1N30PA349D Inductive Proximity Sensor — M30 barrel, Sn 20 mm, PNP, NO
Telemecanique
Telemecanique XUZC50 Reflector, 50 × 50 mm, for Photoelectric Sensors
Telemecanique
Telemecanique ZCKJ1H29 Limit Switch, 1 NO + 1 NC, M20 entry
Telemecanique
Telemecanique XSAV11373 Inductive Sensor for Rotation Monitoring, Ø30 mm, 24 V DC, PNP
Telemecanique
Telemecanique XUM9APXBM8 Photoelectric Sensor, Retroreflective, Sn 6.7 m, PNP, M8 connector
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZCKM1H29?
- ZCKM1H29 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZCKM1H29.
- What is the HS code for ZCKM1H29?
- The customs tariff (HS) code for ZCKM1H29 is 8536.50.
- Who manufactures ZCKM1H29?
- ZCKM1H29 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for ZCKM1H29?
- Yes — the ZCKM1H29 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZCKM1H29?
- The minimum order quantity is 1.
- Is ZCKM1H29 available?
- Yes — ZCKM1H29 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
