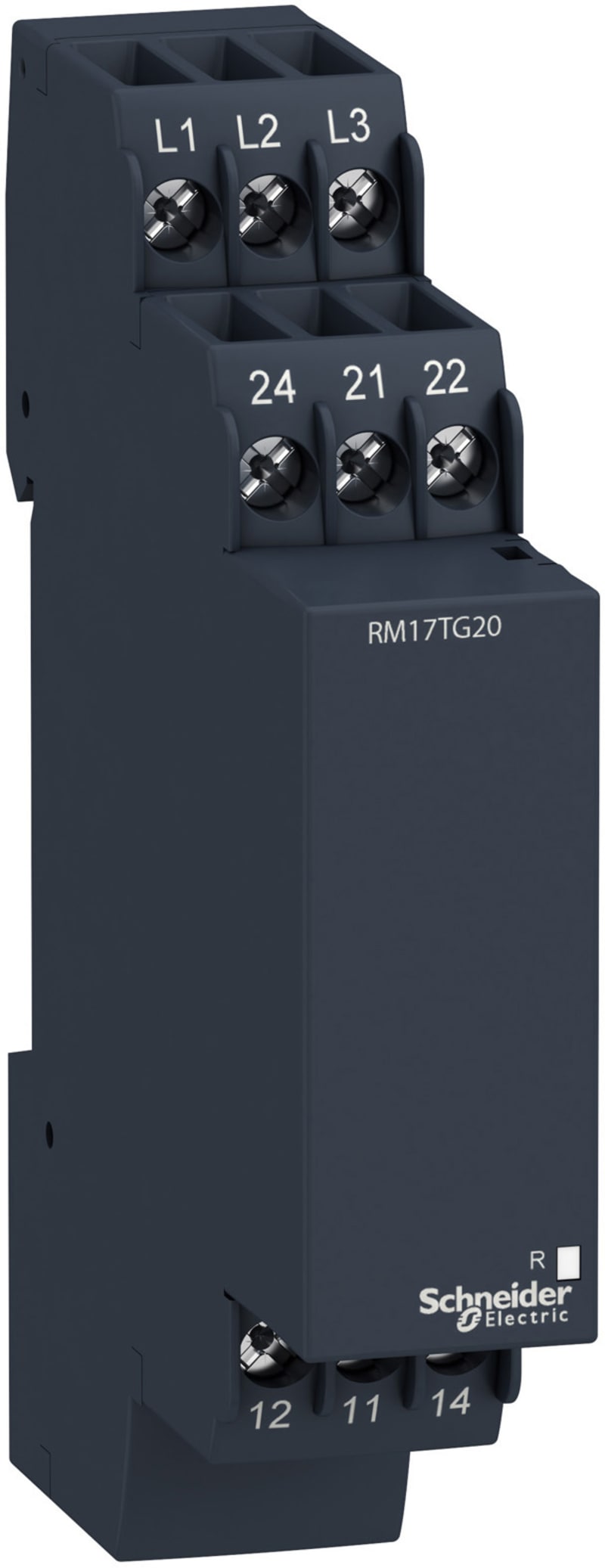

Telemecanique Modular 3-Phase supply control relay, 5 A, 2 CO, 208...440 V AC RM17TG20

Telemecanique RM17TG20. The relay detects all faults that may occur in a three-phase system (phase loss, phase rotation, over- and undervoltage).

Manufacturer part number (MPN)

RM17TG20

EAN / GTIN

3389119405072

HS code

8536.90

Sales unit

pcs

Package quantity

48 pcs

Voltage

208-480 V AC

Rated current

5 A

Range of product

Harmony Control Relays

Relay type

Control relay

Relay name

RM17TG

Product or component type

3-phase control relay

Relay monitored parameters

Phase sequence; Phase failure detection (2 or more phase cut)

Control type

Without test button

Contacts type and composition

2 C/O

[Uc] control circuit voltage

208...440 V

Product specific application

For 3-phase supply

[Us] rated supply voltage

self-powered

Supply voltage limits

183…484 V AC

Supply frequency

50/60 Hz +/- 10 %

Power consumption in VA

0…22 VA at 400 V AC 50 Hz

Measurement range

208...480 V AC

Measurement voltage limits

183…484 V AC

Voltage detection threshold

< 100 V AC

Time delay type

Without

Output contacts

2 C/O

Nominal output current

5 A

Switching capacity in VA

1250 VA

Maximum switching voltage

250 V AC

Minimum switching curre
