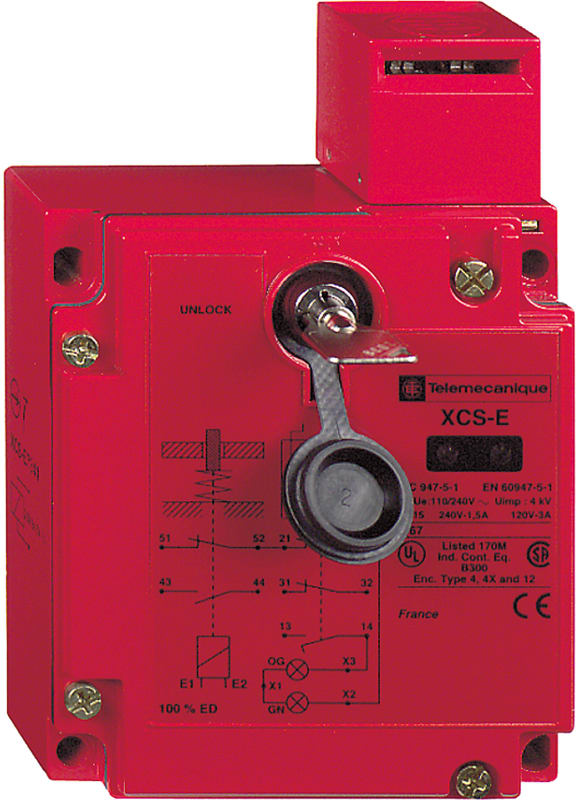

Telemecanique XCSE7312 Safety Limit Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSE7312 safety limit switch with positive opening contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSE7312
- EAN / GTIN
- 3666916048689
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Type of locking
- Quiescent current principle
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 24 V
- Rated control supply voltage magnet drive AC 60 Hz
- 24 V
- Rated control supply voltage magnet drive DC
- 24 V
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 98 mm
- With escape release
- No
- Height of sensor
- 146 mm
- Length of sensor
- 44 mm
- Ambient temperature during operating
- -25–40 °C
- Guard locking force
- 2000 N
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916048689
- SAP 1000053789
- Code 8835279
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKM115H29 Limit Switch, 1 NO + 1 NC, M20 entry
Telemecanique
Telemecanique OsiSense XS612B1PAM12 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XCSPA792 Safety Limit Switch, 2 NC, M16 entry
Telemecanique
Telemecanique XCSA702 Key-Operated Safety Interlock Switch (Actuator Key Not Included)
Telemecanique
Telemecanique XMLA010A2S11 Pressure Switch, 0.6–10 bar
Telemecanique
Telemecanique XY2CJS19H29 Emergency Stop Rope Pull Switch, 20 m Rope Span, 2 NC + 1 NO, M20 entry
Telemecanique
Telemecanique OsiSense XS118BLPAM12 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XY2CH13290H29 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC + 1 NO, M20 entry
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
