Stork
Wall box for heltrewaller
Part number9264-12EAN / GTIN4013456551022HS code8544.42
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

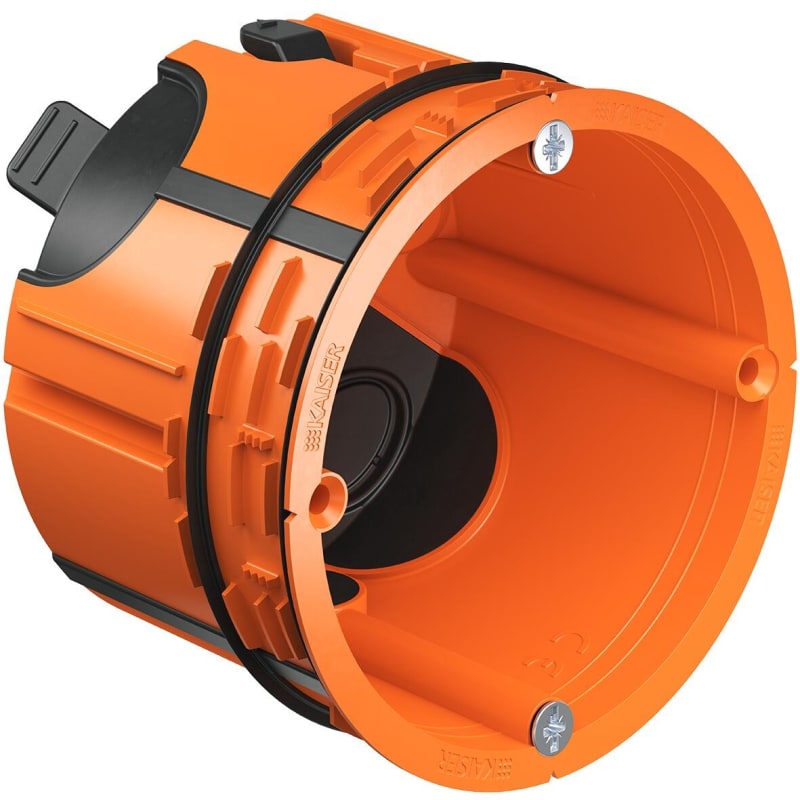

Stork 9264-12 Wall box for heltrevegger bersuitable for pipe and cable.
Technical Specifications
- Manufacturer part number (MPN)
- 9264-12
- EAN / GTIN
- 4013456551022
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Built-in installation box (device box)
- Model
- Single
- Provided with revolving ring
- No
- Couplable
- Yes
- Diameter
- 68 mm
- Length
- 62 mm
- Inner depth
- 62 mm
- Suitable for wall/board thickness
- 30–200 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- No
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- No
- Housing feed-through by step membrane
- Yes
- For tube diameter
- 16/20/25 mm
- Suitable for cable diameter
- 3–18 mm
- Pipe locking
- Yes
- Pipe locking optional
- Yes
- Inlet from the rear
- Yes
- Number of inlets
- 2
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Orange
- Degree of protection (IP)
- IP20
- Cover model
- None
- Transparent cover
- No
- Cover attachment
- Screwed
- Sealable
- No
- With screening
- No
- Air tight
- Yes
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4013456551022
- SAP 1200880342
- Code 84128351
Product Documentation
