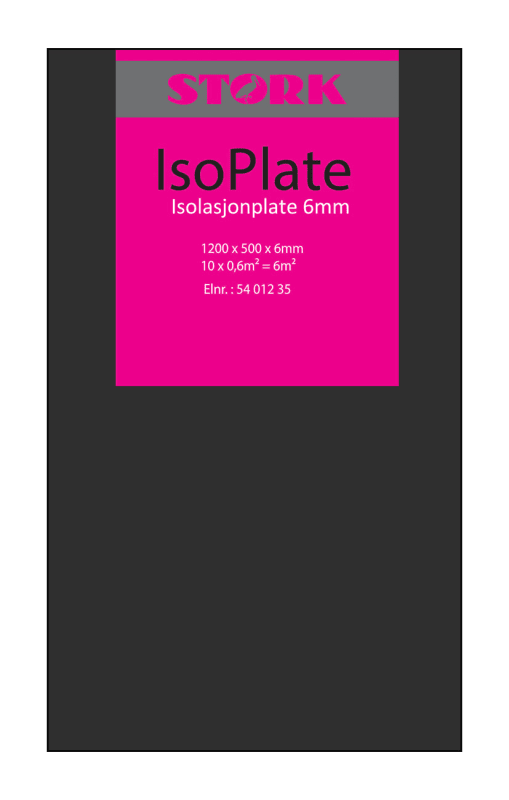

IsoPlate Insulation Plate 1200X500X6MM

Stork 104053 Iso-floor Insulation Plate - length 1,2m, width 0,5m, thickness 6mm, Black.

Manufacturer part number (MPN)

104053 EAN / GTIN: 5907584870539 Sales unit: pcs Package quantity: 10 pcs Thermal insulation: Yes Acoustic insulation: No Suitable for pitched roof: No Suitable for wall: No Suitable for facade: No Suitable for ceiling: No Suitable for floor: Yes Suitable for floor mounting: Yes Suitable for underground installation: No Suitable for duct mounting: No material: Extruded polystyrene (XPS) Model: Plate Upholstery front/top vapor-tight: No material upholstery front/top: None Upholstery rear/bottom damp proof: No material upholstery rear/bottom: None With nail flange (reinforced fixation strip): No With decorative finish: No Length: 1200 mm Width: 500 mm Thickness: 6 mm With fall: No Fall: 0 mm/m Edge finish: Straight Thermal conductivity: 0.03 W/(m.K) Heat resistance Rd: 0.215 (m².K)/W Density: 40 kg/m³ Operating temperature: -60–60 °C With angle fillet: No Self-adhesive: No Euro fire class according to EN 13501-1: F Compressive strength short-term load: 400 kN/m² Compressive strength long-term load: 400 kN/m² Suitable for tube mounting: No Suitable for flat roof: No

HS Code

8516.80

• EAN 5907584870539
• SAP 1200610529
• Code 83014099
