Stork
Fire wall box red single grunn
Part number9463-03EAN / GTIN4013456578593HS code3917.40
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

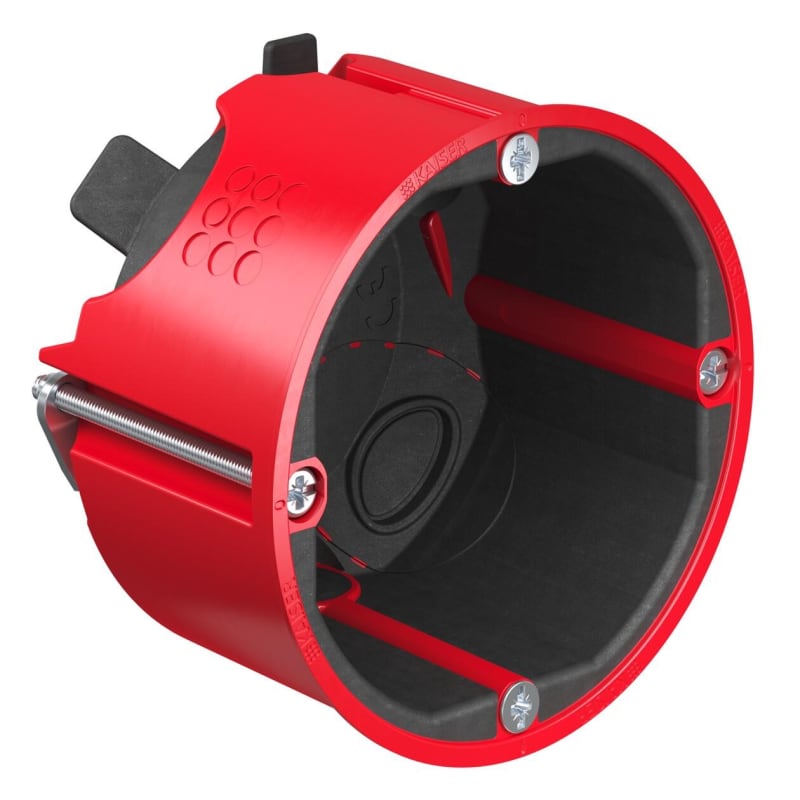

Stork 9463-03 Fire wall box red single grunn.
Technical Specifications
- Manufacturer part number (MPN)
- 9463-03
- EAN / GTIN
- 4013456578593
- Sales unit
- pack
- Package quantity
- 10 pack
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Cable junction box
- Model
- Single
- Provided with revolving ring
- No
- Couplable
- Yes
- Diameter
- 68 mm
- Length
- 49 mm
- Width
- 68 mm
- Inner depth
- 49 mm
- Suitable for wall/board thickness
- 7–40 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- Yes
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- For tube diameter
- 20/25 mm
- Suitable for cable diameter
- 5–13 mm
- Pipe locking
- No
- Pipe locking optional
- No
- Inlet from the rear
- No
- Number of inlets
- 5
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Red
- Degree of protection (IP)
- IP30
- Cover model
- None
- Transparent cover
- No
- Cover attachment
- Screwed
- Sealable
- No
- With screening
- No
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 4013456578593
- SAP 1200880339
- Code 84128354
Product Documentation
Document preview: Fire wall box red single grunn (9463-03) — Specification sheet
