Product Description

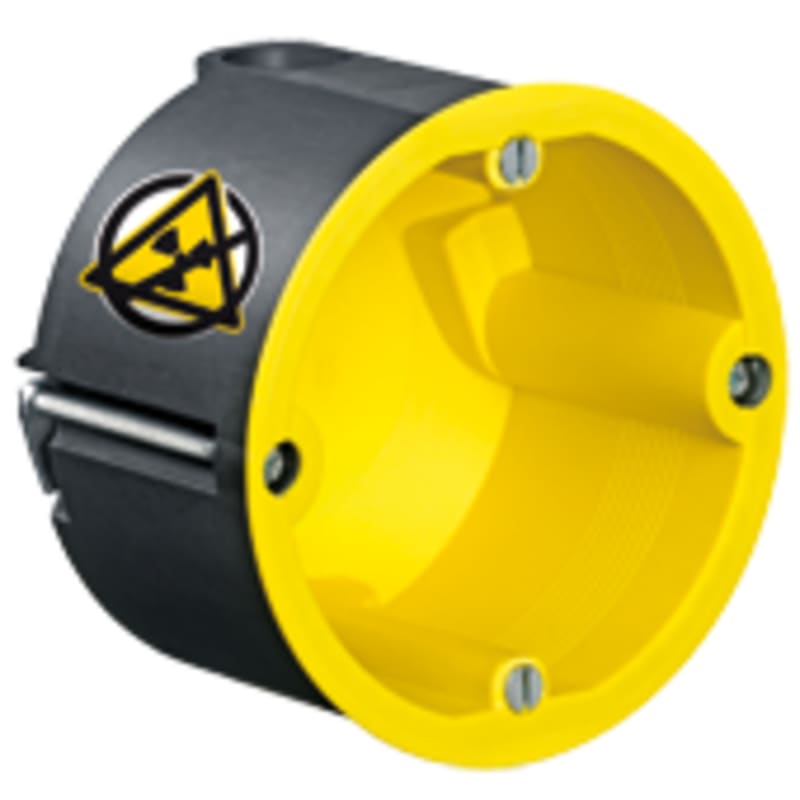

Round flush-mount installation box for a single wiring device, moulded in halogen-free yellow plastic with a nozzle-type cable entry. The 74 mm diameter box has 58.5 mm outer depth and 44 mm inner depth, is suitable for wall thicknesses from 7 to 40 mm and accepts cables of 9.5 to 10.5 mm. Screw fixing lugs and screening are integrated; degree of protection is IP3X. Typical application is standard flush-mounting of switches, sockets or dimmers in solid-wall construction.
Technical Specifications
- Manufacturer part number (MPN)
- 9074-01
- EAN / GTIN
- 4013456537187
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Number of non-adjustable device fixing lugs
- 2
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Built-in installation box (device box)
- Model
- Single
- Provided with revolving ring
- No
- Couplable
- Yes
- Equipped with
- None
- Diameter
- 74 mm
- Depth
- 58.5 mm
- Inner depth
- 44 mm
- Suitable for wall/board thickness
- 7–40 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- No
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- Suitable for cable diameter
- 9.5–10.5 mm
- Pipe locking
- No
- Pipe locking optional
- No
- Inlet from the rear
- No
- Number of inlets
- 4
- Halogen free
- Yes
- Colour
- Yellow
- Degree of protection (IP)
- IP3X
- Sealable
- No
- Circuit integrity
- None
- With screening
- Yes
- Air tight
- No
- Luminaire hook mounting
- No
- Nozzle
- Tunnel branch pipe
- With nail lugs
- No
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 4013456537187
- SAP 1200013575
- Code 81383984
