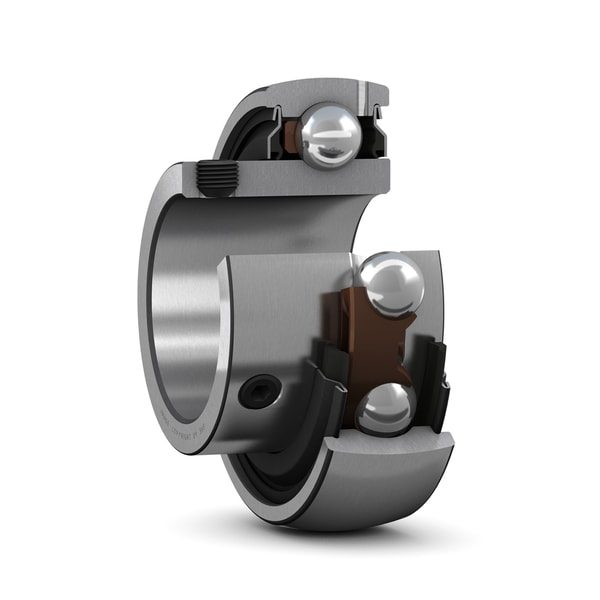

SKF YAT203-008 Insert bearing (YAR / YET / YSA / YEL)

SKF YAT203-008 insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YAT203-008

HS code

8482.10

Shaft diameter

12.7 mm

Bore diameter

12.7 mm

Outside diameter

40 mm

Width, total

22.1 mm

Width, inner ring

22.1 mm

Width, outer ring

12 mm

Basic dynamic load rating

9.56 kN

Basic static load rating

4.75 kN

Limiting speed

9500 r/min

Note

Limiting speed with shaft tolerance h6

Retaining feature, inner ring

Set screws

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

On one side

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal on both sides

Sealing type

Contact, standard

Lubricant

Grease

Relubrication feature

With

Product net weight

0.1 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 203008
• NSK 203008
• FAG 203008
• Koyo 203008
• ASAHI 203008
• Equivalent: 203008 (NTN)
• Equivalent: 203008 (NSK)
• Equivalent: 203008 (FAG)
• Equivalent: 203008 (Koyo)
• Equivalent: 203008 (ASAHI)
