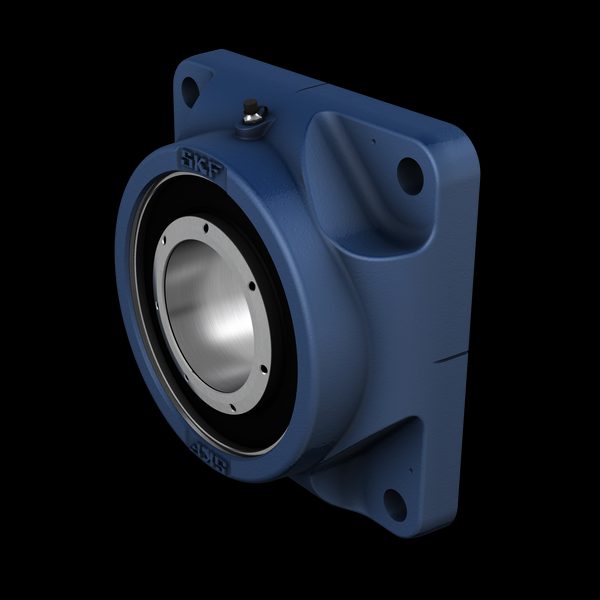

SKF FYNT75L Roller-bearing flanged unit
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF FYNT75L roller-bearing flanged unit. Round or square-flanged cast-iron housing pre-assembled with a spherical roller bearing on adapter sleeve, bolted to a machined face perpendicular to the shaft axis. Four-bolt round (FYNT / FRT) or four-bolt square execution.
Technical Specifications
- Type
- Roller-bearing flanged unit
- Designation
- SKF FYNT75L
- HS code
- 8483.20
- Shaft diameter
- 75 mm
- Housing overall width
- 82 mm
- Width, total
- 81.3 mm
- Centre distance between bolt holes
- 170 mm
- Attachment bolt diameter
- 16 mm
- Bearing width, total
- 72 mm
- Basic dynamic load rating
- 212 kN
- Basic static load rating
- 240 kN
- Limiting speed
- 2500 r/min
- Housing type
- Flanged
- Flanged housing type
- Square
- Number of bolt holes for fasteners
- 4
- Bearing insert
- Spherical roller bearing
- Retaining feature, inner ring
- SKF ConCentra
- Bearing position
- Non-locating
- Bore type
- Cylindrical
- Material, housing
- Cast iron
- Material, bearing
- Bearing steel
- Coating
- Without
- Bearing housing seal type
- Radial lip seal
- Sealing, unit
- Optional end cover
- Lubricant
- Grease
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 12.3 kg
- eClass code
- 23-05-16-90
- UNSPSC code
- 31171537
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF SNP148X8.1/2 Adapter sleeve
SKF
SKF KDN.K20013XP0 Thin-section ball bearing (Reali-Slim)
SKF
SKF PSM222720A51 Plain sleeve bushing
SKF
SKF OR20.29X2.62-N70 O-ring / back-up ring
SKF
SKF SYNT55FTS Roller-bearing pillow-block unit
SKF
SKF RGR36X42X10-PF Hydraulic guide ring / wear ring / bearing strip
SKF
SKF PHC160SHH-1C/L Roller chain
SKF
SKF PHFTB4545X3.375 Taper bushing
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy FYNT75L?
- FYNT75L can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is FYNT75L.
- What is the HS code for FYNT75L?
- The customs tariff (HS) code for FYNT75L is 8483.20.
- Who manufactures FYNT75L?
- FYNT75L is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for FYNT75L?
- Yes — the FYNT75L datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for FYNT75L?
- The minimum order quantity is 1.
- Is FYNT75L available?
- Yes — FYNT75L is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
