SKF NN3024KTN9/VQ497 Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF NN3024KTN9/VQ497 super-precision cylindrical roller bearing (nn 30xx / n 10xx). Super-precision (ISO 492 P4A / P2A) double-row (NN 30xx) or single-row (N 10xx) cylindrical roller bearing designed as the non-locating position on a machine-tool spindle. Very high radial rigidity and running accuracy. Tapered bore (K suffix) allows radial preload to be set at assembly. Fitted with a machined brass cage.
Technical Specifications
- Type
- Super-precision cylindrical roller bearing (NN 30xx / N 10xx)
- Designation
- SKF NN3024KTN9/VQ497
- Bore d
- 120 mm
- HS code
- 8482.20
- Bore diameter
- 120 mm
- Outside diameter
- 180 mm
- Width
- 46 mm
- Basic dynamic load rating
- 229 kN
- Basic static load rating
- 390 kN
- Attainable speed for grease lubrication
- 4800 r/min
- Attainable speed for oil-air lubrication
- 5300 r/min
- Bearing part
- Complete bearing
- Number of rows
- 2
- Bore type
- Tapered 1:12
- Cage
- Non-metallic
- Design
- NN
- Number of flanges, outer ring
- 0
- Number of flanges, inner ring
- 3
- Loose flange
- None
- Radial internal clearance
- NSTD
- Tolerance class
- Class SP (SP)
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 13.6 kg CO2e
- Product net weight
- 3.67 kg
- eClass code
- 23-05-09-01
- UNSPSC code
- 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 30249497
- NSK 30249497
- GMN 30249497
- Timken 30249497
- Koyo 30249497
- Equivalent: 30249497 (FAG)
- Equivalent: 30249497 (NSK)
- Equivalent: 30249497 (GMN)
- Equivalent: 30249497 (Timken)
- Equivalent: 30249497 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF STO30 Track roller — support roller
SKF
SKF P2BC25M-TPSS Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF PHFFX41-85X125 Keyless shaft bushing / locking assembly
SKF
SKF SI8E Rod end (spherical plain bearing with threaded eye)
SKF
SKF TSD3044U SNL 30/31/32 split pillow-block housing
SKF

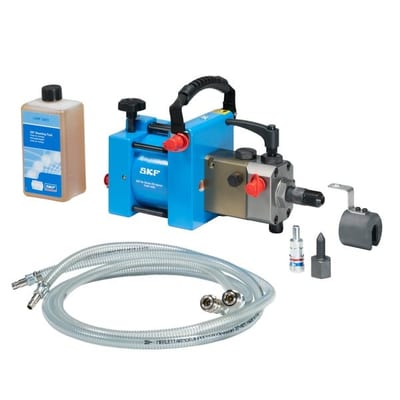

SKF THAP400E Hydraulic bearing mounting / dismounting tool
SKF
SKF 354.5X392X38DFCR60 Metal face seal (Duo-Cone / mud seal)
SKF

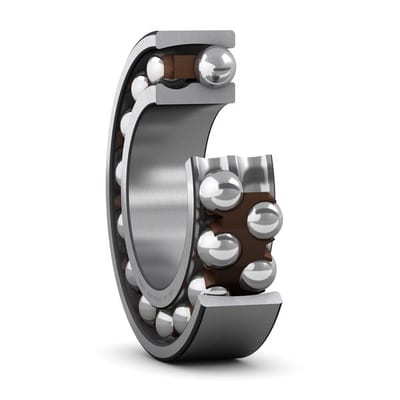

SKF 2207EKTN9/C3 Self-aligning ball bearing (12XX / 13XX / 22XX)
