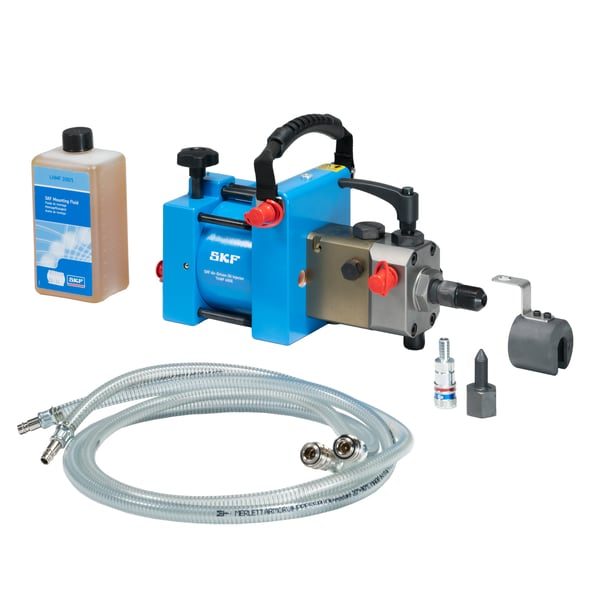

SKF THAP400E Hydraulic bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF THAP400E hydraulic bearing mounting / dismounting tool. Hydraulic pump, oil injector, or hydraulically-driven nut used to mount a large tapered-bore bearing to its correct radial internal clearance, and to dismount it without shaft damage. SKF HMV-E hydraulic nut, TMHP / THAP pump, or SKF Drive-up-Method oil-pressure kit.
Technical Specifications
- Type
- Hydraulic bearing mounting / dismounting tool
- Designation
- SKF THAP400E
- HS code
- 8412.29
- Dimensions (W x L x H)
- 171 x 405 x 202 mm
- Case dimensions (l x h x w)
- 690 x 245 x 310 mm
- Maximum pressure
- 4000 bar
- Maximum pressure (MPa)
- 400 MPa
- Recommended applications
- OK Couplings;Large pressure joints;Oil injection for large gears and railway wheels
- Volume per stroke
- 0.64 ml
- Air pressure limiter
- 7 bar
- Air consumption
- 200 l/min
- Pressure ratio
- 1:667
- Pressure gauge
- Optional
- Oil container
- No
- Oil outlet thread
- G 3/4
- Oil viscosity (maximum)
- 1500 mm²/s
- Housing material
- Aluminium;Alloy tool steel
- Colour
- Blue;Metallic grey
- Content
- Air driven pump 400 MPa;2x Low pressure hoses with couplings (1.5 m);Air hose coupling(f);Mounting fluid (1 ltr);Instructions for use;Carrying case
- Country of Manufacturing (COM code)
- 11 - Sweden
- Product net weight
- 20.9 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27112908
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8412.29
Cross References
- Enerpac 400
- Simatec 400
- Equivalent: 400 (Enerpac)
- Equivalent: 400 (Simatec)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
