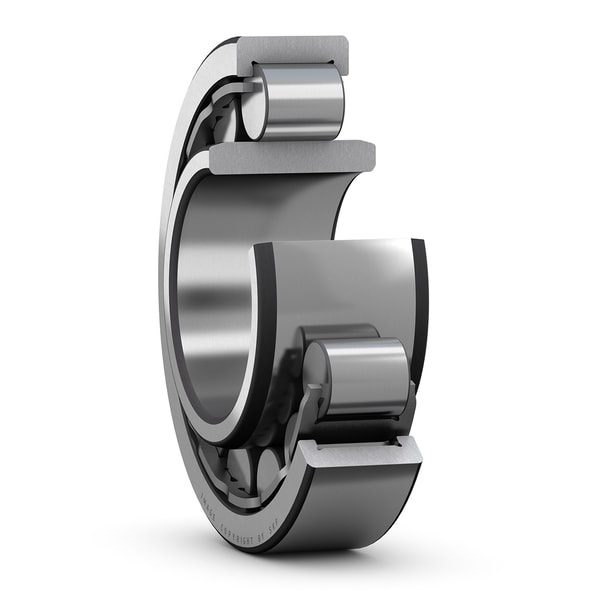

SKF BC1-0547B Cylindrical roller bearing

SKF BC1-0547B cylindrical roller bearing. Single-row cylindrical roller bearing carrying very heavy radial load and moderate speed. Standard NU, N, NJ and NUP designs differ only in whether the rib is on inner ring, outer ring, or both — this sets the axial-guidance capability (NU floats axially, NJ takes axial in one direction, NUP in both). Cage execution ECP (glass-fibre reinforced polyamide 6.6) is standard up to bore 100 mm; ECM (machined brass) above. ISO 492 Class Normal. Bore diameter d = 235 mm per ISO 15.

Type

Cylindrical roller bearing

Designation

SKF BC1-0547B

Standard

ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision

HS code

8482.20

Bore diameter

50 mm

Outside diameter

90 mm

Width

30 mm

Basic dynamic load rating

73.5 kN

Basic static load rating

69.5 kN

Reference speed

7500 r/min

Limiting speed

9000 r/min

Bearing part

Complete bearing

Axial displacement capability

In both directions

Number of rows

1

Locating feature, bearing outer ring

Without

Bore type

Cylindrical

Cage

Machined brass

Inner ring extension

On both sides

Number of flanges, outer ring

2

Number of flanges, inner ring

0

Loose flange

None

Radial internal clearance

C3

Tolerance class

Normal

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Indicative carbon footprint for new product

2.3 kg CO2e

Product net weight

0.619 kg

eClass code

23-05-09-01

UNSPSC code

31171505

Standard

ISO 15 / ISO 492 / DIN 623

Material

Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix

Temperature Range

-30 to +120 °C standard grease

HS Code

8482.20

• Timken 10547
• NSK 10547
• NTN 10547
• FAG 10547
• Koyo 10547
• Equivalent: 10547 (Timken)
• Equivalent: 10547 (NSK)
• Equivalent: 10547 (NTN)
• Equivalent: 10547 (FAG)
• Equivalent: 10547 (Koyo)
