SKF BD1B242943 Thrust ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF BD1B242943 thrust ball bearing. Single-direction (51xxx) or double-direction (52xxx) thrust ball bearing designed to carry pure axial load at moderate speed. Cannot carry radial load. Series 511/512/513/514 covers the standard boundary plans. Manufactured to ISO 104 / ISO 492 Class Normal. Bore diameter d = 215 mm per ISO 15.
Technical Specifications
- Type
- Thrust ball bearing
- Designation
- SKF BD1B242943
- Standard
- ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision
- HS code
- 8482.10
- Bore diameter
- 45.2 mm
- Outside diameter
- 65 mm
- Height
- 10.74 mm
- Basic dynamic load rating
- 22.9 kN
- Basic static load rating
- 56 kN
- Reference speed
- 5300 r/min
- Limiting speed
- 7500 r/min
- Axial load capability
- Single-direction
- Number of rows
- 1
- Cage
- Sheet metal
- Housing washer type
- Flat
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Indicative carbon footprint for new product
- 0.4 kg CO2e
- Product net weight
- 0.107 kg
- eClass code
- 23-05-10-01
- UNSPSC code
- 31171507
Standards & Compliance
- Standard
- ISO 15 / ISO 492 / DIN 623
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Temperature Range
- -30 to +120 °C standard grease
- HS Code
- 8482.10
Cross References
- Timken 1242943
- NSK 1242943
- NTN 1242943
- FAG 1242943
- Koyo 1242943
- Equivalent: 1242943 (Timken)
- Equivalent: 1242943 (NSK)
- Equivalent: 1242943 (NTN)
- Equivalent: 1242943 (FAG)
- Equivalent: 1242943 (Koyo)
Compatibility & Fitment
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
Product Documentation
More from SKF
SKF
SKF BS2-2205-2RS/GFP9VA944 Spherical roller bearing
SKF
SKF BS2-2205-2RS/VT143 Spherical roller bearing
SKF
SKF BS2-2206-2RS/GEN6 Spherical roller bearing
SKF
SKF BS2-2206-2RS/GFP9VA944 Spherical roller bearing
SKF
SKF BS2-2206-2RS/VT143 Spherical roller bearing
SKF
SKF BS2-2206-2RS/VT1898 Spherical roller bearing
SKF
SKF BS2-2206-2RS5/GWZ Spherical roller bearing
SKF

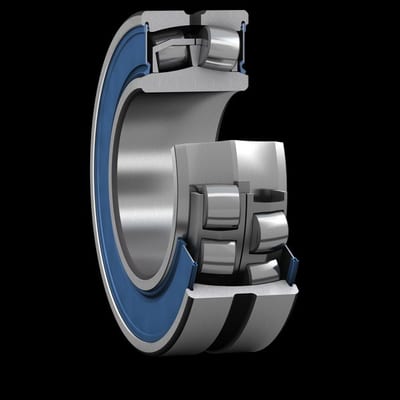

SKF BS2-2207-2RS/GFP9VA944 Spherical roller bearing
