SKF AOH3260G Withdrawal sleeve
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF AOH3260G withdrawal sleeve. Tapered sleeve installed between a stepped shaft shoulder and a tapered-bore bearing, then pushed on by a lock nut against the shaft shoulder. Designed to dismount the bearing hydraulically (oil-injection groove and thread) — no puller required. Standard series AH / AHX. Dimensioned to ISO 113.
Technical Specifications
- Type
- Withdrawal sleeve
- Designation
- SKF AOH3260G
- HS code
- 8483.30
- Bore diameter
- 280 mm
- Width
- 228 mm
- Thread designation
- Tr 320x5
- Taper
- 1:12
- Holes for oil injection
- With
- Product net weight
- 22.1 kg
- eClass code
- 23-11-07-05
- UNSPSC code
- 31163218
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- FAG 3260
- NSK 3260
- Timken 3260
- NTN 3260
- Koyo 3260
- Equivalent: 3260 (FAG)
- Equivalent: 3260 (NSK)
- Equivalent: 3260 (Timken)
- Equivalent: 3260 (NTN)
- Equivalent: 3260 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

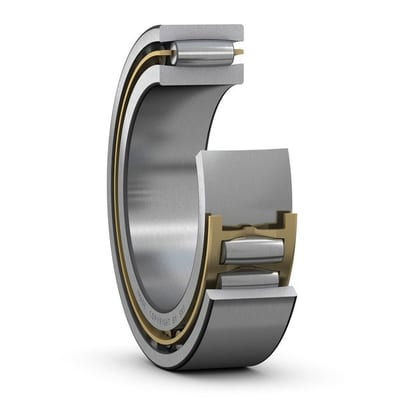

SKF C3136 CARB toroidal roller bearing (C xxxx)
SKF

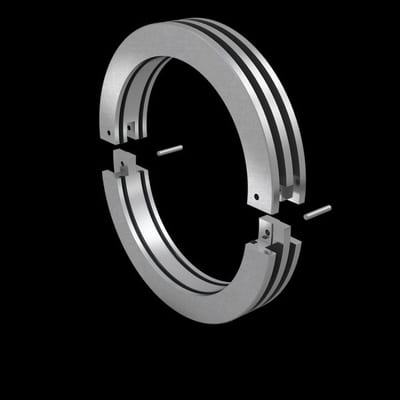

SKF COP.ATL408 Cooper split roller bearing
SKF
SKF F2BM107-TF-AH Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

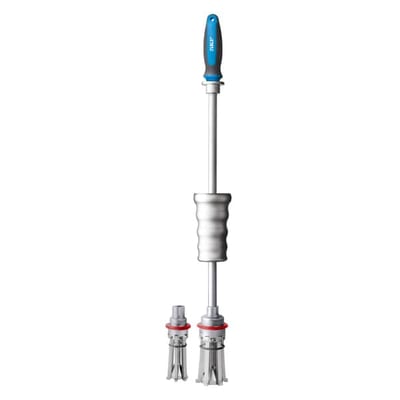

SKF TMIP30-60 Internal bearing puller
SKF
SKF IR90X105X63 Needle roller bearing component (inner ring / cage assembly / individual roller)
SKF
SKF K65X73X23 Needle roller and cage assembly (K / KBK / KZK)
SKF
SKF NN3022KTN3/SPW33 Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
SKF
SKF RSTO30 Track roller — support roller
Technical guides
- Adapter Sleeve and Withdrawal Sleeve Finder — H 2xx / H 3xx, HA, HE, OH, SNW (inch), AH / AHX / AOH by Shaft Diameter (SKF)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AOH3260G?
- AOH3260G can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is AOH3260G.
- What is the HS code for AOH3260G?
- The customs tariff (HS) code for AOH3260G is 8483.30.
- Who manufactures AOH3260G?
- AOH3260G is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for AOH3260G?
- Yes — the AOH3260G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AOH3260G?
- The minimum order quantity is 1.
- Is AOH3260G available?
- Yes — AOH3260G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
