SKF AHX319 Withdrawal sleeve
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF AHX319 withdrawal sleeve. Tapered sleeve installed between a stepped shaft shoulder and a tapered-bore bearing, then pushed on by a lock nut against the shaft shoulder. Designed to dismount the bearing hydraulically (oil-injection groove and thread) — no puller required. Standard series AH / AHX. Dimensioned to ISO 113.
Technical Specifications
- Type
- Withdrawal sleeve
- Designation
- SKF AHX319
- HS code
- 8483.30
- Bore diameter
- 90 mm
- Width
- 57 mm
- Thread designation
- M 105x2
- Taper
- 1:12
- Holes for oil injection
- Without
- Product net weight
- 0.52 kg
- eClass code
- 23-11-07-05
- UNSPSC code
- 31163218
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- FAG 319
- NSK 319
- Timken 319
- NTN 319
- Koyo 319
- Equivalent: 319 (FAG)
- Equivalent: 319 (NSK)
- Equivalent: 319 (Timken)
- Equivalent: 319 (NTN)
- Equivalent: 319 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF C2316K CARB toroidal roller bearing (C xxxx)
SKF

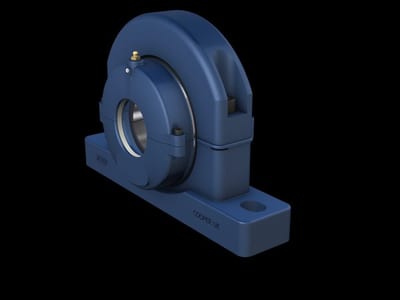

SKF COP.01CP2EX01 Cooper split roller bearing
SKF
SKF F2B203-TF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

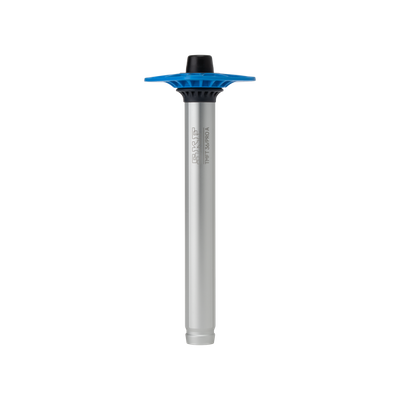

SKF TMFT36/PROA Bearing mounting / dismounting tool
SKF
SKF IR30X37X22 Needle roller bearing component (inner ring / cage assembly / individual roller)
SKF
SKF K25X35X30 Needle roller and cage assembly (K / KBK / KZK)
SKF

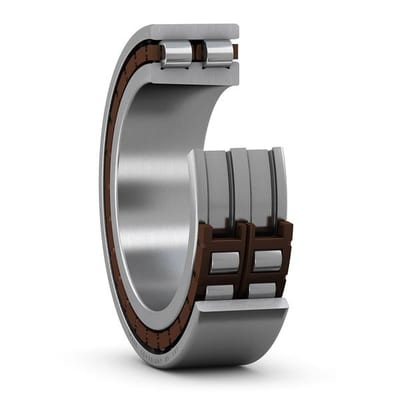

SKF NN3011TN/SP Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
