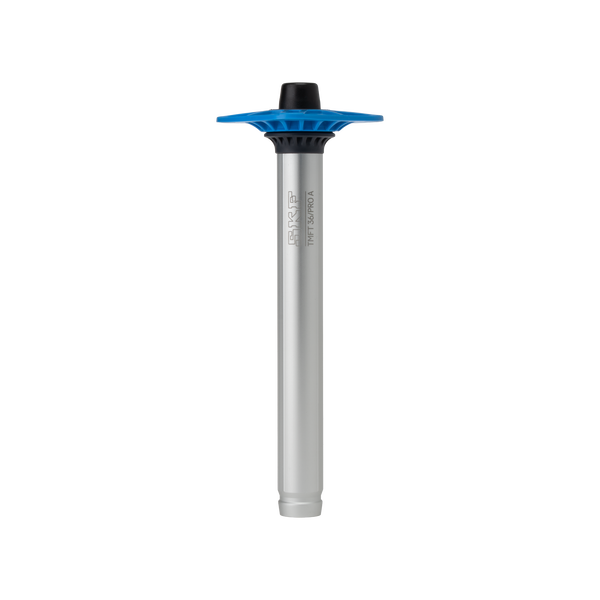

SKF TMFT36/PROA Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMFT36/PROA bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMFT36/PROA
- HS code
- 8205.59
- Sleeve outer lengths
- A, 228 mm; B, 235 mm; C, 245 mm
- Sleeve, outer diameter
- A, 25 mm; B, 45 mm; C, 66 mm
- Hammer length
- 315 mm
- Hammer width
- 115 mm
- Case dimensions (l x h x w)
- 530 x 110 x 360 mm
- Recommended applications
- For manual mounting of bearings, bushings, seals, rings, pulleys in industrial, construction and agricultural applications
- Mounting force generation
- Hammer
- Suitable for workpiece mounting on a Cylindrical seating (straight shaft)
- Yes
- Suitable for bearing mounting on a Tapered seating (conical shaft)
- Not recommended
- Suitable for bearing mounting on a Sleeve (adapter or withdrawal)
- Not recommended
- Suitable for workpiece mounting in a Blind arrangement (housing with shaft)
- Yes
- Suitable for workpiece mounting in a Housing
- Yes
- Mounting depth
- A, 221 mm; B, 221 mm; C, 226 mm
- Provided with Handprotectors
- No
- Models of rings
- Three, named A,B,C
- Number of rings
- 36
- Ring material
- Impact resistant polyamide (PA)
- Number of sleeves
- 3x, named A,B,C
- Sleeve material
- Glassfiber filled polyamide (PA)
- Hammer type
- Deadblow hammer
- Hammer weight
- 0.9 kg
- Hammerhead
- Sturdy polyurethane (PU) preventing damage to the sleeve heads
- Hammer material
- Steel, PU
- Content
- 12x Impact rings A;12x Impact rings B;12x Impact rings C;1x Impact sleeve A;1x Impact sleeve B;1x Impact sleeve C;1x Hammer;1x printed instructions for use;1x Carrying case (size C)
- Country of Manufacturing (COM code)
- 20 - Poland
- Product net weight
- 4.53 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27113202
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
