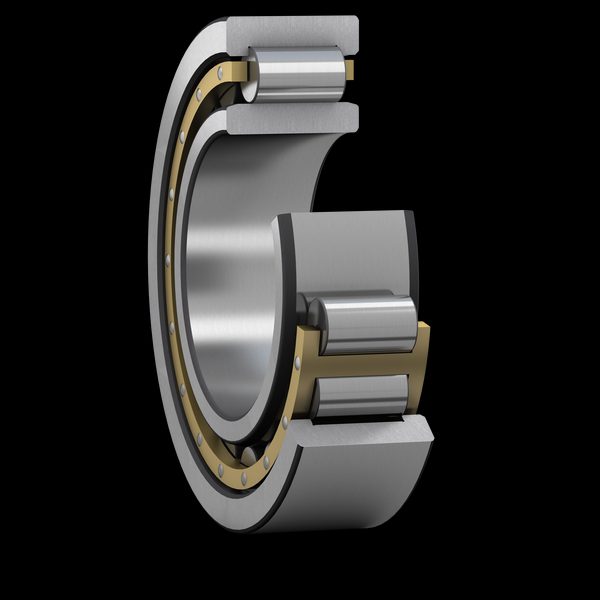

SKF 313221 Cylindrical roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 313221 cylindrical roller bearing. Single-row cylindrical roller bearing carrying very heavy radial load and moderate speed. Standard NU, N, NJ and NUP designs differ only in whether the rib is on inner ring, outer ring, or both — this sets the axial-guidance capability (NU floats axially, NJ takes axial in one direction, NUP in both). Cage execution ECP (glass-fibre reinforced polyamide 6.6) is standard up to bore 100 mm; ECM (machined brass) above. ISO 492 Class Normal. Bore diameter d = 105 mm per ISO 15.
Technical Specifications
- Type
- Cylindrical roller bearing
- Designation
- SKF 313221
- Standard
- ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision
- HS code
- 8482.20
- Bore diameter
- 240 mm
- Outside diameter
- 440 mm
- Width
- 120 mm
- Basic dynamic load rating
- 1570 kN
- Basic static load rating
- 2500 kN
- Reference speed
- 1500 r/min
- Limiting speed
- 1700 r/min
- Bearing part
- Complete bearing
- Axial displacement capability
- In both directions
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Machined brass
- Number of flanges, outer ring
- 2
- Number of flanges, inner ring
- 0
- Loose flange
- None
- Radial internal clearance
- C3R
- Tolerance class
- Normal
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Candidate for remanufacturing
- Yes
- Indicative carbon footprint for new product
- 311 kg CO2e
- Indicative carbon footprint for remanufactured product
- 103 kg CO2e
- Product net weight
- 84 kg
- eClass code
- 23-05-09-01
- UNSPSC code
- 31171505
Standards & Compliance
- Standard
- ISO 15 / ISO 492 / DIN 623
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Temperature Range
- -30 to +120 °C standard grease
- HS Code
- 8482.20
Cross References
- Timken 313221
- NSK 313221
- NTN 313221
- FAG 313221
- Koyo 313221
- Equivalent: 313221 (Timken)
- Equivalent: 313221 (NSK)
- Equivalent: 313221 (NTN)
- Equivalent: 313221 (FAG)
- Equivalent: 313221 (Koyo)
Compatibility & Fitment
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
