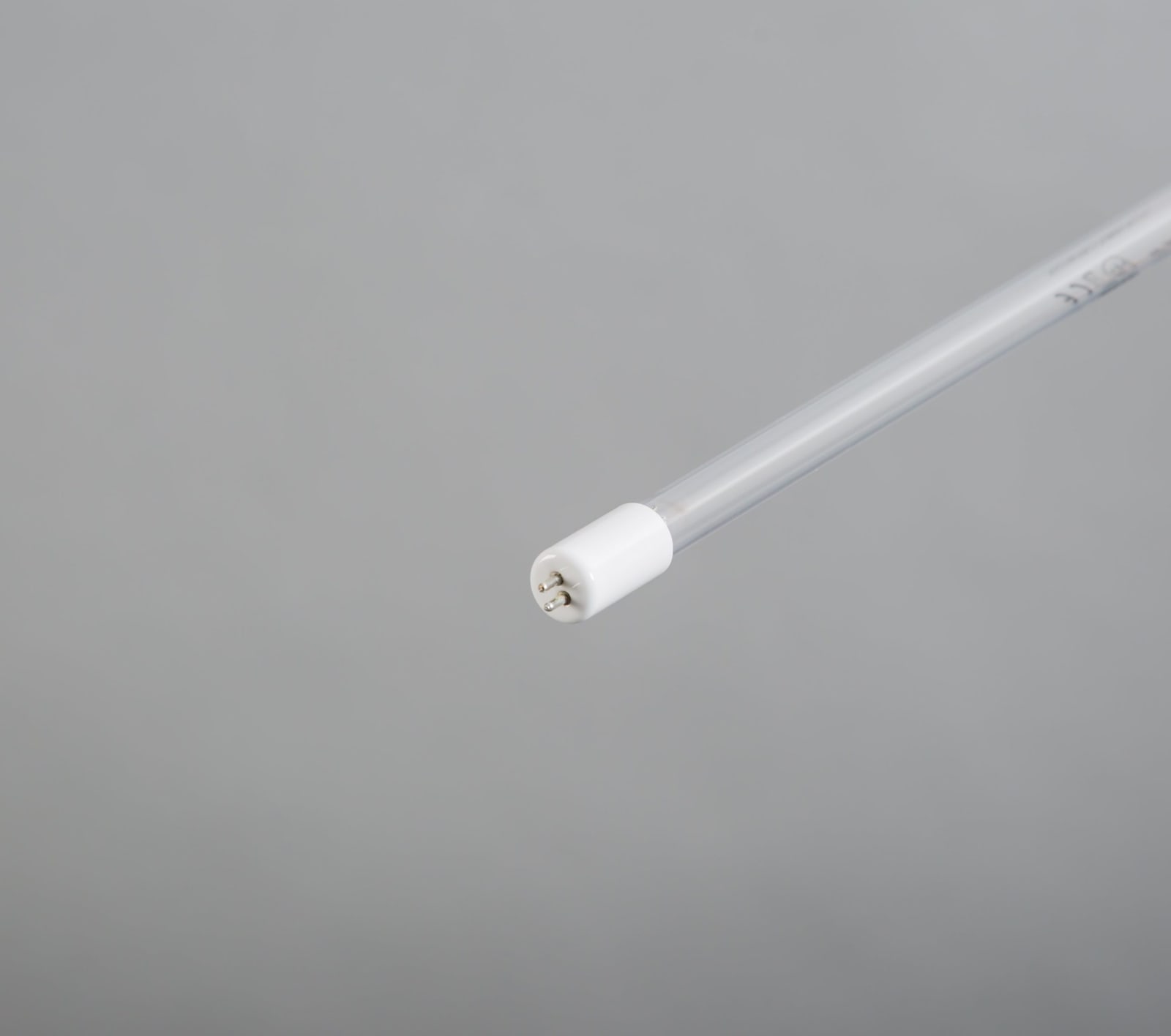

Replacement UV Lamp for SITA 028205, 1555 mm

Replacement UV Lamp for SITA 028205, 1555 mm, article 3814-0810. Data: overall length 1555 mm, tube diameter 15.5 mm. OEM reference: 028205 / SI028205. Supplied as a replacement part made to the dimensions and electrical data of the original; the OEM reference is given for identification. Low-pressure and amalgam UV lamps emit at 253.7 nm. Output falls over the service life; the lamp is replaced at the rated hours or when the UV intensity alarm cannot be cleared by cleaning the quartz sleeve. Handle the lamp by its ends with clean gloves, as fingerprints burn into the quartz. The lamp contains mercury and is disposed of as hazardous waste under local regulations. Spare part for UV disinfection systems of S.I.T.A. srl, Genoa, Italy, which builds low-pressure, amalgam and medium-pressure UV units for drinking water, food and beverage, aquaculture, swimming pool, marine and wastewater duty (series AL, LCD / Rack LCD, AM, IT, 440, HDPE, SBT, SMP, SSD, TOC, GR and Pool).

Part number

028205

Article number

3814-0810

OEM reference

028205 / SI028205

System manufacturer

S.I.T.A. srl (SITA UV), Italy

Component type

UV disinfection lamp, low pressure

Lamp type

Low pressure, 253.7 nm

Overall length

1555 mm

Tube diameter

15.5 mm

Supply

Replacement part, equivalent to the OEM reference

HS code

8539.49

HS Code

8539.49

• Article 3814-0810
• SITA 028205
• SITA SI028205
