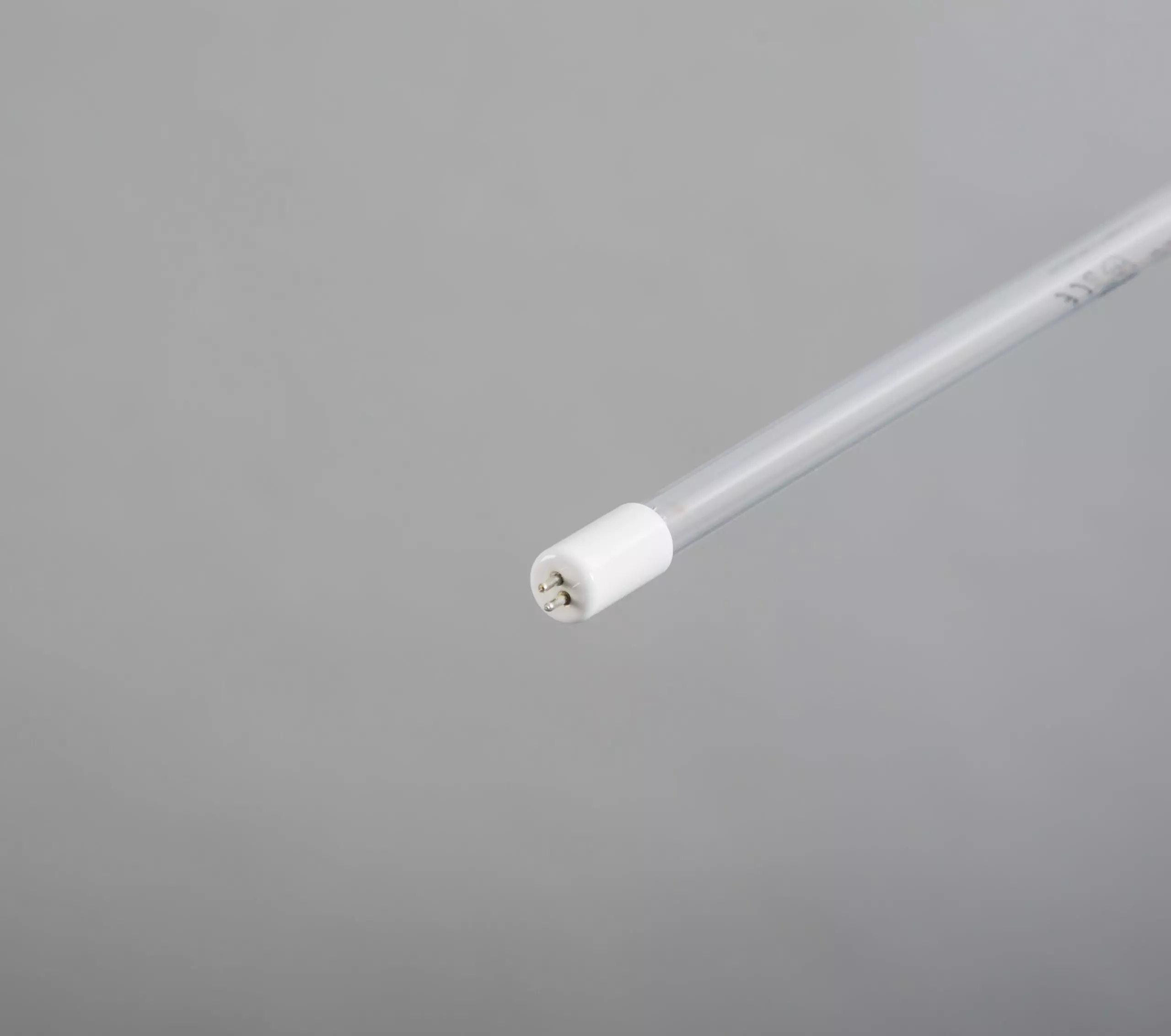

Replacement UV Lamp for SITA 028205, 1555 mm (3814-0810)

SITA · Electrochlorination & Water Treatment · UV Lamps · Italy · sitauv.com
Part Number
028205  ·  HS 8539.49
Replacement UV Lamp for SITA 028205, 1555 mm (3814-0810)

Replacement UV Lamp for SITA 028205, 1555 mm, article 3814-0810. Data: overall length 1555 mm, tube diameter 15.5 mm. OEM reference: 028205 / SI028205. Supplied as a replacement part made to the dimensions and electrical data of the original; the OEM reference is given for identification. Low-pressure and amalgam UV lamps emit at 253.7 nm. Output falls over the service life; the lamp is replaced at the rated hours or when the UV intensity alarm cannot be cleared by cleaning the quartz sleeve. Handle the lamp by its ends with clean gloves, as fingerprints burn into the quartz. The lamp contains mercury and is disposed of as hazardous waste under local regulations. Spare part for UV disinfection systems of S.I.T.A. srl, Genoa, Italy, which builds low-pressure, amalgam and medium-pressure UV units for drinking water, food and beverage, aquaculture, swimming pool, marine and wastewater duty (series AL, LCD / Rack LCD, AM, IT, 440, HDPE, SBT, SMP, SSD, TOC, GR and Pool).

Technical Specifications

Part number028205
Article number3814-0810
OEM reference028205 / SI028205
System manufacturerS.I.T.A. srl (SITA UV), Italy
Component typeUV disinfection lamp, low pressure
Lamp typeLow pressure, 253.7 nm
Overall length1555 mm
Tube diameter15.5 mm
SupplyReplacement part, equivalent to the OEM reference
HS code8539.49

Properties

MOQ1

Compatibility

Confirm fit against the UV system model and serial number.
