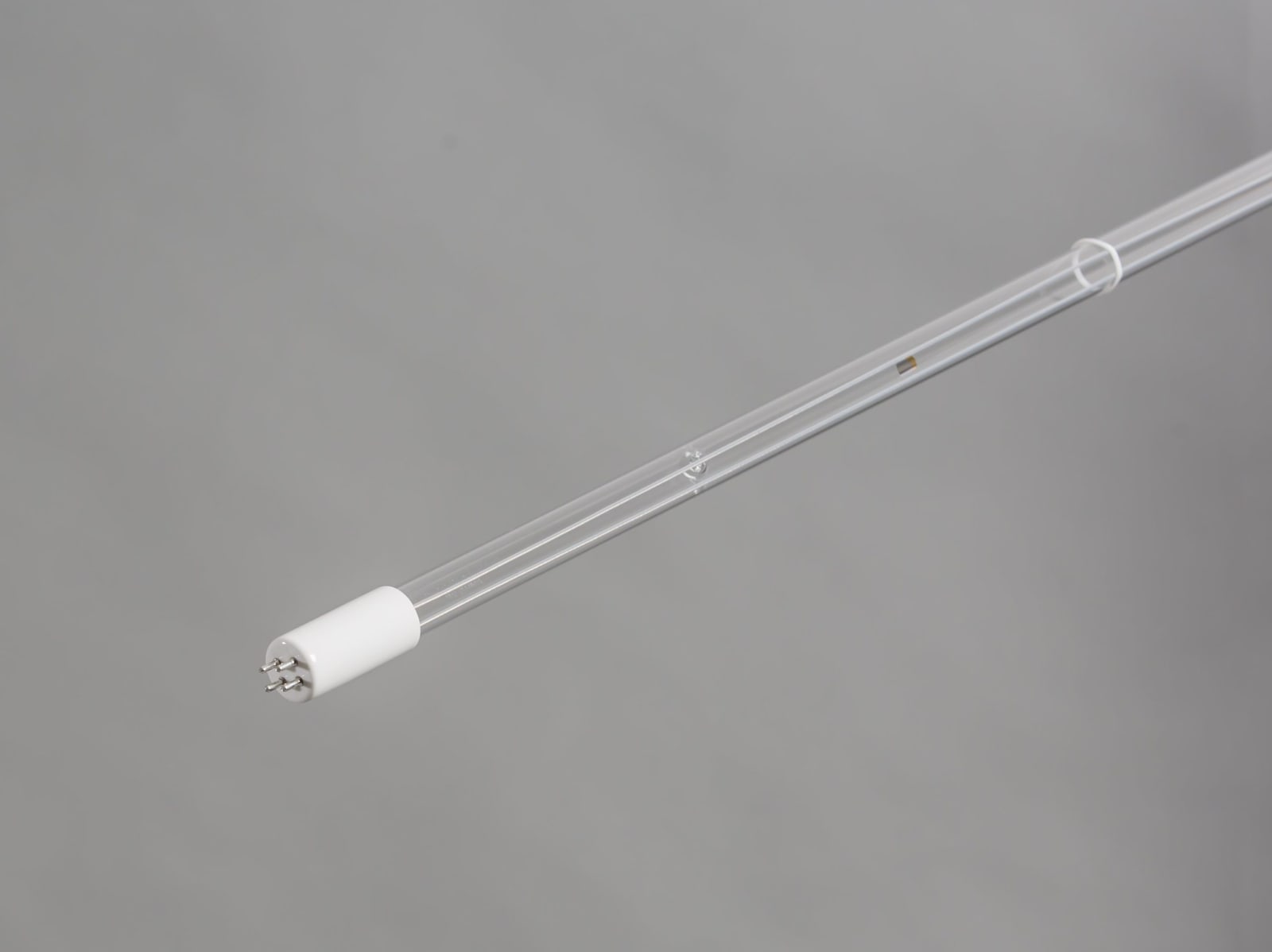

Replacement UV Lamp for SITA SI0028124, 80 W, 843 mm

Replacement UV Lamp for SITA SI0028124, 80 W, 843 mm, article 3801-0607. Data: lamp power 80 W, overall length 843 mm, tube diameter 15 mm, rated life 9,000 h. OEM reference: SI0028124 / 028124 / 28124. Fits: SITA UV PE 22, SITA SRL 80/8, SITA UV Rack 80/1, SITA UV Rack 80/2, SITA UV Rack 80/3, SITA UV Rack 80/4, SITA UV Rack 80/5, SITA LCD 450, SITA LCD 550. Runs in quartz sleeve SI028105 (900 mm). Supplied as a replacement part made to the dimensions and electrical data of the original; the OEM reference is given for identification. Low-pressure and amalgam UV lamps emit at 253.7 nm. Output falls over the service life; the lamp is replaced at the rated hours or when the UV intensity alarm cannot be cleared by cleaning the quartz sleeve. Handle the lamp by its ends with clean gloves, as fingerprints burn into the quartz. The lamp contains mercury and is disposed of as hazardous waste under local regulations. SITA LCD / Rack LCD series data: low-pressure 40-80 W lamps, 9,000-10,000 h lamp life, 1-40 m3/h, chamber in AISI 304 or 316L. Spare part for UV disinfection systems of S.I.T.A. srl, Genoa, Italy, which builds low-pressure, amalgam and medium-pressure UV units for drinking water, food and beverage, aquaculture, swimming pool, marine and wastewater duty (series AL, LCD / Rack LCD, AM, IT, 440, HDPE, SBT, SMP, SSD, TOC, GR and Pool).

Part number

SI0028124

Article number

3801-0607

OEM reference

SI0028124 / 028124 / 28124

System manufacturer

S.I.T.A. srl (SITA UV), Italy

Component type

UV disinfection lamp, low pressure

Lamp type

Low pressure, 253.7 nm

Lamp power

80 W

Overall length

843 mm

Tube diameter

15 mm

Rated life

9,000 h

Fits

SITA UV PE 22, SITA SRL 80/8, SITA UV Rack 80/1, SITA UV Rack 80/2, SITA UV Rack 80/3, SITA UV Rack 80/4, SITA UV Rack 80/5, SITA LCD 450, SITA LCD 550

Supply

Replacement part, equivalent to the OEM reference

HS code

8539.49

HS Code

8539.49

• Article 3801-0607
• SITA SI0028124
• SITA 028124
• SITA 28124
