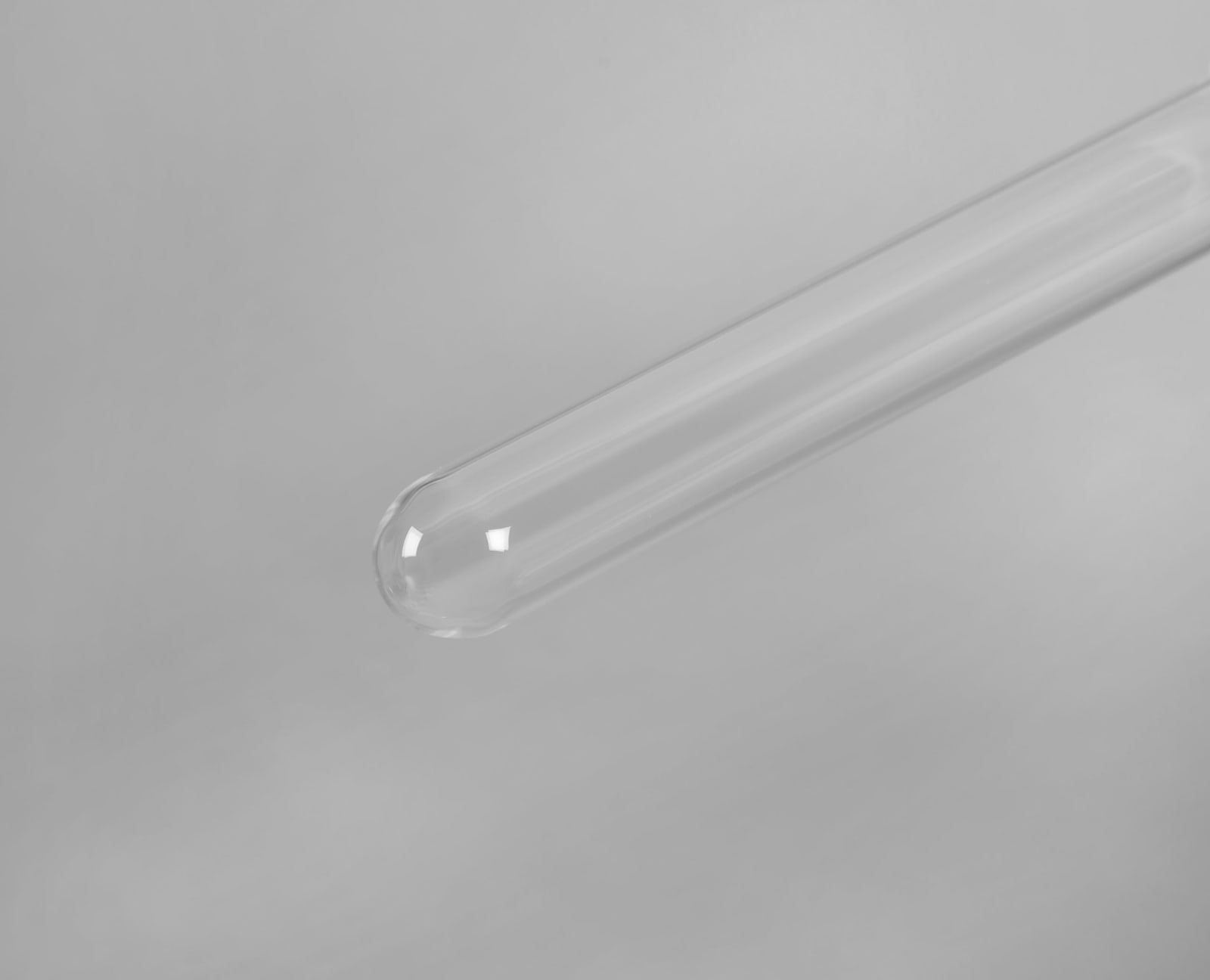

Replacement Quartz Sleeve for SITA SMP 105 TC Plus / RA, 503 mm x 38 mm

Replacement Quartz Sleeve for SITA SMP 105 TC Plus / RA, 503 mm x 38 mm, article 3881-1218. Data: overall length 503 mm, outside diameter 38 mm. Fits: SITA SMP 105 TC Plus, SITA SMP 105 RA, SITA SMP 50 / 70 / 105 / 180 DN300 PR. Supplied as a replacement part made to the dimensions and electrical data of the original; the OEM reference is given for identification. The quartz sleeve isolates the lamp from the water and passes the germicidal UV into the chamber. It fouls with hardness, iron and manganese deposits and is cleaned or replaced when the UV intensity reading cannot be recovered. Check overall length, outside diameter and whether one end is domed (closed) before ordering, and replace the sealing O-rings whenever the sleeve is removed. SITA SMP series data: medium-pressure lamps from 300 W to 12 kW, lamp life up to 10,000 h, in-line chamber in AISI 316L, 10 bar. Spare part for UV disinfection systems of S.I.T.A. srl, Genoa, Italy, which builds low-pressure, amalgam and medium-pressure UV units for drinking water, food and beverage, aquaculture, swimming pool, marine and wastewater duty (series AL, LCD / Rack LCD, AM, IT, 440, HDPE, SBT, SMP, SSD, TOC, GR and Pool).

Part number

3881-1218

Article number

3881-1218

System manufacturer

S.I.T.A. srl (SITA UV), Italy

Component type

Quartz sleeve

Overall length

503 mm

Outside diameter

38 mm

Material

Fused quartz (SiO2)

Fits

SITA SMP 105 TC Plus, SITA SMP 105 RA, SITA SMP 50 / 70 / 105 / 180 DN300 PR

Supply

Replacement part, equivalent to the OEM reference

HS code

7020.00

Material

Fused quartz (SiO2)

HS Code

7020.00

• Article 3881-1218
