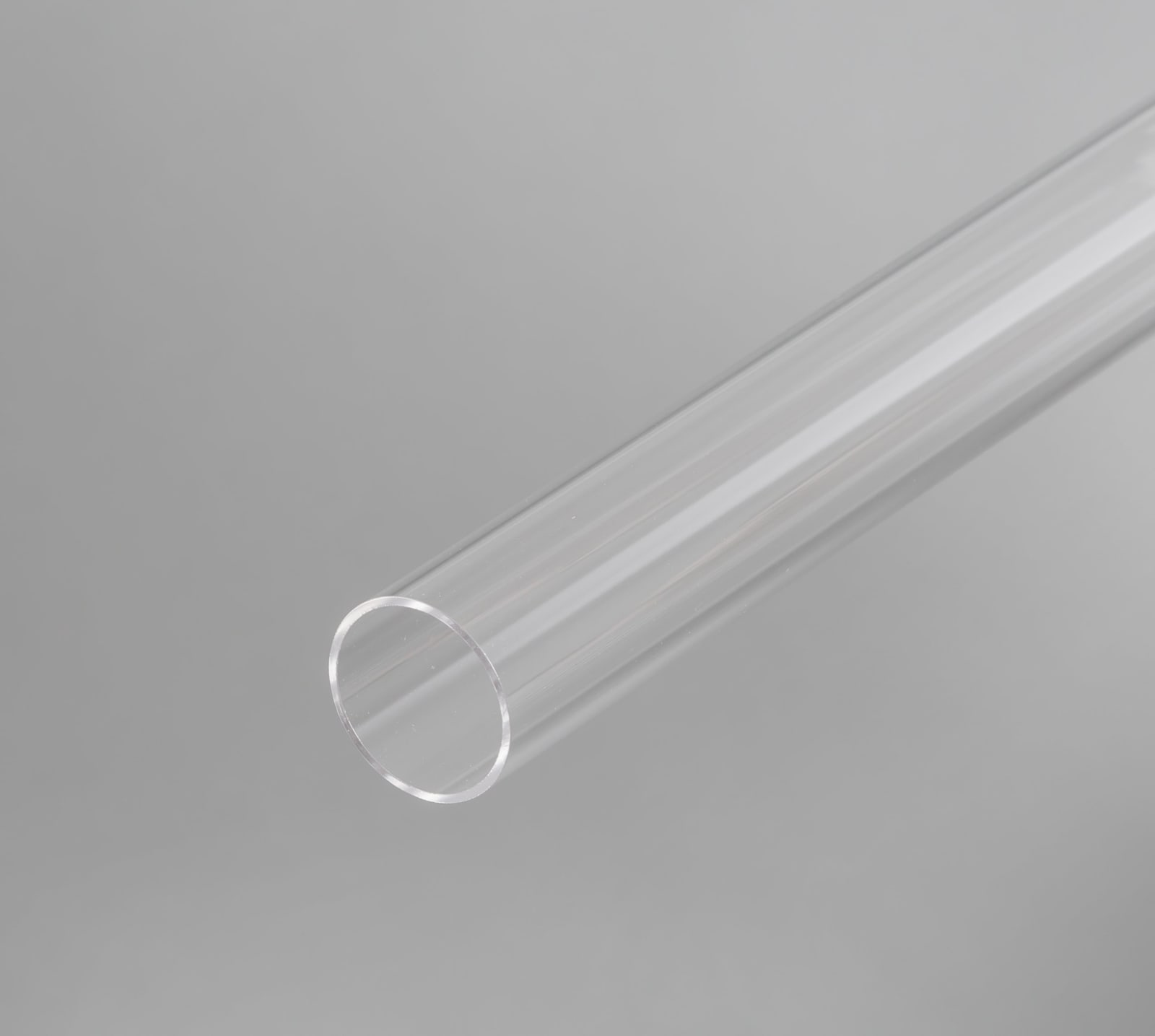

Replacement Quartz Sleeve for SITA 400 Series, SI028200, 1698 mm x 38 mm (3830-0213)
SITA

Replacement Quartz Sleeve for SITA 400 Series, SI028200, 1698 mm x 38 mm

Part numberSI028200Item numberSITA-3830-0213HS code7020.00
MaterialFused quartz (SiO2)
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Product Description

Replacement Quartz Sleeve for SITA 400 Series, SI028200, 1698 mm x 38 mm, article 3830-0213. Data: overall length 1698 mm, outside diameter 38 mm. OEM reference: SI028200 / 028200. Fits: SITA HDPE 110 RM, SITA HDPE 150, SITA HDPE 600, SITA UV PE 830TC, SITA UV PE 470TC, SITA 400/12 DS Plus, SITA 400/6 DS RA Plus, SITA 400/3 RA Plus, SITA 110. Takes amalgam lamp SI028118 (1550 mm); sealed by O-ring 028207 (38 x 5 mm). Supplied as a replacement part made to the dimensions and electrical data of the original; the OEM reference is given for identification. The quartz sleeve isolates the lamp from the water and passes the germicidal UV into the chamber. It fouls with hardness, iron and manganese deposits and is cleaned or replaced when the UV intensity reading cannot be recovered. Check overall length, outside diameter and whether one end is domed (closed) before ordering, and replace the sealing O-rings whenever the sleeve is removed. SITA HDPE series data: high-density polyethylene chamber for seawater and corrosive liquids, 1-980 m3/h, low-pressure high-efficiency or amalgam lamps with 9,000-16,000 h lamp life, 6 bar. Spare part for UV disinfection systems of S.I.T.A. srl, Genoa, Italy, which builds low-pressure, amalgam and medium-pressure UV units for drinking water, food and beverage, aquaculture, swimming pool, marine and wastewater duty (series AL, LCD / Rack LCD, AM, IT, 440, HDPE, SBT, SMP, SSD, TOC, GR and Pool).

Technical Specifications

Part number
SI028200
Article number
3830-0213
OEM reference
SI028200 / 028200
System manufacturer
S.I.T.A. srl (SITA UV), Italy
Component type
Quartz sleeve
Overall length
1698 mm
Outside diameter
38 mm
Material
Fused quartz (SiO2)
Fits
SITA HDPE 110 RM, SITA HDPE 150, SITA HDPE 600, SITA UV PE 830TC, SITA UV PE 470TC, SITA 400/12 DS Plus, SITA 400/6 DS RA Plus, SITA 400/3 RA Plus, SITA 110
Supply
Replacement part, equivalent to the OEM reference
HS code
7020.00

Standards & Compliance

Material
Fused quartz (SiO2)
HS Code
7020.00

Cross References

  • Article 3830-0213
  • SITA SI028200
  • SITA 028200

Compatibility & Fitment

Fits: SITA HDPE 110 RM, SITA HDPE 150, SITA HDPE 600, SITA UV PE 830TC, SITA UV PE 470TC, SITA 400/12 DS Plus, SITA 400/6 DS RA Plus, SITA 400/3 RA Plus, SITA 110

Not sure if it fits? Email sales@cballast.com with your equipment serial number or photos — we confirm fit before you order.

Product Documentation

Document preview: SITA UV spare parts cross-reference (cBallast)

Catalogue entry last verified: 2026-09-20. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.

Frequently asked questions

Where can I buy SI028200?
SI028200 can be ordered from cballast.com as a SITA catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
What is the manufacturer part number for this SITA product?
The manufacturer part number is SI028200.
What is the HS code for SI028200?
The customs tariff (HS) code for SI028200 is 7020.00.
Who manufactures SI028200?
SI028200 is a SITA product in the Electrochlorination & Water Treatment range.
Is a datasheet available for SI028200?
Yes — the SI028200 datasheet can be viewed and downloaded on this page.
What is the minimum order quantity for SI028200?
The minimum order quantity is 1.
Is SI028200 available?
Yes — SI028200 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
