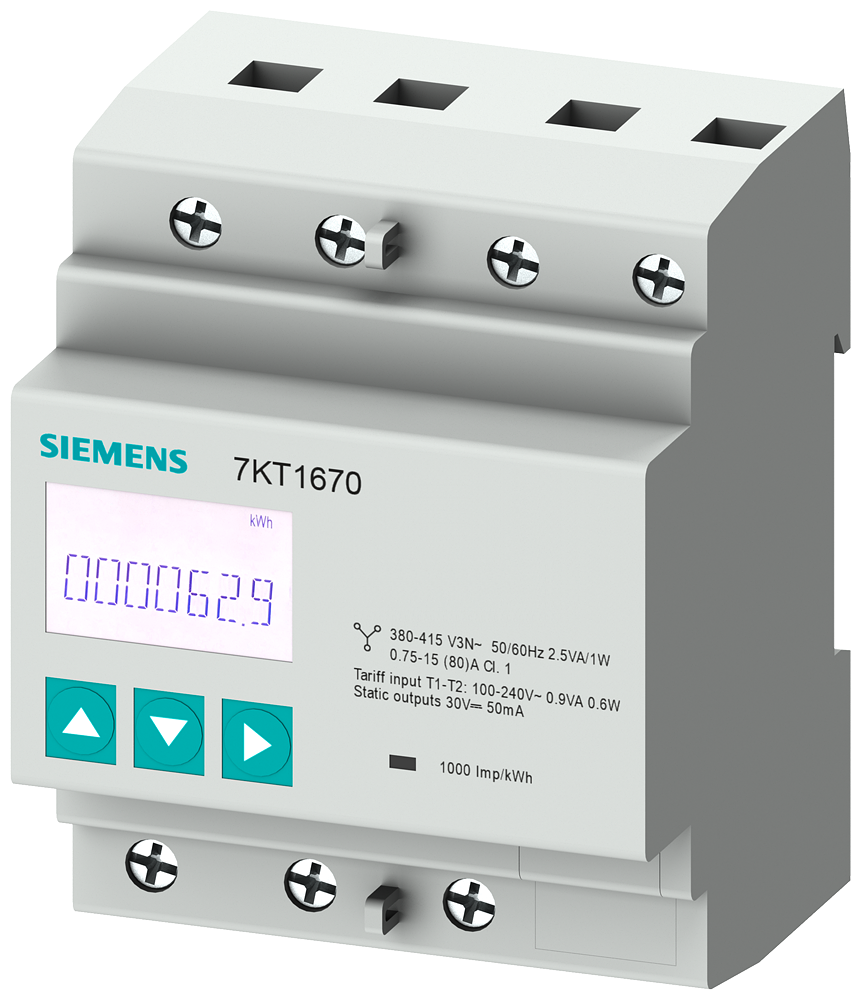

Siemens SENTRON,measuring instrument 7KT1671
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 7KT1671 SENTRON,measuring instrument,7KM PAC1600,LCD,L-L: 400V,L-N: 230V,80A,standard mounting rail,3-phase,S0 +MID,.
Technical Specifications
- Manufacturer part number (MPN)
- 7KT1671
- EAN / GTIN
- 4001869563657
- Sales unit
- pcs
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Direct measurement
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Frequency
- 45–65 Hz
- Max. current (Imax)
- 80 A
- Width in number of modular spacings
- 4
- Number of positions total (counter)
- 10
- Type of meter
- Electronic
- Degree of protection (IP)
- IP40
- Type of interface
- None
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 1–1000 Imp/kWh (kvarh)
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 187–264 V
- Nominal voltage (Un) L-L
- 323–456 V
- Nominal current (In)
- 80 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 4001869563657
- SAP 1200119908
- Code 81989013
Product Documentation
More from Siemens
Siemens
Siemens SIMATIC, electronic module for ET200ISP, 4 AI, TC: for connection of thermocouples (voltage measurement)
6ES7134-7SD00-0AB0
Siemens

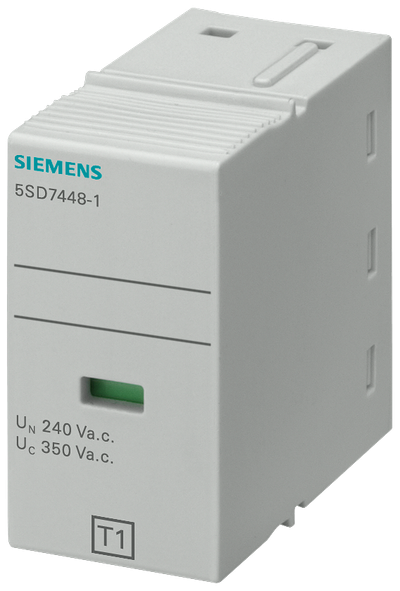

Siemens 5SD7448-1
Siemens

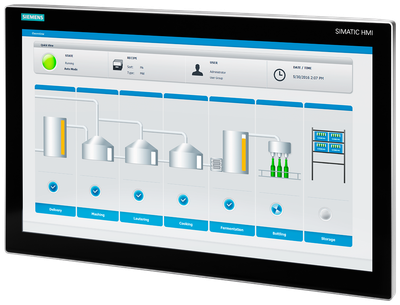

Siemens SIMATIC IFP1500 V2 PRO, 15 multi-touch display (16:9) with 1920X1080 pixel resolution 6AV7863-5MA14-2AA0
Siemens

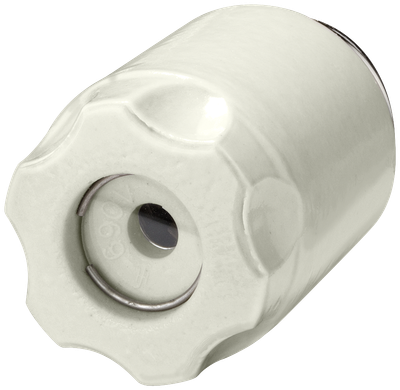

Siemens Sikringscover Diii 63A AC690V DC600V Ceramic
5SH1170
Siemens
Siemens SIMATIC S7 automation module 6ES7841-0CC05-0YE5
Siemens

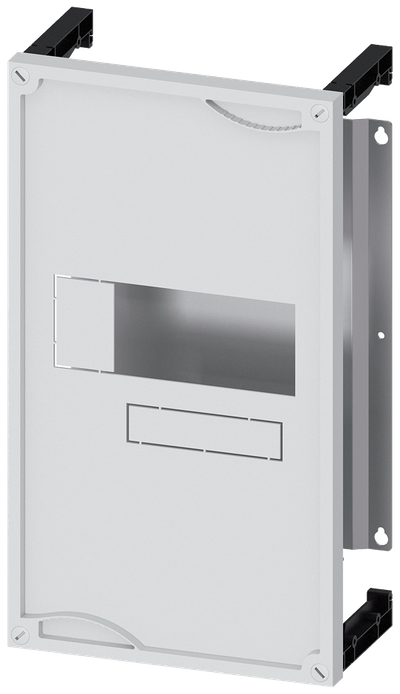

Siemens Alpha KIT 1X3VA23-24, 450X250
8GK4730-4KK12
Siemens

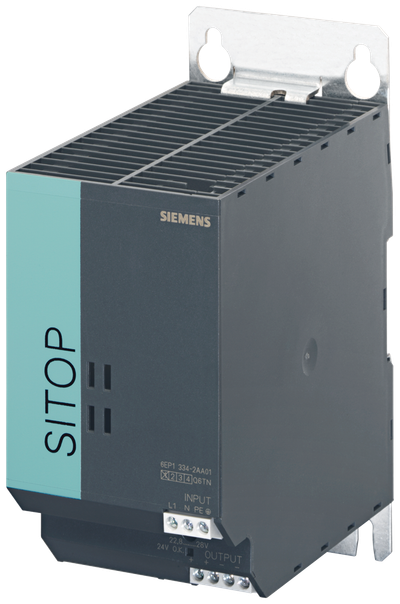

Siemens SITOP SMART/1AC/24VDC/10A/wall mounting
6EP1334-2AA01-0AB0
Siemens

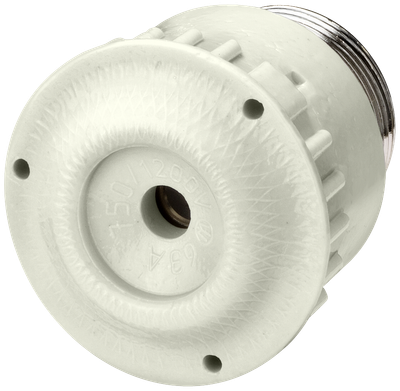

Siemens Sikringscover Diii 63A Ac Dc 750V Ceramic for mounting 5SF4 230
