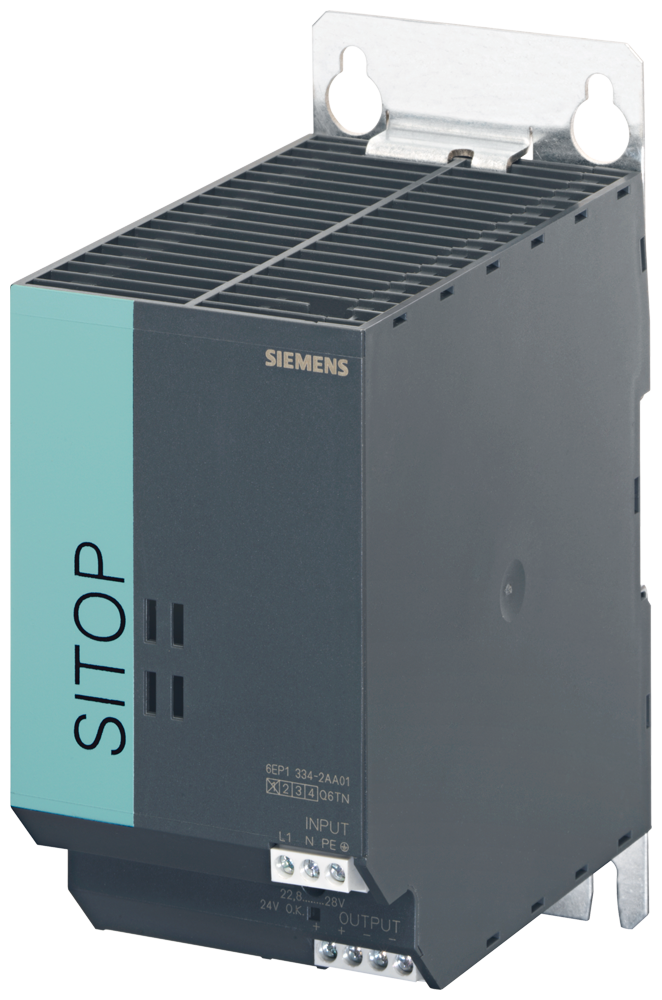

Siemens SITOP SMART/1AC/24VDC/10A/wall mounting

Siemens 6EP1334-2AA01-0AB0 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP POWER 24V DC 10A, WALL.

Manufacturer part number (MPN)

6EP1334-2AA01-0AB0 EAN / GTIN: 4025515150299 Sales unit: pcs Type of the power supply network: 1-phase AC Supply voltage: 120 V/230 V Input voltage 1 at AC: 85 ... 132 V Input voltage 2 at AC: 170 ... 264 V Overvoltage overload capability: 2.3 × Vin rated, 1.3 ms Buffering time for rated value of the output current in the event of power failure minimum: 20 ms Operating condition of the mains buffering: at Vin = 93/187 V Line frequency: 50/60 Hz Input current — at rated input voltage 120 V: 4.1 A Input current — at rated input voltage 230 V: 2.4 A Current limitation of inrush current at 25 °C maximum: 65 A Duration of inrush current limiting at 25 °C — typical: 3 ms I2t value maximum: 3.3 A²·s Fuse protection type: T 6.3 A/250 V (not accessible) Fuse protection type in the feeder: Recommended miniature circuit breaker: from 10 A characteristic C Output voltage at DC rated value: 24 V Output voltage — at output 1 at DC rated value: 24 V Adjustable output voltage: 22.8 ... 28 V Relative overall tolerance of the voltage: 3 % Relative control precision of the output voltage — on slow fluctuation of input voltage: 0.1 % Relative control precision of the output voltage — on slow fluctuation of ohm loading: 0.5 % Voltage peak — maximum: 240 mV Voltage peak — typical: 150 mV Display version for normal operation: Green LED for 24 V OK Behavior of the output voltage when switching on: Overshoot of Vout approx. 4 % Response delay maximum: 0.1 s Voltage increase time of the output voltage — typical: 50 ms Output current — rated value: 10 A Output current — rated range: 0 ... 12 A; 12 A up to +45 °C Supplied active power typical: 288 W Short-term overload current — on short-circuiting during the start-up typical: 30 A Short-term overload current — at short-circuit during operation typical: 33 A Duration of overloading capability for excess current — on short-circuiting during the start-up: 100 ms Duration of overloading capability for excess current — at short-circuit during operation: 200 ms Number of parallel-switched equipment resources for increasing the power: 2 Efficiency in percent: 90 % Power loss [W] — at rated output voltage for rated value of the output current typical: 27 W Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical: 0.3 % Relative control precision of the output voltage load step of resistive load 50/100/50 % typical: 1 % Setting time — load step 50 to 100% typical: 0.2 ms Setting time — load step 100 to 50% typical: 0.2 ms Design of the overvoltage protection: < 33 V Response value current limitation: 12.5 ... 13.5 A Enduring short circuit current RMS value — typical: 16 A Galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) Leakage current — maximum: 3.5 mA Leakage current — typical: 0.8 mA Protection class IP: IP20 Ambient temperature — during operation: 0 ... 60 °C; with natural convection Ambient temperature — during transport: -40 ... +85 °C Ambient temperature — during storage: -40 ... +85 °C Type of electrical connection — at input: L, N PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded Type of electrical connection — at output: L+ M: 2 screw terminals each for 0.5 ... 2.5 mm² Width × height × depth of the enclosure: 70 × 125 × 125 mm Installation width × mounting height: 70 mm × 225 mm Required spacing — top: 50 mm Required spacing — bottom: 50 mm Mechanical data — net weight: 0.85 kg Voltage type (supply voltage): AC 1st secondary output voltage: 24 V Max. output current 1: 12 A Secondary voltage adjustable: Yes Nominal value output voltage 1: 24 V Nominal value output current 1: 10 A Short-circuit-proof: Yes Rated supply voltage AC 50 Hz: 230 V Rated supply voltage AC 60 Hz: 120 V Output voltage stabilized: Yes Power output: 288 W Stabilized: Yes Type of electric connection: Screw connection Suitable for rail mounting: No Wall mounting possible: Yes Suitable for distribution board: Yes Built-in width: 70 mm Built-in height: 225 mm Direct mounting possible: Yes Width: 70 mm Height: 125 mm Depth: 125 mm Degree of protection (IP): IP20 Country of origin: Austria

HS Code

8504.40

• EAN 4025515150299
• SAP 1000100031
• Code 8594470
