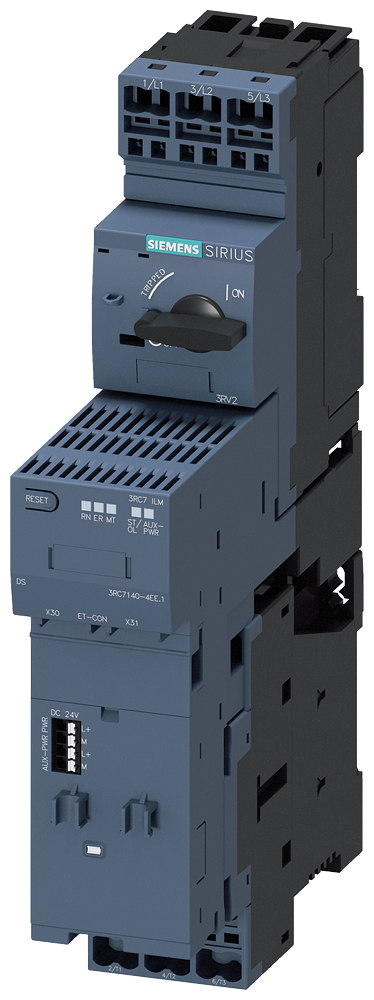

Siemens Complete ILM for direct-on-line start, 3,2-32AMP
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RA8422-4EE10 Complete ILM for direct-on-line start, 3,2-32Amp. This is pre-assembled sammensatt with 3RV+3RT.
Technical Specifications
- Manufacturer part number (MPN)
- 3RA8422-4EE10
- EAN / GTIN
- 4047621109916
- Sales unit
- pcs
- Width
- 90 mm
- Height
- 242.4 mm
- Depth
- 149.6 mm
- With transformer
- No
- Power consumption
- 1.3 W
- Rated operation power at AC-3, 400 V
- 15000 kW
- Rated operation current Ie
- 32 A
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Release class
- Adjustable
- With fuse
- No
- Type of electrical connection of main circuit
- Spring clamp connection
- Voltage type for actuating
- DC
- Type of motor starter
- Direct online starter (DOL)
- Rated power, 460 V, 60 Hz, 3-phase
- 15000 kW
- Rated power, 575 V, 60 Hz, 3-phase
- 18500 kW
- Rated operation current at AC-3, 400 V
- 32 A
- Ambient temperature, upper operating limit
- 40 °C
- Temperature compensated overload protection
- No
- Rated conditional short-circuit current, type 2, 400 V
- 150000 A
- Rated conditional short-circuit current, type 2, 230 V
- 150000 A
- Rated conditional short-circuit current, type 1, 480 Y/277 V
- 50000 A
- Rated conditional short-circuit current, type 1, 600 Y/347 V
- 30000 A
- Coordination class according to IEC 60947-4-3
- Class 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4047621109916
- SAP 1200841022
- Code 84032579
Product Documentation
More from Siemens
Siemens
Siemens SITRANS pressure transmitter 7MF1565-3BG00-1EA1
Siemens

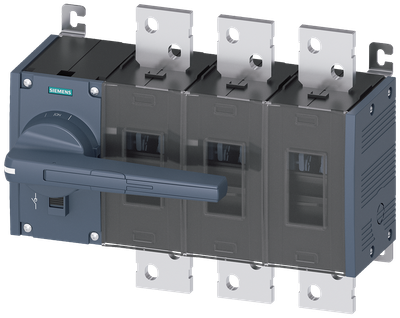

Siemens SENTRON 3KD Switch-Disconnector 3KD5432-0RE10-0, 1600 A, 3-Pole, Front Operated Left, without Rotary Handle
Siemens
Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 30MA,10KA, 1+N-Pole B 40A
5SU1354-6KK40
Siemens

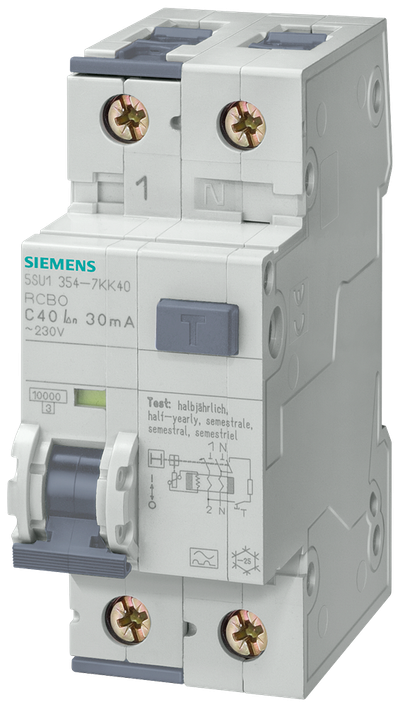

Siemens Earth-fault RCD 5SU1354-7LB20
Siemens

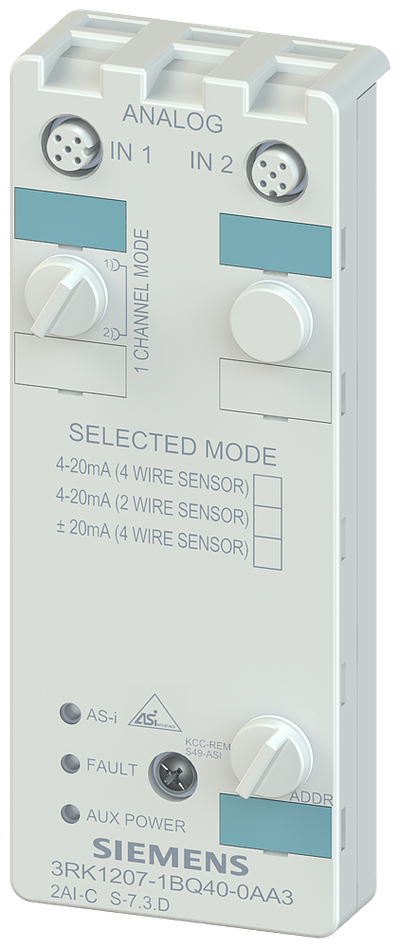

Siemens SIRIUS AS-Interface module 3RK1207-1BQ40-0AA3
Siemens

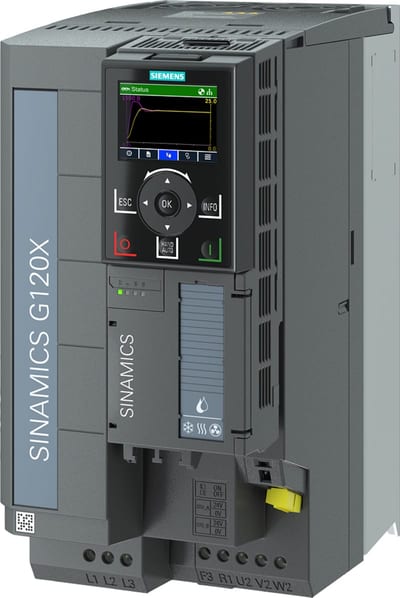

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE26-0UB0
Siemens

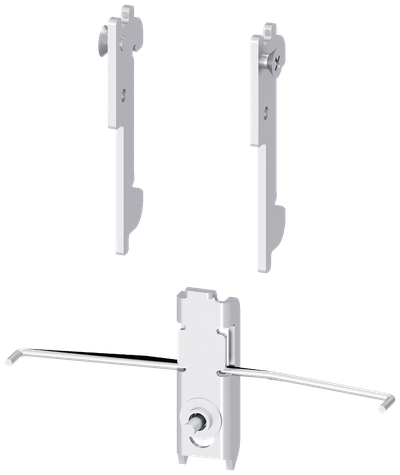

Siemens NH00 fixing kit for 2 standard mounting rails with clearance 125mm or 150mm
3NP19331EB00
Siemens

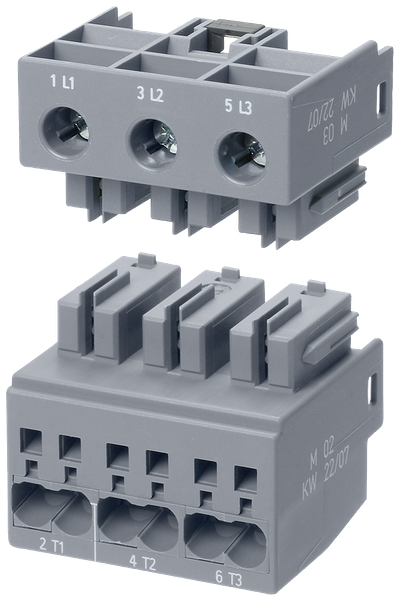

Siemens Main Circuit Terminals for 3RA6 Compact Starter, 3-Phase
