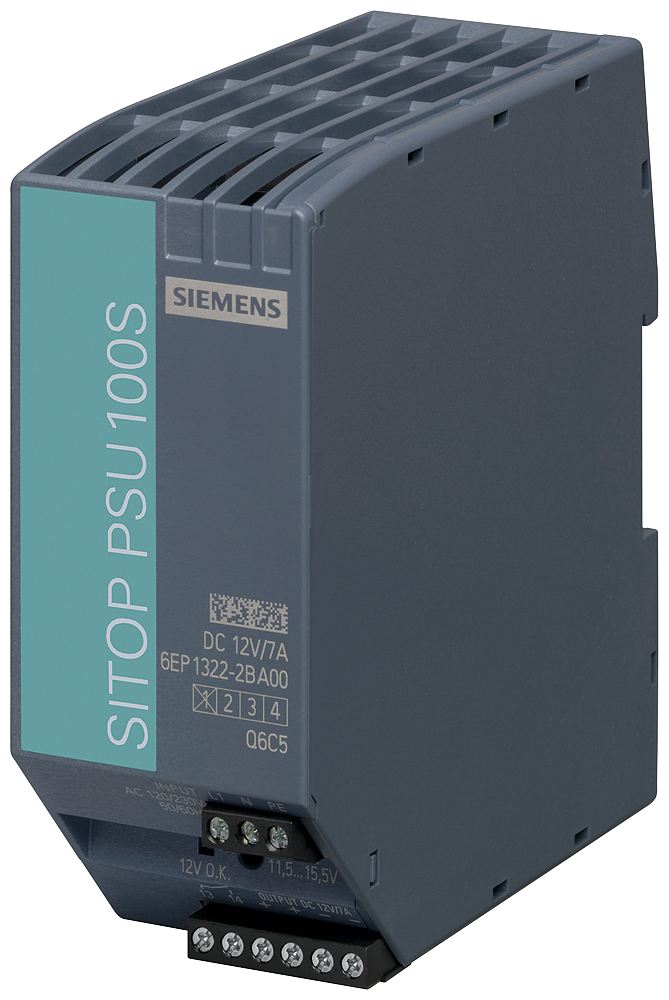

Siemens SITOP DC power supply 6EP1322-2BA00

Siemens 6EP1322-2BA00 - SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU100s 12 V/7 A regulated power supply, input voltage: 120/230 V AC, output voltage: 12.

Manufacturer part number (MPN)

6EP1322-2BA00 EAN / GTIN: 4025515153450 Sales unit: pcs Type of the power supply network: 1-phase AC Supply voltage: 120 V/230 V Input voltage 1 at AC: 85 ... 132 V Input voltage 2 at AC: 170 ... 264 V Overvoltage overload capability: 2.3 × Vin rated, 1.3 ms Buffering time for rated value of the output current in the event of power failure minimum: 20 ms Operating condition of the mains buffering: at Vin = 93/187 V Line frequency: 50/60 Hz Input current — at rated input voltage 120 V: 1.73 A Input current — at rated input voltage 230 V: 0.99 A Current limitation of inrush current at 25 °C maximum: 45 A Fuse protection type: T 3,15 A/250 V (not accessible) Fuse protection type in the feeder: Recommended miniature circuit breaker: from 6 A characteristic C Output voltage at DC rated value: 12 V Output voltage — at output 1 at DC rated value: 12 V Adjustable output voltage: 11.5 ... 15.5 V Relative overall tolerance of the voltage: 3 % Relative control prec

HS Code

8504.40

• EAN 4025515153450
• SAP 1000350938
• Code 8393993
