Siemens JFA Residual Current Circuit Breaker 2-Pole B20 30 mA 10 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SU1324-6FM20 residual current circuit breaker (JFA), 2-pole, B20, 30 mA, 10 kA, I2=1.3, meeting NEK 400 for residential use in IT, TN and TT mains installations. Type A leakage current, 230 V AC 50 Hz, three modular spacings wide, IP20 with 70 mm built-in depth. Suitable for flush-mounted installation.
Technical Specifications
- Manufacturer part number (MPN)
- 5SU1324-6FM20
- EAN / GTIN
- 4001869484211
- Sales unit
- pcs
- Number of poles
- 2P
- Breaking capacity
- 10 kA
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 264 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 20 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 1 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- B
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 3
- Built-in depth
- 70 mm
- Degree of protection (IP)
- IP20
- Flush-mounted installation
- Yes
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4001869484211
- SAP 1000633986
- Code 8315279
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS 3RW soft starter 3RW4028-1BB14
Siemens
Siemens Busbar 45mm for 3 3RV S00, S0
3RV1915-1BB
Siemens
Siemens Contact Block Front 1N0
3RH2911-1AA10
Siemens
Siemens S3, EL 3RB3143-4XB0
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE22-0UF0
Siemens
Siemens Relay 4NO,24V DC with diode, S00 Spring terminals
3RH2140-2JB40
Siemens
Siemens Surge protection device, RC joint, AC 24 3RT2916-1CB00
Siemens

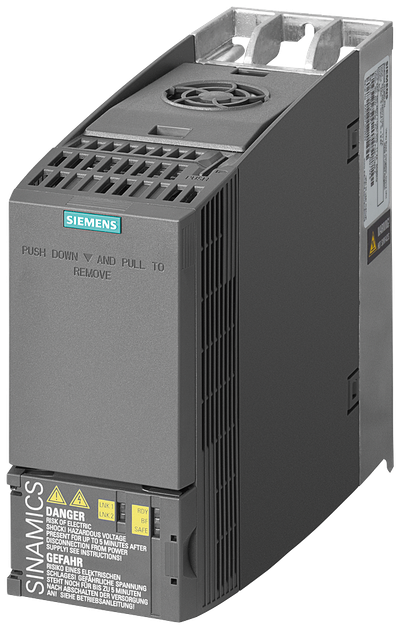

Siemens Sinamics G120C USS/MB 3AC 400V 4,0kW with integrated filter kl
