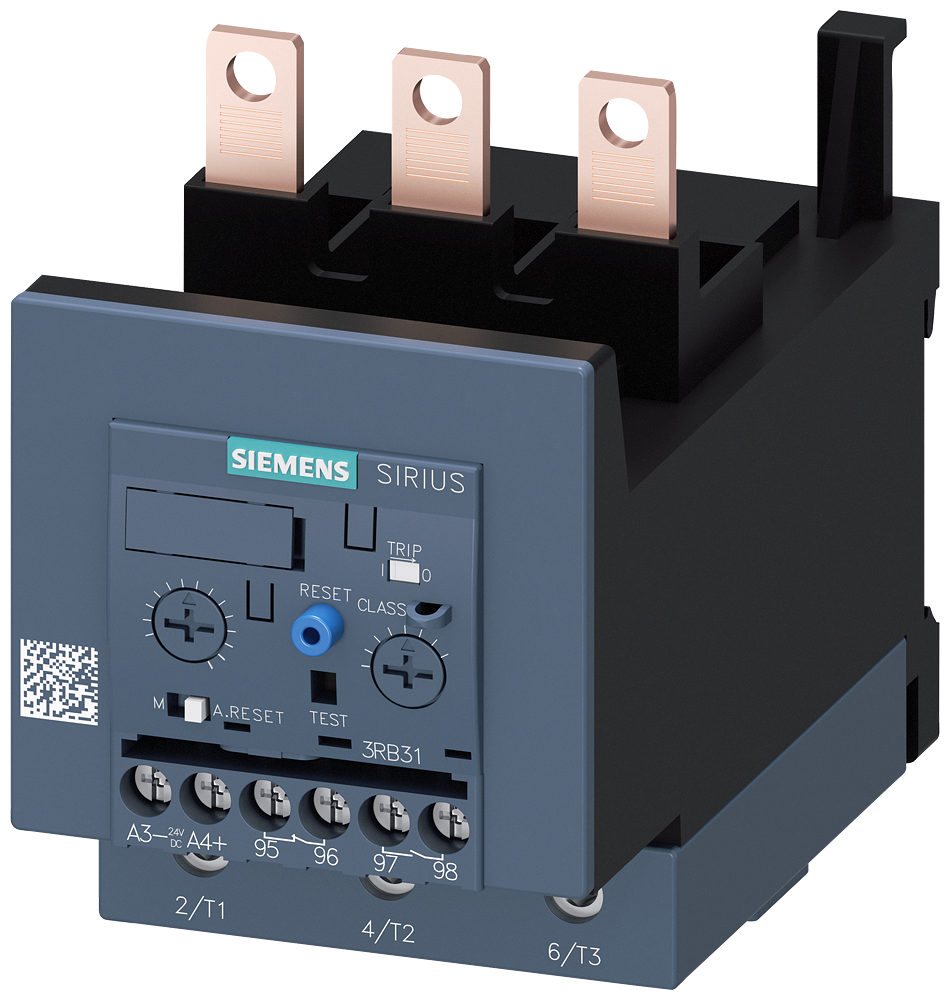

Siemens S3, EL 3RB3143-4XB0

Siemens 3RB3143-4XB0 S3, ELECTRONIC OVERLOAD RELAY FOR motor protection.

Manufacturer part number (MPN)

3RB3143-4XB0 EAN / GTIN: 4047621012032 Sales unit: pcs Product brand name: SIRIUS Product designation: solid-state overload relay Product type designation: 3RB3 Size of overload relay: S3 Size of contactor can be combined company-specific: S3 Power loss [W] for rated value of the current at AC in hot operating state: 4.6 W Type of calculation of power loss current-dependent: quadratic Insulation voltage with degree of pollution 3 at AC rated value: 1 000 V Surge voltage resistance rated value: 8 kV Shock resistance: 8 g / 11 ms Vibration resistance: 1 … 6 Hz, 15 mm; 6 … 500 Hz, 20 m/s²; 10 cycles Thermal current: 115 A Recovery time after overload trip — with automatic reset typical: 3 min Recovery time after overload trip — Net Weight: 565 g Installation altitude at height above sea level maximum: 2 000 m Ambient temperature — during operation: -25 ... +60 °C Ambient temperature — during storage: -40 ... +80 °C Temperature compensation: -25 ... +60 °C Relative humidity during operation: 10 ... 95 % Number of poles for main current circuit: 3 Adjustable current response value current of the current-dependent overload release: 32 ... 115 A Operating voltage — rated value: 1 000 V Operating frequency rated value: 50 ... 60 Hz Operational current rated value: 115 A Operating power — for 3-phase motors at 400 V at 50 Hz: 18.5 ... 55 kW Operating power — for AC motors at 500 V at 50 Hz: 22 ... 75 kW Operating power — for AC motors at 690 V at 50 Hz: 30 ... 90 kW Design of the auxiliary switch: integrated Number of NC contacts for auxiliary contacts: 1 Number of NO contacts for auxiliary contacts: 1 Trip class: CLASS 5E, 10E, 20E and 30E adjustable Design of the overload release: electronic Response value current of the grounding protection minimum: 0.75 x IMotor Response time of the grounding protection in settled state: 1 000 ms Full-load current (FLA) for 3-phase AC motor at 480 V rated value: 115 A Contact rating of auxiliary contacts according to UL: B600 / R300 Design of the fuse link for short-circuit protection of the main circuit — with type of coordination 1 required: gG: 315 A Design of the fuse link for short-circuit protection of the main circuit — with type of coordination 2 required: gG: 315 A Mounting position: any Fastening method: Contactor mounting Installation/ mounting/ dimensions — height: 106 mm Installation/ mounting/ dimensions — width: 70 mm Installation/ mounting/ dimensions — depth: 124 mm Type of electrical connection — for main current circuit: screw-type terminals Type of electrical connection — for auxiliary and control circuit: screw-type terminals Tightening torque — for main contacts with screw-type terminals: 4.5 ... 6 N·m Tightening torque — for auxiliary contacts with screw-type terminals: 0.8 ... 1.2 N·m Protection class IP on the front according to IEC 60529: IP20 Touch protection on the front according to IEC 60529: finger-safe, for vertical contact from the front Field-based interference according to IEC 61000-4-3: 10 V/m Electrostatic discharge according to IEC 61000-4-2: 6 kV contact discharge / 8 kV air discharge Display version for switching status: Slide switch Mounting method: Direct attachment Width: 70 mm Height: 106 mm Depth: 124 mm Number of auxiliary contacts as normally open contact: 1 Number of auxiliary contacts as normally closed contact: 1 Release class: Adjustable Type of electrical connection of main circuit: Screw connection Reset function input: Yes Reset function automatic: Yes Country of origin: Czechia

HS Code

8536.49

• EAN 4047621012032
• SAP 1200014121
• Code 81383689
