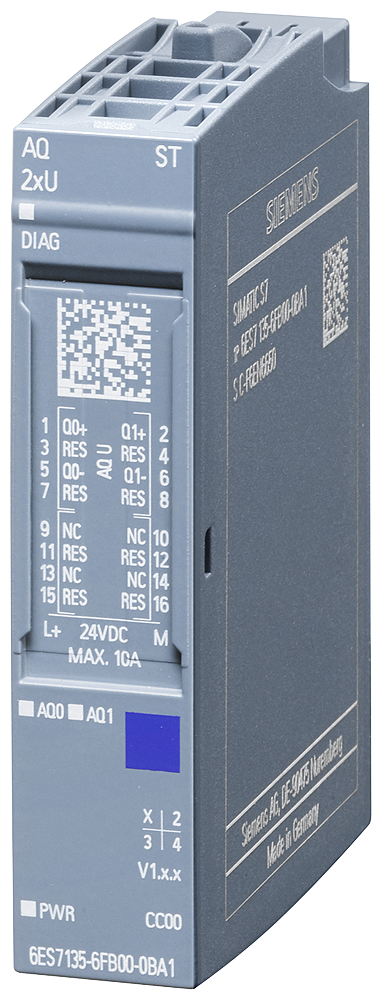

Siemens SIMATIC ET 200SP AQ 2XU Standard

Siemens 6ES7135-6FB00-0BA1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Analog output module, AQ 2XU standard.

Manufacturer part number (MPN)

6ES7135-6FB00-0BA1

EAN / GTIN

4047623406709

Sales unit

pcs

Product type designation

AQ 2xU ST

HW functional status

from FS21

Firmware version

V1.0.3

Firmware version — FW update possible

Yes

Usable BaseUnits

BU type A0, A1

Color code for module-specific color-coded label

CC00

Product function — I&M data

Yes; I&M0 to I&M3

Product function — Output range scalable

No

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13 SP1 / -

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 / -

Engineering with — PROFIBUS from GSD version/GSD revision

GSD Revision 5

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

80 mA

Power loss, typ.

1 W

Address space per module — Address space per module, max.

4 byte; + 1 byte for QI information

Automatic encoding — Type of mechanical coding element

Type A

Number of analog outputs

2

Voltage output, short-circuit current, max.

45 mA

Cycle time (all channels), min.

1 ms

Analog output with oversampling

No

Output ranges, voltage — 0 to 10 V

Yes; 15 bit

Output ranges, voltage — 1 V to 5 V

Yes; 13 bit

Output ranges, voltage — -5 V to +5 V

Yes; 15 bit incl. sign

Output ranges, voltage — -10 V to +10 V

Yes; 16 bit incl. sign

Connection of actuators — for voltage output two-wire connection

Yes

Connection of actuators — for voltage output four-wire connection

No

Load impedance (in rated range of output) — with voltage outputs, min.

2 kΩ

Load impedance (in rated range of output) — with voltage outputs, capacitive load, max.

1 µF

Destruction limits against externally applied voltages and currents — Voltages at the outputs

30 V

Cable length — shielded, max.

200 m

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.

16 bit

Settling time — for resistive load

0.1 ms

Settling time — for capacitive load

1 ms

Linearity error (relative to output range), (+/-)

0.03 %

Temperature error (relative to output range), (+/-)

0.005 %/K

Crosstalk between the outputs, min.

-50 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)

0.05 %

Operational error limit in overall temperature range — Voltage, relative to output range, (+/-)

0.5 %

Operational error limit in overall temperature range — Current, relative to output range, (+/-)

0.5 %

Basic error limit (operational limit at 25 °C) — Voltage, relative to output range, (+/-)

0.3 %

Basic error limit (operational limit at 25 °C) — Current, relative to output range, (+/-)

0.3 %

Diagnoses — Monitoring the supply voltage

Yes

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Potential separation channels — between the channels and the power supply of the electronics

Yes

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS03

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS03

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

31 g

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Resolution of the analogue outputs

16 Bit

Number of analogue outputs

2

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
