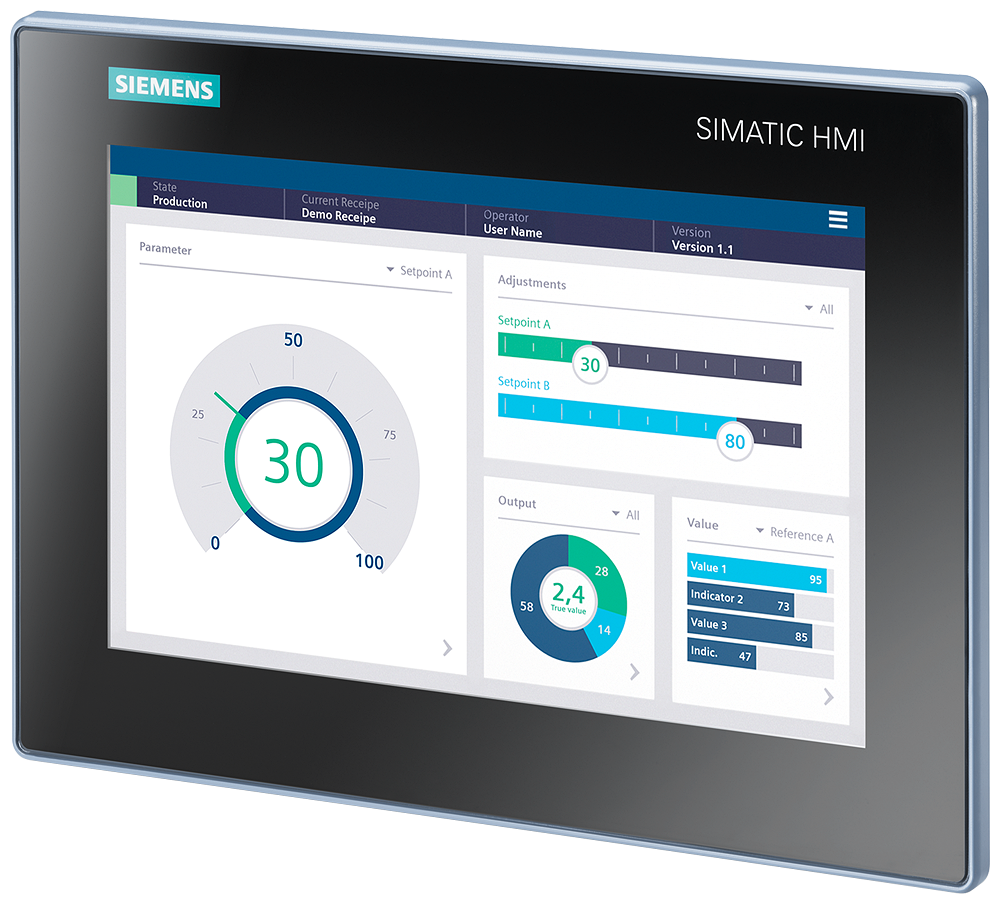

Siemens SIMATIC HMI MTP1000, Unified Basic Panel, touch operation, 10" widescreen TFT display

Siemens 6AV2123-3KB32-0AW0 SIMATIC HMI MTP1000, Unified Basic Panel, touch operation, 10" widescreen TFT display,.

Manufacturer part number (MPN)

6AV2123-3KB32-0AW0

EAN / GTIN

4034106035204

Sales unit

pcs

Product type designation

MTP1000 Unified Basic

Display width

217 mm

Display height

135.6 mm

Number of colors

16 777 216

Backlighting — MTBF backlighting (at 25 °C)

20 000 h; At 25°C

Backlighting — Backlight dimmable

Yes; 10 ... 100%

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

0.28 A

Current consumption (for rated value of supply voltage), min.

0.2 A

Current consumption (for rated value of supply voltage), max.

0.6 A

Current consumption, max.

0.8 A; at 19.2 V

Starting current inrush I²t

0.36 A²·s

Active power input, typ.

9.3 W

Number of industrial Ethernet interfaces

1; Gigabit Ethernet (IE/PN), RJ45

Number of RS 485 interfaces

0

Number of RS 422 interfaces

0

Number of USB interfaces

2; USB 2.0

Number of SD card slots

0

Industrial Ethernet — Number of ports of the integrated switch

1

Operation (vertical installation) — For vertical installation, min.

0 °C

Operation (vertical installation) — For vertical installation, max.

50 °C

Operation (max. tilt angle) — At maximum tilt angle, min.

0 °C

Operation (max. tilt angle) — At maximum tilt angle, max.

40 °C

Operation (vertical installation, portrait format) — For vertical installation, min.

0 °C

Operation (vertical installation, portrait format) — For vertical installation, max.

40 °C

Operation (max. tilt angle, portrait format) — At maximum tilt angle, min.

0 °C

Operation (max. tilt angle, portrait format) — At maximum tilt angle, max.

35 °C

Ambient temperature during storage/transportation — min.

-20 °C

Ambient temperature during storage/transportation — max.

60 °C

Relative humidity — Operation, max.

90 %; no condensation

Online languages — Number of online/runtime languages

32

Help system — Number of characters per info text

70

Help system — Number of message texts per message

10

Message system — Number of alarm classes

32

Bit messages — Number of bit messages

2 000

Analog messages — Number of analog messages

100

Analog messages — Number of characters per message

512

Analog messages — Number of process values per message

10

Parameter set management (recipes) — Number of parameter set types

250

Parameter set management (recipes) — Size of internal parameter set memory

5 Mbyte

Variables — Number of variables per device

1 000

Variables — Number of variables per screen

300

Images — Number of configurable images

300

Image objects — Number of objects per image

600

Complex image objects — Number of complex objects per screen

5

Lists — Number of text lists per project

300

Lists — Number of entries per text strip

250

Lists — Number of graphics lists per project

100

Lists — Number of entries per graphics strip

250

Archiving — Number of archives per device

10

Archiving — Number of entries per archive

50 000

Security — Number of roles

50

Security — Number of function rights

20; V18

Width of the housing front

280 mm

Height of housing front

205 mm

Mounting cutout, width

264 mm

Mounting cutout, height

189 mm

Mounting depth

55 mm

Power consumption

9.3 W

Supporting protocol for EtherCAT

No

Supply voltage DC

19.2–28.8 V

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

1

Number of interfaces PROFINET

1

Number of HW-interfaces USB

2

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Type of display

TFT

Colour display

Yes

Number of colours of the display

16777216

Screen diagonal

10.1 inch

Number of pixels, horizontal

1280

Number of pixels, vertical

800

With numeric keyboard

Yes

With alpha numeric keyboard

Yes

With message indication

Yes

With message system (incl. buffer and confirmation)

Yes

With recipes

Yes

With printer output

No

Number of online languages

32

Additional software components, loadable

No

Degree of protection (IP), front side

IP65

Operating temperature

0–50 °C

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Suitable for safety functions

No

Width of the front

280 mm

Height of the front

205 mm

Built-in depth

55 mm

HS Code

8537.10

• EAN 4034106035204
• SAP 1200737627
• Code 83878249
