Siemens 3RS7020-2ET00 Loop-Powered Signal Insulator 4-20 mA, 1-Channel
Pricing
Request a quote
We reply within 24 hours
Product Description
Single-channel signal converter and loop insulator with 4-20 mA input and 4-20 mA output, providing galvanic separation between transmitter and controller circuits. Compact 6.2 mm wide built-in device with spring-clamp terminals for snap mounting on DIN rail, IP20. Used in process instrumentation to eliminate ground loops and protect analogue inputs.
Technical Specifications
- Manufacturer part number (MPN)
- 3RS7020-2ET00
- EAN / GTIN
- 4047621001340
- Sales unit
- pcs
- Number of input ranges 4 mA ... 20 mA
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- SIL according to IEC 61508
- None
- Height
- 93 mm
- Width
- 6.2 mm
- Depth
- 71 mm
- Load
- 1000 Ohm
- Load influence
- 0 %
- Temperature drift
- 0.015 %/K
- Construction type of device
- Built-in device
- Type of electric connection
- Spring clamp connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4047621001340
- SAP 1000790545
- Code 81402259
Product Documentation
More from Siemens
Siemens

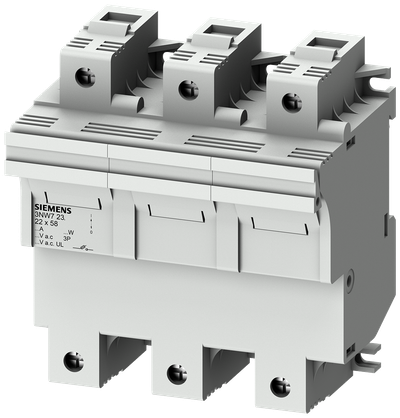

Siemens Fuse Base 3P, 100A, for fuses 22X58MM, DIN rail mounting
3NW7232
Siemens

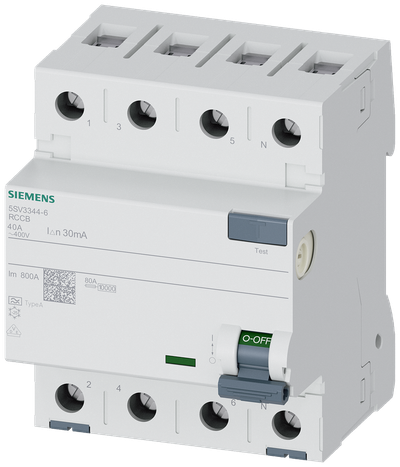

Siemens Residual current circuit breaker, 4-Pole, type A, In: 40 A, 30 mA, Un AC: 400 V
