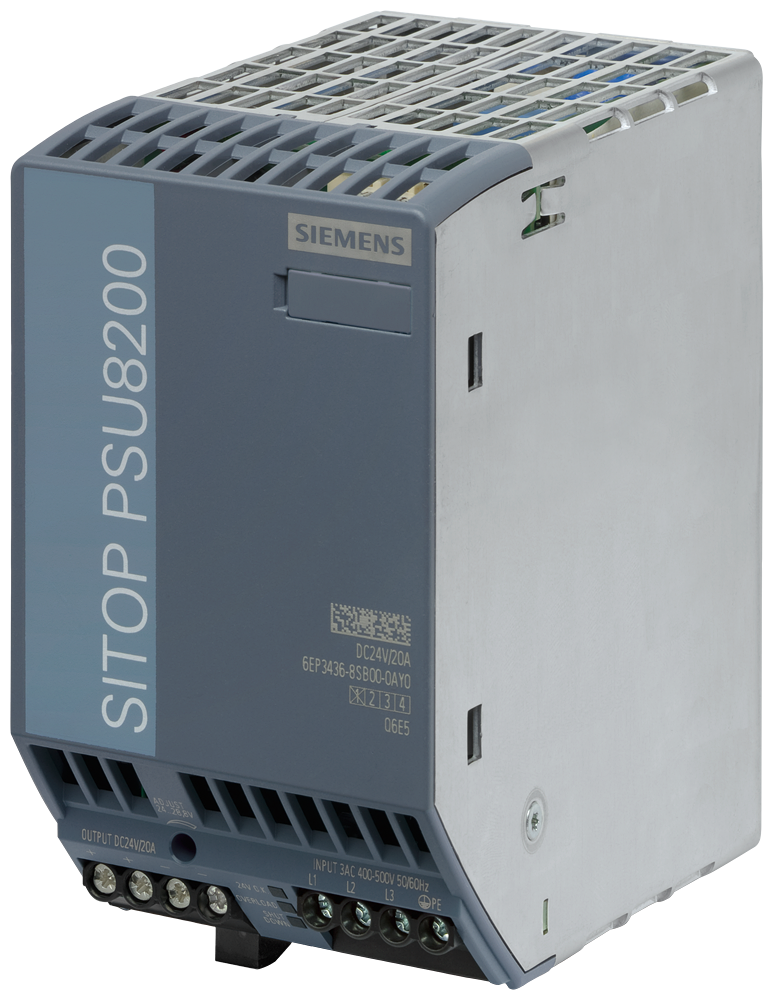

Siemens SITOP DC power supply 6EP3436-8SB00-0AY0

Siemens 6EP3436-8SB00-0AY0 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU8200 24 V/20 A. In: 3 400-500 V AC Out: 24 V/20 A DC.

Manufacturer part number (MPN)

6EP3436-8SB00-0AY0 EAN / GTIN: 4025515154440 Sales unit: pcs Type of the power supply network: 3-phase AC Supply voltage at AC — minimum rated value: 400 V Supply voltage at AC — maximum rated value: 500 V Supply voltage at AC — initial value: 320 V Supply voltage at AC — full-scale value: 575 V Buffering time for rated value of the output current in the event of power failure minimum: 15 ms Operating condition of the mains buffering: at Vin = 400 V Line frequency: 50/60 Hz Input current — at rated input voltage 400 V: 1.2 A Input current — at rated input voltage 500 V: 1 A Current limitation of inrush current at 25 °C maximum: 16 A I2t value maximum: 0.8 A²·s Fuse protection type in the feeder: Required: 3-pole connected miniature circuit breaker 6 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) Output voltage at DC rated value: 24 V Output voltage — at output 1 at DC rated value: 24 V Adjustable output voltage: 24 ... 28 V; max. 480 W Relative overall tolerance of the voltage: 3 % Relative control precision of the output voltage — on slow fluctuation of input voltage: 0.1 % Relative control precision of the output voltage — on slow fluctuation of ohm loading: 0.2 % Voltage peak — maximum: 200 mV Display version for normal operation: Green LED for 24 V OK Type of signal at output: Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" Response delay maximum: 2.5 s Voltage increase time of the output voltage — maximum: 500 ms Output current — rated value: 20 A Output current — rated range: 0 ... 20 A; +60 ... +70 °C: Derating 2%/K Supplied active power typical: 480 W Short-term overload current — at short-circuit during operation typical: 60 A Duration of overloading capability for excess current — at short-circuit during operation: 25 ms Constant overload current — on short-circuiting during the start-up typical: 22 A Number of parallel-switched equipment resources for increasing the power: 2 Efficiency in percent: 94 % Power loss [W] — at rated output voltage for rated value of the output current typical: 31 W Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical: 0.1 % Relative control precision of the output voltage load step of resistive load 50/100/50 % typical: 1 % Setting time — load step 50 to 100% typical: 0.2 ms Setting time — load step 100 to 50% typical: 0.2 ms Relative control precision of the output voltage at load step of resistive load 10/90/10 % typical: 2 % Setting time — load step 10 to 90% typical: 0.2 ms Setting time — load step 90 to 10% typical: 0.2 ms Setting time — maximum: 10 ms Design of the overvoltage protection: < 32 V Design of short-circuit protection: Alternatively, constant current characteristic approx. 22 A or latching shutdown Protection and monitoring — typical: 22 A Overcurrent overload capability — in normal operation: overload capability 150 % Iout rated up to 5 s/min Enduring short circuit current RMS value — typical: 22 A Galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) Leakage current — maximum: 3.5 mA Leakage current — typical: 0.9 mA Protection class IP: IP20 Ambient temperature — during operation: -25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage Ambient temperature — during transport: -40 ... +85 °C Ambient temperature — during storage: -40 ... +85 °C Connection method — at input: L1, L2, L3 PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded Connection method — at output: +, -: 2 screw terminals each for 0.2 ... 4 mm² Connection method — for auxiliary contacts: 13 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²; 15 16 (Remote): 1 screw terminal each for 0.14 ... 1.5 mm² Width × height × depth of the enclosure: 70 × 125 × 125 mm Installation width × mounting height: 70 mm × 225 mm Required spacing — top: 50 mm Required spacing — net weight: 1.2 kg Voltage type (supply voltage): AC Max. output current 1: 20 A Nominal value output voltage 1: 24 V Nominal value output current 1: 20 A Output voltage stabilized: Yes Power output: 480 W Stabilized: Yes Type of electric connection: Screw connection Suitable for rail mounting: Yes Wall mounting possible: No Built-in width: 70 mm Built-in height: 225 mm Width: 70 mm Height: 125 mm Depth: 125 mm Suitable for safety functions: No Degree of protection (IP): IP20 Suitable for wall mounting: No Country of origin: Germany

HS Code

8504.40

• EAN 4025515154440
• SAP 1000660662
• Code 8492034
