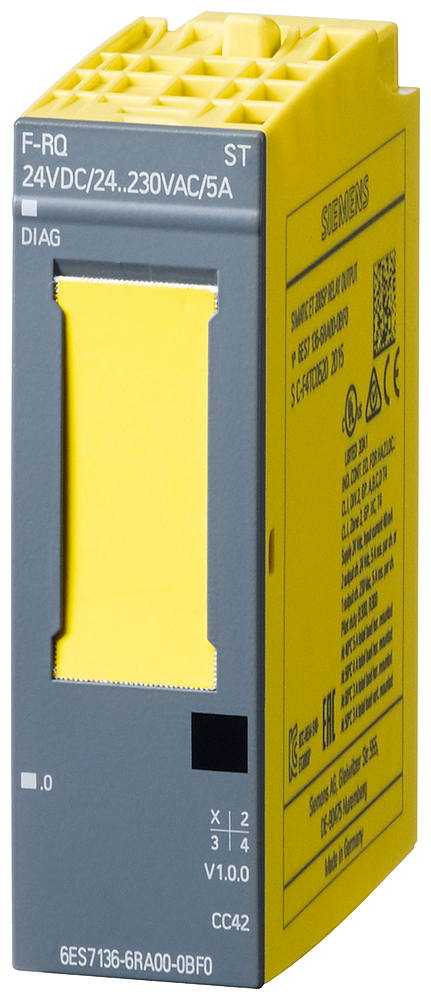

Siemens SIMATIC DP, Electronics module f. ET200SP, F-RQ 1X 24 V DC/24..230VAC/5A ST, 20 mm overall width

Siemens 6ES7136-6RA00-0BF0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC DP, Electron. Module for ET200SP, F-RQ 1X24VDC/24.230VAC/5A ST.

Manufacturer part number (MPN)

6ES7136-6RA00-0BF0

EAN / GTIN

4047623402596

Sales unit

pcs

Product type designation

F-RQ 24 ... 48VDC/24 ... 230VAC/5A ST

Usable BaseUnits

BU type F0

Color code for module-specific color-coded label

CC42

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP4 and higher

Engineering with — PROFINET from GSD version/GSD revision

V2.31

Rated value (DC)

24 V; Coil voltage

Permissible range, lower limit (DC)

20.4 V

Permissible range, upper limit (DC)

28.8 V

Power supply according to NEC Class 2 required

No

Power consumption from the backplane bus

100 mW

Power loss, typ.

1 W

Address space per module — Inputs

1 byte

Type of digital output

Relays

Number of digital outputs

1

Limitation of inductive shutdown voltage to

No

Controlling a digital input

Yes

Switching capacity of the outputs — with resistive load, max.

5 A

Switching capacity of the outputs — on lamp load, max.

25 W

Switching frequency — with resistive load, max.

2 Hz

Switching frequency — with inductive load, max.

0.1 Hz; See data in manual

Switching frequency — with inductive load (acc. to IEC 60947-5-1, DC13), max.

0.1 Hz

Switching frequency — with inductive load (acc. to IEC 60947-5-1, AC15), max.

2 Hz

Horizontal installation — up to 40 °C, max.

5 A; note derating data in the manual

Horizontal installation — up to 50 °C, max.

4 A; note derating data in the manual

Horizontal installation — up to 60 °C, max.

3 A; note derating data in the manual

Vertical installation — up to 50 °C, max.

3 A; note derating data in the manual

Relay outputs — Number of relay outputs

1; 2 NO contacts

Relay outputs — Rated supply voltage of relay coil L+ (DC)

24 V

Relay outputs — Current consumption of relays (coil current of all relays), max.

70 mA

Relay outputs — external protection for relay outputs

yes; 6 A, see data in manual

Relay outputs — Relay approved acc. to UL 508

Yes; Pilot Duty B300, R300

Switching capacity of contacts — with inductive load, max.

see additional description in the manual

Switching capacity of contacts — with resistive load, max.

see additional description in the manual

Switching capacity of contacts — Thermal continuous current, max.

5 A

Switching capacity of contacts — Switching current, min.

1 mA

Switching capacity of contacts — Switching current after exceeding 300 mA, min.

10 mA

Switching capacity of contacts — Switching current after exceeding 300 mA, max.

5 A

Switching capacity of contacts — Rated switching voltage (DC)

24 V

Switching capacity of contacts — Rated switching voltage (AC)

230 V

Cable length — shielded, max.

500 m; for load contacts

Cable length — unshielded, max.

300 m; for load contacts

Cable length — Control cable (input), max.

10 m

Diagnostics indication LED — Channel status display

Yes; green LED

Between channels and backplane bus/supply voltage

250 V AC (reinforced insulation)

Isolation tested with

2 545 V DC/2 s (routine test)

Overvoltage category

III (according to IEC/EN 61131-2:2007 and EN 298:2022), II (according to IEC 61131-2:2017 and IEC 61010-2-201)

Tested with — between channels and backplane bus/supply voltage

DC 2 545 V 2 s (routine test), impulse voltage test DC 7 200 V / 5 positive and 5 negative pulses (type test)

Tested with — between backplane bus and supply voltage

707 V DC (type test)

Highest safety class achievable in safety mode — Category according to ISO 13849-1

4

Highest safety class achievable in safety mode — SIL acc. to IEC 61508

SIL 3

Ambient temperature during operation — horizontal installation, min.

0 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

0 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Dimensions — Width

20 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

56 g

Supporting protocol for EtherCAT

Yes

Voltage type (supply voltage)

DC

Digital inputs configurable

No

Type of voltage (input voltage)

DC

Permitted voltage at output

20.4–264 V

Type of output voltage

AC/DC

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

SIL according to IEC 61508

3

Performance level according to EN ISO 13849-1

Level e

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

20 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
