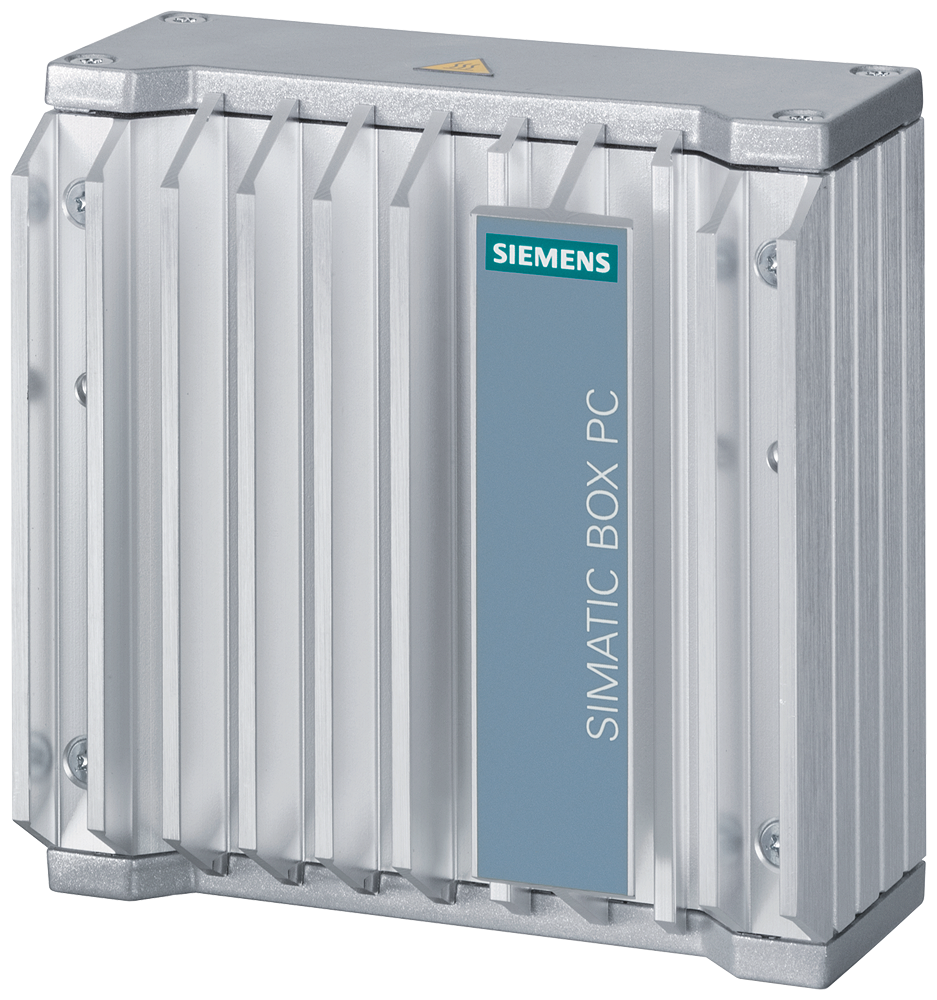

Siemens Industrial Box PC, Intel Atom 2C, 32 GB SSD, 2 GB RAM, Base, without OS
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6AG4021-0AA11-0AA0 Industrial Box PC, Intel Atom 2C, 32 GB SSD, 2 GB RAM, Base, Without OS.
Technical Specifications
- Manufacturer part number (MPN)
- 6AG4021-0AA11-0AA0
- EAN / GTIN
- 4034106032418
- Sales unit
- pcs
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 20.4–28.8 V
- Voltage type (supply voltage)
- DC
- Number of HW-interfaces industrial Ethernet
- 2
- Number of interfaces PROFINET
- 2
- Number of HW-interfaces USB
- 2
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- Yes
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Preinstalled operating system
- None
- Max. main memory
- 2 Mbyte
- Degree of protection (IP)
- IP40
- Operating temperature
- 0–55 °C
- Construction type housing
- Box
- With hard disc
- Yes
- Processor type
- Intel Atom
- Processor clock rate
- 1.3 GHz
- With graphic card
- Yes
- With sound card
- No
- With optical drive
- No
- With floppy disc drive
- No
- With other storage media
- No
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- Yes
- Front built-in possible
- No
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- Width
- 85 mm
- Height
- 85 mm
- Depth
- 41 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 8471.50
Cross References
- EAN 4034106032418
- SAP 1200425666
- Code 82456071
Product Documentation
