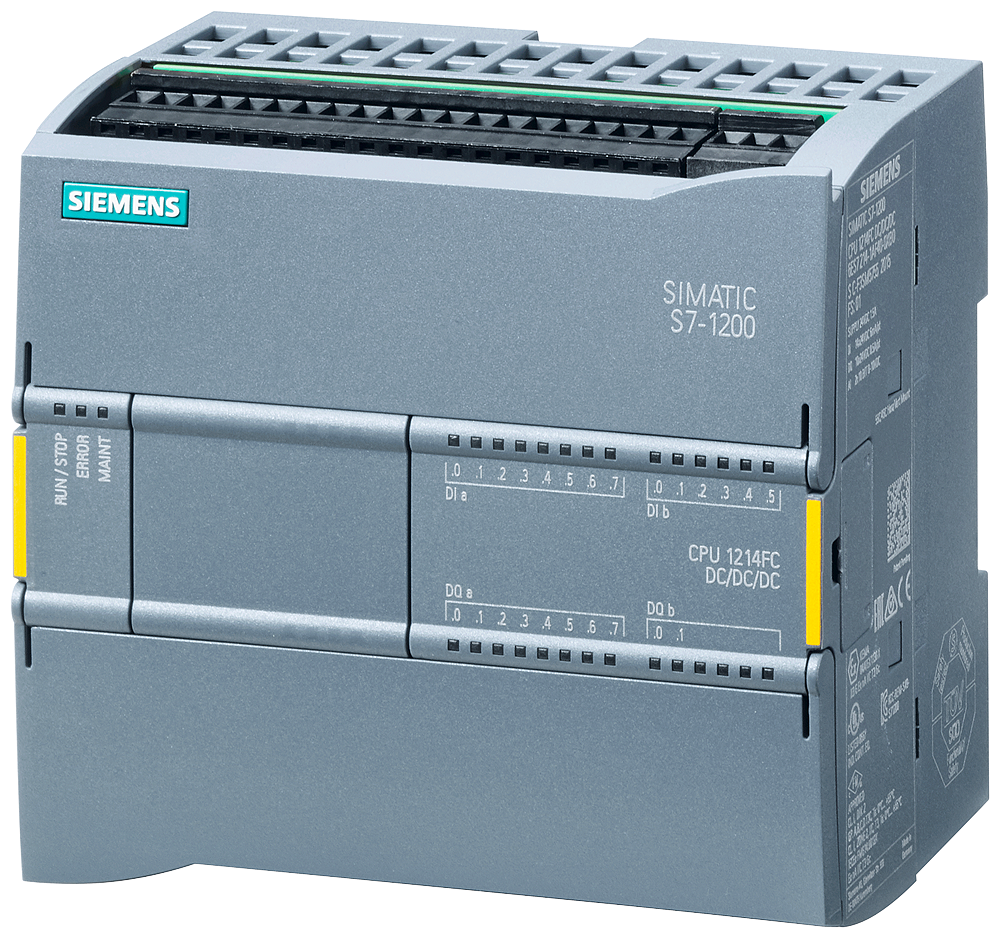

Siemens SIMATIC S7-1200F CPU 1214 FC, DC/DC/DC, 14DI/10DO/2AI

Siemens 6ES7214-1AF40-0XB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC S7-1200F, CPU 1214 FC, Compact-CPU Fail-Safe, DC/DC/DC.

Manufacturer part number (MPN)

6ES7214-1AF40-0XB0

EAN / GTIN

4025515082910

Sales unit

pcs

Product type designation

CPU 1214FC DC/DC/DC

Firmware version

V4.7

Permissible range, lower limit (DC)

20.4 V

Permissible range, upper limit (DC)

28.8 V

Load voltage L+ — Rated value (DC)

24 V

Load voltage L+ — permissible range, lower limit (DC)

20.4 V

Load voltage L+ — permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

500 mA; CPU only

Current consumption, max.

1 500 mA; CPU with all expansion modules

Inrush current, max.

12 A; at 28.8 V

I²t

0.5 A²·s

For backplane bus (5 V DC), max.

1 600 mA; Max. 5 V DC for SM and CM

24 V encoder supply — 24 V

L+ minus 4 V DC min.

Power loss, typ.

12 W

Work memory — integrated

200 kbyte

Load memory — integrated

4 Mbyte

Retentive data area (incl. timers, counters, flags), max.

14 kbyte

Process image — Inputs, adjustable

1 kbyte

Process image — Outputs, adjustable

1 kbyte

Input voltage — Rated value (DC)

24 V

Input voltage — for signal "0"

5 V DC at 1 mA

Input voltage — for signal "1"

15 V DC at 2.5 mA

For standard inputs — parameterizable

0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms

For standard inputs — at "0" to "1", min.

0.2 ms

For standard inputs — at "0" to "1", max.

12.8 ms

Cable length — shielded, max.

500 m; 50 m for technological functions

Cable length — unshielded, max.

300 m; for technological functions: No

Number of digital outputs — of which high-speed outputs

4; 100 kHz Pulse Train Output

Limitation of inductive shutdown voltage to

L+ (-48 V)

Switching capacity of the outputs — with resistive load, max.

0.5 A

Switching capacity of the outputs — on lamp load, max.

5 W

Output voltage — for signal "0", max.

0.1 V; with 10 kOhm load

Output voltage — for signal "1", min.

20 V

Output current — for signal "1" rated value

0.5 A

Output current — for signal "0" residual current, max.

0.1 mA

Output delay with resistive load — "0" to "1", max.

1 µs

Output delay with resistive load — "1" to "0", max.

5 µs

Switching frequency — of the pulse outputs, with resistive load, max.

100 kHz

Number of connections — overall

PG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; To...

Traces — Memory size per trace, max.

512 kbyte

Counter — Counting frequency, max.

100 kHz

Limit frequency (pulse)

100 kHz

Interference immunity against discharge of static electricity — Test voltage at air discharge

8 kV

Interference immunity against discharge of static electricity — Test voltage at contact discharge

6 kV

Free fall — Fall height, max.

0.3 m; five times, in product package

Ambient temperature during operation — min.

0 °C

Ambient temperature during operation — max.

55 °C; Number of simultaneously activated inputs or outputs 4 or 3 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 8 or 6 at 55 °C horizontal or 45 °C vertical

Ambient temperature during operation — horizontal installation, min.

0 °C

Ambient temperature during operation — horizontal installation, max.

55 °C

Ambient temperature during operation — vertical installation, min.

0 °C

Ambient temperature during operation — vertical installation, max.

45 °C

Ambient temperature during storage/transportation — min.

-40 °C

Ambient temperature during storage/transportation — max.

70 °C

Altitude during operation relating to sea level — Installation altitude, min.

-1 000 m

Altitude during operation relating to sea level — Installation altitude, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Relative humidity — Operation, max.

95 %; no condensation

Dimensions — Width

110 mm

Dimensions — Height

100 mm

Dimensions — Depth

75 mm

Weight, approx.

415 g

Width

110 mm

Model

Compact

Height

100 mm

Depth

75 mm

Number of digital inputs

14

Number of digital outputs

10

Number of analogue inputs

2

Voltage type (supply voltage)

DC

Type of memory

RAM

Memory size

125 kByte

Processing time (1K, binary operation)

0.08 ms

Max. number of addressable analogue I/O-ports

2

Max. number of addressable digital I/O-ports

24

Number of HW-interfaces industrial Ethernet

1

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Number of interfaces PROFINET

1

Performance level according to EN ISO 13849-1

Level e

SIL according to IEC 61508

3

Mobile communications standard 4G (LTE)

No

Supporting protocol for EtherCAT

No

Country of origin

Germany

HS Code

8537.10
