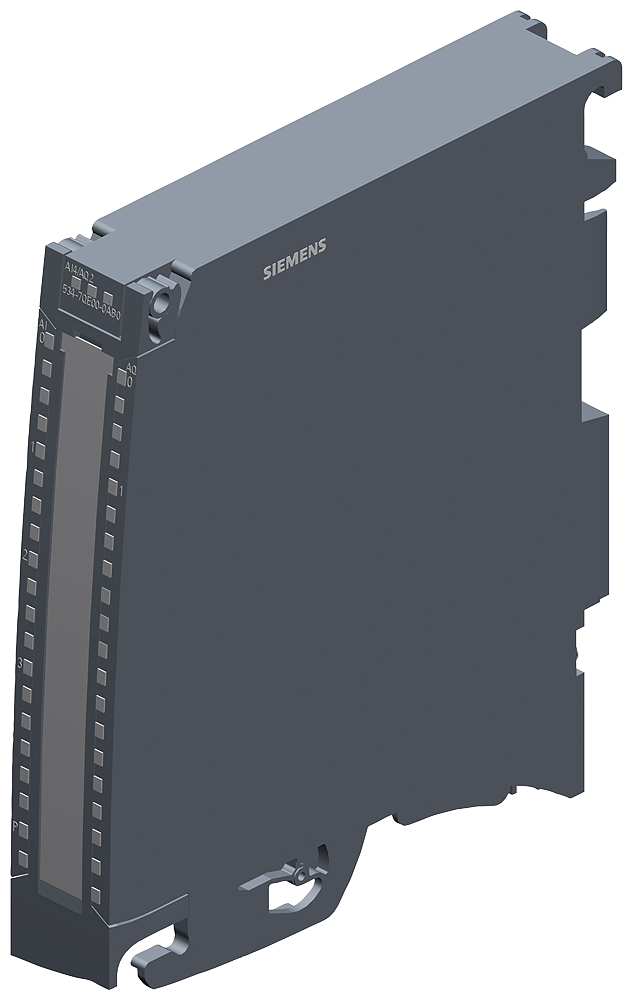

Siemens SIMATIC S7 automation module 6ES7534-7QE00-0AB0

Siemens 6ES7534-7QE00-0AB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC S7-1500, Analog in/output module AI4XU/In/R/RTD/TC; 4 channels.

Manufacturer part number (MPN)

6ES7534-7QE00-0AB0

EAN / GTIN

4047623403326

Sales unit

pcs

Product family

SM 534 analog input/output modules

UPC

887621835590

Customs commodity code (HS)

85389091

Packaging dimensions (L x W x H)

25.6 x 15.4 x 3.4 cm

Net weight

0.424 kg

Country of origin

Germany

Product type designation

AI 4xU/I/RTD/TC / AQ 2xU/I ST

HW functional status

from FS01

Firmware version

V1.0.0

FW update possible

Yes

I&M data

Yes; I&M0 to I&M3

STEP 7 TIA Portal configurable/integrated from version

V13 / V13.0.2

PROFINET from GSD version/GSD revision

V2.3

MSI / MSO

Yes / Yes

Reparameterization possible in RUN

Yes

Calibration possible in RUN

Yes

Supply voltage rated value (DC)

24 V

Supply voltage permissible range (DC)

19.2 V to 28.8 V

Reverse polarity protection

Yes

Current consumption, max.

200 mA

Power consumption from the backplane bus

0.7 W

Power loss, typ.

3.3 W

Number of analog inputs

4

Analog inputs for current / voltage measurement

4 / 4

Analog inputs for resistance/RTD / thermocouple measurement

2 / 4

Number of analog outputs

2

Permissible input voltage for voltage input (destruction limit), max.

28.8 V

Permissible input current for current input (destruction limit), max.

40 mA

Technical unit for temperature measurement adjustable

Yes; °C/°F/K

Input cable length shielded, max.

800 m for U/I, 200 m for R/RTD, 50 m for TC

Voltage output, short-circuit current, max.

24 mA

Current output, no-load voltage, max.

22 V

Output cycle time (all channels), min.

3.2 ms

Load resistance with voltage outputs, min.

1 kΩ

Load resistance with current outputs, max.

750 Ω

Measurement principle

integrating

Resolution with overrange (bit including sign), max.

16 bit

Integration time (ms)

2.5 / 16.67 / 20 / 100 ms

Basic conversion time, including integration time (ms)

9 / 23 / 27 / 107 ms

Output conversion time (per channel)

0.5 ms

Interference voltage suppression for interference frequency f1 in Hz

400 / 60 / 50 / 10

Linearity error, input (relative to input range), (+/-)

0.02 %

Linearity error, output (relative to output range), (+/-)

0.15 %

Temperature error, input (relative to input range), (+/-)

0.005 %/K

Crosstalk between the inputs, max.

-80 dB

Crosstalk between the outputs, max.

-100 dB

Operational error limit, input voltage (+/-)

0.3 %

Basic error limit at 25 °C, input voltage (+/-)

0.1 %

Common mode voltage, max.

10 V

Common mode interference, min.

60 dB

Diagnostics function

Yes

Substitute values connectable

Yes

Wire break diagnostics

Yes; input 1..5 V, 4..20 mA, TC, R, RTD and output current

Potential separation between the channels and backplane bus

Yes

Permissible potential difference between the inputs (UCM)

20 V DC

Isolation tested with

707 V DC (type test)

Ambient temperature, horizontal installation, min.

-25 °C; from FS04

Ambient temperature, horizontal installation, max.

60 °C

Ambient temperature, vertical installation, max.

40 °C

Installation altitude above sea level, max.

5000 m

Width

25 mm

Height

147 mm

Depth

129 mm

Weight, approx.

250 g

Number of analogue inputs

4

Number of analogue outputs

2

Resolution of the analogue inputs

16 Bit

Resolution of the analogue outputs

16 Bit

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

HS Code

8538.90
