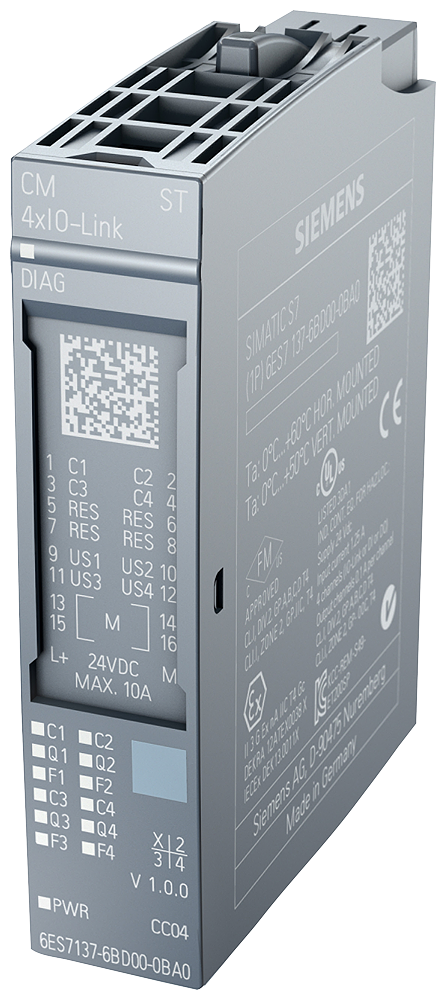

Siemens SIMATIC ET 200SP, CM 4XIO-LINK ST Communication module IO-Link Master V1.1

Siemens 6ES7137-6BD00-0BA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, CM 4 X IO-LINK ST Communication Module module IO-Link master V1.1.

Manufacturer part number (MPN)

6ES7137-6BD00-0BA0

EAN / GTIN

4025515082095

Sales unit

pcs

Product type designation

CM 4 x IO-Link ST

HW functional status

FS20

Firmware version

V2.2.2

Firmware version — FW update possible

Yes

Usable BaseUnits

BU type A0

Color code for module-specific color-coded label

CC04

Product function — I&M data

Yes; I&M0 to I&M3

Product function — Isochronous mode

No; Only for PROFINET and configuration as version with FW V2.0 or V2.1

Engineering with — STEP 7 TIA Portal configurable/integrated from version

STEP 7 V15 or higher

Engineering with — STEP 7 configurable/integrated from version

STEP 7 V5.5 or higher

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Operating mode — IO-Link

Yes

Operating mode — DI

Yes

Operating mode — DQ

Yes; max. 100 mA per channel

Rated value (DC)

24 V

Permissible range, lower limit (DC)

20.4 V

Permissible range, upper limit (DC)

28.8 V

Power supply according to NEC Class 2 required

No

Current consumption, max.

45 mA; without load

Number of outputs

4

Output current — nominal

700 mA; Per channel

24 V encoder supply — Short-circuit protection

Yes

24 V encoder supply — Output current, max.

2.1 A

Power loss, typ.

1 W

Cable length — unshielded, max.

20 m; Also applies for shielded cables

Number of ports

4

Number of ports — of which simultaneously controllable

4

IO-Link protocol 1.0

Yes

IO-Link protocol 1.1

Yes

Transmission rate

4.8 kBaud (COM1); 38.4 kBaud (COM2), 230.4 kBaud (COM3)

Cycle time, min.

2 ms; dynamic, depending on user data length

Size of process data, input per port

32 byte; max.

Size of process data, input per module

144 byte; max.

Size of process data, output per port

32 byte; max.

Size of process data, output per module

128 byte; max.

Memory size for device parameter

2 kbyte; for each port

Time Based IO — TIO IO-Link IN

No; Only for PROFINET and configuration as version with FW V2.0 or V2.1

Time Based IO — TIO IO-Link OUT

No; Only for PROFINET and configuration as version with FW V2.0 or V2.1

Time Based IO — TIO IO-Link IN/OUT

No; Only for PROFINET and configuration as version with FW V2.0 or V2.1

Connection of IO-Link devices — Port type A

Yes

Connection of IO-Link devices — Port type B

Yes; 24 V DC via external terminal

Connection of IO-Link devices — via three-wire connection

Yes

Alarms — Diagnostic alarm

Yes; The port diagnosis is available in the IO-Link mode only.

Diagnoses — Monitoring the supply voltage

Yes

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; one green LED for channel status Qn (SIO mode) and port status Cn (IO-Link mode) per channel

Diagnostics indication LED — for channel diagnostics

Yes; red Fn LED

Diagnostics indication LED — for module diagnostics

Yes; green/red DIAG LED

Potential separation channels — between the channels and the power supply of the electronics

No

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

2 000 m; On request: Installation altitudes greater than 2 000 m

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

30 g

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

Yes

Supporting protocol for Modbus

Yes

Supporting protocol for DeviceNet

No

Supporting protocol for PROFINET IO

Yes

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for PROFIsafe

No

Supporting protocol for other bus systems

Yes

Radio standard WLAN 802.11

No

Radio standard eGPRS

No

Radio standard LTE

No

Degree of protection (IP)

IP20

Suitable for safety functions

No

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

13 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8517.62
