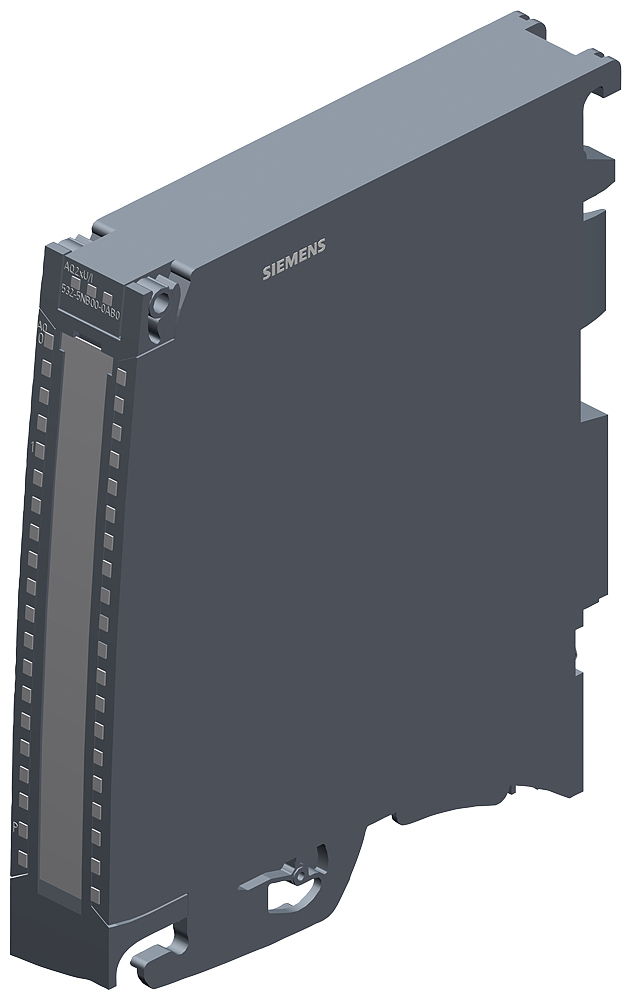

Siemens SIMATIC S7 automation module 6ES7532-5NB00-0AB0

Siemens 6ES7532-5NB00-0AB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC S7-1500, Analog output module AQ 2 X U/In ST; 16-bits resolution.

Manufacturer part number (MPN)

6ES7532-5NB00-0AB0

EAN / GTIN

4047623403487

Sales unit

pcs

Product type designation

AQ 2xU/I ST

HW functional status

from FS01

Firmware version

V1.0.0

FW update possible

Yes

I&M data

Yes; I&M0 to I&M3

STEP 7 TIA Portal configurable/integrated from version

V13 / V13.0.2

STEP 7 configurable/integrated from version

V5.5 SP3 / -

PROFIBUS from GSD version/GSD revision

V1.0 / V5.1

PROFINET from GSD version/GSD revision

V2.3 / -

MSO

Yes

Reparameterization possible in RUN

Yes

Calibration possible in RUN

Yes

Supply voltage — Rated value (DC)

24 V

Supply voltage — permissible range, lower limit (DC)

19.2 V

Supply voltage — permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

110 mA

Power consumption from the backplane bus

0.65 W

Power loss, typ.

2.7 W

Analog outputs — Number of analog outputs

2

Voltage output ranges

0 to 10 V, 1 V to 5 V, -10 V to +10 V

Current output ranges

0 to 20 mA, -20 mA to +20 mA, 4 mA to 20 mA

Voltage output, short-circuit protection

Yes

Voltage output, short-circuit current, max.

24 mA

Current output, no-load voltage, max.

22 V

Cycle time (all channels), min.

3.2 ms; independent of number of activated channels

Connection for voltage output two-wire connection

Yes

Connection for voltage output four-wire connection

Yes

Connection for current output two-wire connection

Yes

Load resistance with voltage outputs, min.

1 kΩ; 0.5 kΩ at 1 to 5 V

Load with voltage outputs, capacitive, max.

1 µF

Load with current outputs, max.

750 Ω

Load with current outputs, inductive, max.

10 mH

Cable length shielded, max.

800 m for current, 200 m for voltage

Resolution with overrange (bit including sign), max.

16 bit

Conversion time (per channel)

0.5 ms

Settling time for resistive load

1.5 ms

Settling time for capacitive load

2.5 ms

Settling time for inductive load

2.5 ms

Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)

0.02 %

Linearity error (relative to output range), (+/-)

0.15 %

Temperature error (relative to output range), (+/-)

0.002 %/K

Crosstalk between the outputs, max.

-100 dB

Repeat accuracy in steady state at 25 °C (+/-)

0.05 %

Operational error limit voltage (relative to output range), (+/-)

0.3 %

Operational error limit current (relative to output range), (+/-)

0.3 %

Diagnostics function

Yes

Substitute values connectable

Yes

Diagnostic alarm

Yes

Monitoring the supply voltage

Yes

Wire break detection

Yes; only for output type "current"

Short-circuit detection

Yes; only for output type "voltage"

Overflow/Underflow diagnostics

Yes

RUN LED

green; ERROR LED: red

Channel status display

Yes; green LED

Potential separation between the channels

No; in groups of 2

Potential separation between the channels and backplane bus

Yes

Potential separation between the channels and load voltage L+

Yes

Permissible potential difference between S- and MANA (UCM)

8 V DC

Isolation tested with

707 V DC (type test)

Siemens Eco Profile (SEP)

Siemens EcoTech

Suitable for safety-related tripping of standard modules

Yes; from FS02

Performance level according to ISO 13849-1

PL d

Category according to ISO 13849-1

Cat. 3

SILCL according to IEC 62061

SIL 2

Ambient temperature horizontal installation, min.

-30 °C (from FS04)

Ambient temperature horizontal installation, max.

60 °C

Ambient temperature vertical installation, min.

-30 °C (from FS04)

Ambient temperature vertical installation, max.

40 °C

Installation altitude above sea level, max.

5000 m; restrictions above 2000 m

Dimensions — Width

25 mm

Dimensions — Height

147 mm

Dimensions — Depth

129 mm

Weight, approx.

200 g

Note

Supplied incl. 40-pole push-in front connectors

Number of analogue outputs

2

Analogue inputs configurable

No

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue outputs

16 Bit

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

25 mm

Height

147 mm

Depth

129 mm

Country of origin

Germany

HS Code

8538.90

• EAN 4047623403487
• SAP 1000667842
• Code 8521822
