Siemens SIMATIC S7 automation module 6ES7226-6DA32-0XB0

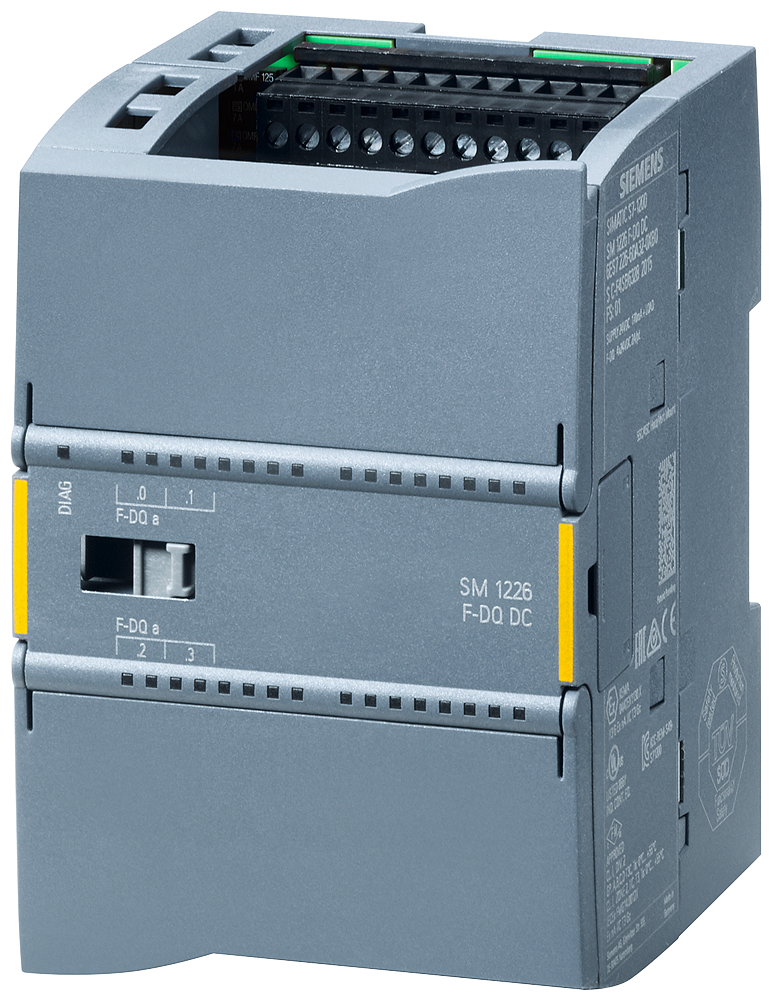

Siemens 6ES7226-6DA32-0XB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC S7-1200, Digital output Fail-Safe, SM 1226, F-DQ 4X 24VDC 2A,.

Manufacturer part number (MPN)

6ES7226-6DA32-0XB0

EAN / GTIN

4025515082873

Sales unit

pcs

Product type designation

SM 1226 F-DQ 4x 24 VDC

Supply voltage — permissible range, lower limit (DC)

20.4 V

Supply voltage — permissible range, upper limit (DC)

28.8 V

Current consumption from backplane bus 5 V DC, max.

125 mA

Digital outputs — from load voltage L+, max.

170 mA

Power loss, typ.

8 W

Number of digital outputs

4

Digital outputs — in groups of

1

Short-circuit protection

Yes

Switching capacity of the outputs — with resistive load, max.

30 Hz

Switching capacity of the outputs — on lamp load, max.

10 Hz

Output voltage — Rated value (DC)

24 V

Output current — for signal "1" rated value

2 A

Output current — for signal "1" permissible range, max.

10 mA to 2.4 A

Output current — for signal "0" residual current, max.

P-switch: 0.5 mA; M-switch: 0.5 mA

Cable length — shielded, max.

200 m

Cable length — unshielded, max.

200 m

Diagnostics indication LED — for status of the outputs

Yes

IP degree of protection

IP20

CE mark

Yes

cULus

Yes

FM approval

Yes

Highest safety class — Performance level according to ISO 13849-1

Category 4, PL e

Highest safety class — SIL acc. to IEC 61508

SIL 3

PFDavg in accordance with SIL3 (low demand mode)

< 1.00E-05

PFH in accordance with SIL3 (high demand/continuous mode)

< 4.00E-09

Free fall — Fall height, max.

0.3 m; five times, in product package

Ambient temperature during operation — min.

0 °C

Ambient temperature during operation — max.

55 °C

Ambient temperature during storage/transportation — min.

-40 °C

Ambient temperature during storage/transportation — max.

70 °C

Air pressure acc. to IEC 60068-2-13 — Storage/transport, min.

660 hPa

Air pressure acc. to IEC 60068-2-13 — Storage/transport, max.

1 080 hPa

Relative humidity — Operation at 25 °C without condensation, max.

95 %

Dimensions — Width

70 mm

Dimensions — Height

100 mm

Dimensions — Depth

75 mm

Weight, approx.

270 g

Voltage type (supply voltage)

DC

Digital inputs configurable

Yes

Type of voltage (input voltage)

DC

Type of digital output

Transistor

Output current

2 A

Type of output voltage

DC

Type of electric connection

Screw connection

SIL according to IEC 61508

3

Performance level according to EN ISO 13849-1

Level e

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

70 mm

Height

100 mm

Depth

75 mm

Country of origin

Germany

HS Code

8538.90
