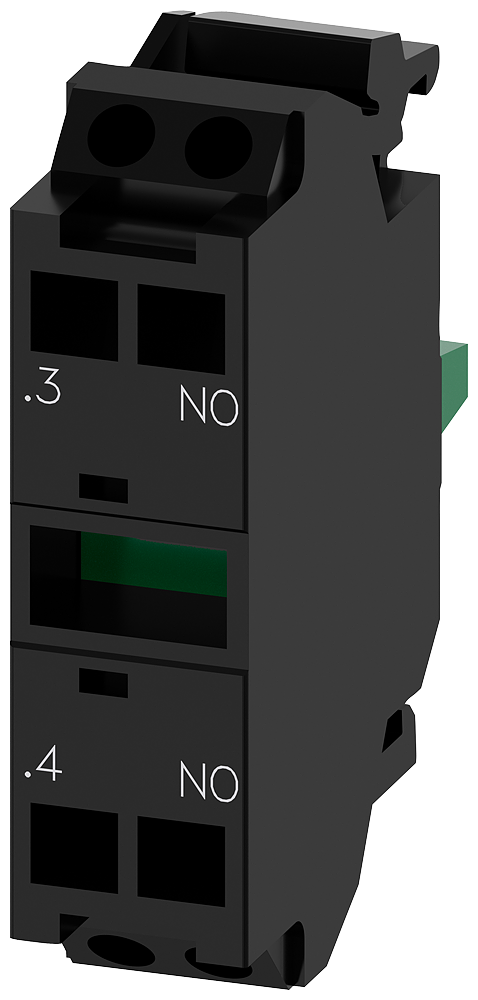

Siemens SIRIUS ACT Contact module with 1 contact element, 1 NO, spring-type terminal, for front plate mounting

Siemens 3SU1400-1AA10-3BA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT,Contact Element,1NO.

Manufacturer part number (MPN)

3SU1400-1AA10-3BA0

EAN / GTIN

4011209950894

Sales unit

pcs

Package quantity

5 pcs

Product type designation

3SU1

Insulation voltage rated value

500 V

Degree of pollution

3

Type of voltage — of the operating voltage

AC/DC

Type of voltage — of the input voltage

AC/DC

Surge voltage resistance rated value

6 kV

Protection class IP — of the enclosure

IP40

Protection class IP — of the terminal

IP20

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating frequency maximum

3 600 1/h

Mechanical service life (operating cycles) typical

10 000 000

Electrical endurance (operating cycles) typical

10 000 000

Thermal current

10 A

Continuous current of the C characteristic MCB

10 A

General technical data — Net Weight

8 g

At AC — at 50 Hz rated value

5 ... 500 V

At AC — at 60 Hz rated value

5 ... 500 V

At AC — at DC rated value

5 ... 500 V

Contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

0

Number of NC contacts for auxiliary contacts — lagging switching

0

Number of NO contacts for auxiliary contacts

1

Number of NO contacts for auxiliary contacts — leading contact

0

Operational current at AC-12 — at 24 V rated value

10 A

Operational current at AC-12 — at 48 V rated value

10 A

Operational current at AC-12 — at 110 V rated value

10 A

Operational current at AC-12 — at 230 V rated value

8 A

Operational current at AC-12 — at 400 V rated value

8 A

Operational current at AC-15 — at 24 V rated value

6 A

Operational current at AC-15 — at 48 V rated value

6 A

Operational current at AC-15 — at 110 V rated value

6 A

Operational current at AC-15 — at 230 V rated value

6 A

Operational current at AC-15 — at 400 V rated value

3 A

Operational current at AC-15 — at 500 V rated value

1.4 A

Operational current at DC-12 — at 24 V rated value

10 A

Operational current at DC-12 — at 48 V rated value

5 A

Operational current at DC-12 — at 110 V rated value

2.5 A

Operational current at DC-12 — at 230 V rated value

1 A

Operational current at DC-12 — at 400 V rated value

0.3 A

Operational current at DC-12 — at 500 V rated value

0.3 A

Operational current at DC-13 — at 24 V rated value

3 A

Operational current at DC-13 — at 48 V rated value

1.5 A

Operational current at DC-13 — at 110 V rated value

0.7 A

Operational current at DC-13 — at 230 V rated value

0.3 A

Operational current at DC-13 — at 400 V rated value

0.1 A

Operational current at DC-13 — at 500 V rated value

0.1 A

Type of electrical connection

spring-loaded terminals

Type of connectable conductor cross-sections — solid without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.25 ... 0.75 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (24 ... 16)

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Installation/ mounting/ dimensions — height

36 mm

Installation/ mounting/ dimensions — width

9.8 mm

Installation/ mounting/ dimensions — depth

27.7 mm

Country of origin

Germany

HS Code

8536.50
