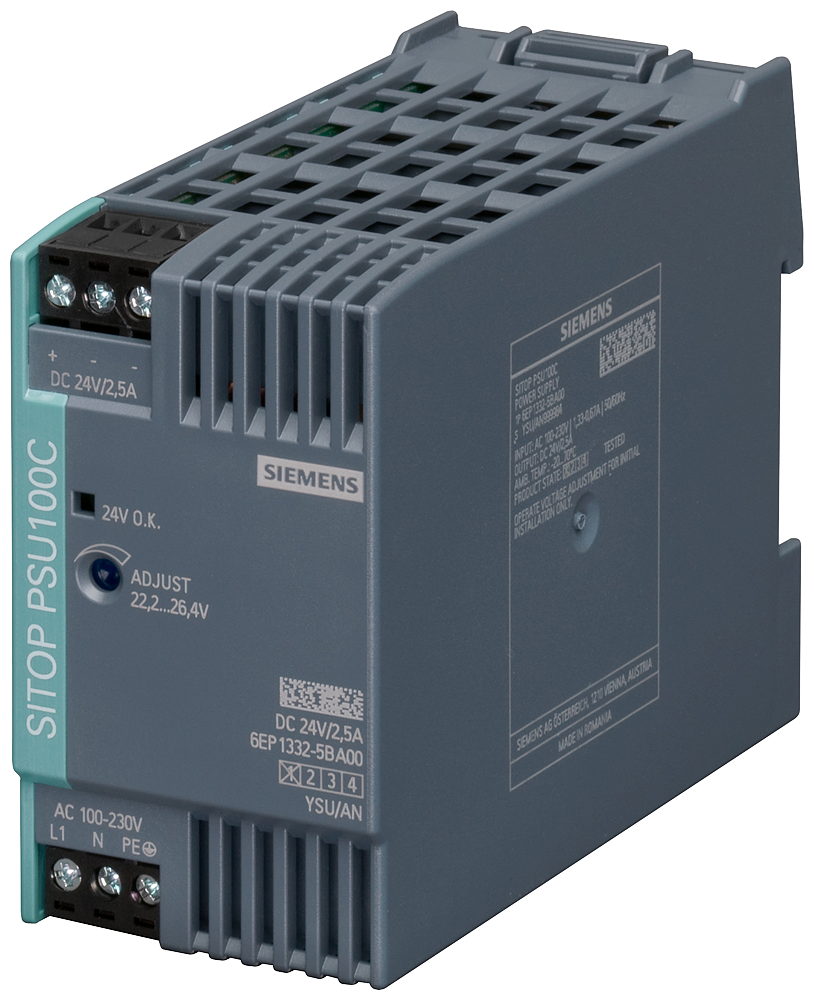

Siemens SITOP DC power supply 6EP1332-5BA00

Siemens 6EP1332-5BA00 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU100C 24 V/2.5 A, regulated power supply.

Manufacturer part number (MPN)

6EP1332-5BA00 EAN / GTIN: 4025515152613 Sales unit: pcs Product brand name: SITOP Product designation: PSU100C stabilized power supply Product type designation: SITOP PSU100C Type of the power supply network: 1-phase AC or DC Supply voltage at AC: 100 ... 230 V Input voltage at DC: 110 ... 300 V Wide range input: Yes Overvoltage overload capability: 2.3 × Vin rated, 1.3 ms Buffering time for rated value of the output current in the event of power failure minimum: 20 ms Operating condition of the mains buffering: at Vin = 230 V Line frequency: 47 ... 63 Hz Input current at rated input voltage 230 V: 0.67 A Current limitation of inrush current at 25 °C maximum: 31 A I2t value maximum: 2.4 A²·s Fuse protection type: internal Fuse protection type in the feeder: Recommended miniature circuit breaker: from 16 A characteristic B or from 10 A characteristic C Voltage curve at output: Controlled, isolated DC voltage Output voltage at DC rated value: 24 V Output v

HS Code

8504.40

• EAN 4025515152613
• SAP 1000100854
• Code 8959455
