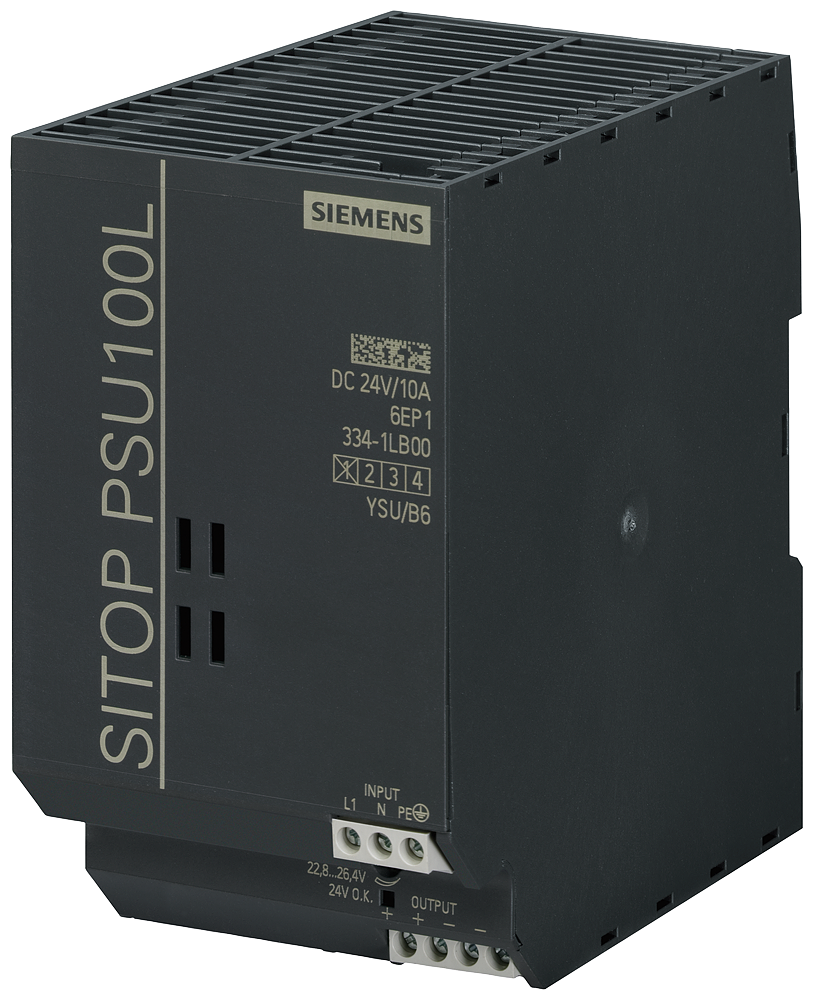

Siemens SITOP PSU100L 1AC/24 V DC/10 A Regulated Power Supply
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6EP1334-1LB00 SITOP DC power supply. DIN-rail primary-switched regulated 24 V DC power supply for automation panels. SITOP PSU100L 24 V/10 A, regulated power supply.
Technical Specifications
- Manufacturer part number (MPN)
- 6EP1334-1LB00 EAN / GTIN: 4025515152996 Sales unit: pcs Type of the power supply network: 1-phase AC Supply voltage: 120 V/230 V Input voltage 1 at AC: 93 - 132 V Input voltage 2 at AC: 187 - 264 V Overvoltage overload capability: 2.3 × Vin rated, 1.3 ms Buffering time for rated value of the output current in the event of power failure minimum: 20 ms Operating condition of the mains buffering: at Vin = 93/187 V Line frequency: 50/60 Hz Input current at rated input voltage 120 V: 4.1 A Input current at rated input voltage 230 V: 2 A Current limitation of inrush current at 25 °C maximum: 65 A Duration of inrush current limiting at 25 °C typical: 3 ms I2t value maximum: 3.3 A²·s Fuse protection type: T 6.3 A/250 V (not accessible) Fuse protection type in the feeder: Recommended miniature circuit breaker: from 10 A characteristic C Output voltage at DC rated value: 24 V Output voltage at output 1 at DC rated value: 24 V Adjustable output voltage:
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4025515152996
- SAP 1000100869
- Code 8988170
Product Documentation
More from Siemens
Siemens
Siemens JUMPER LINK BLACK, 200mm, 16 mm², 3 pcs
5ST3793-2
Siemens
Siemens Profibus M12 cable 15M
6XV1830-3DN15
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE52-0AB0
Siemens
Siemens SENTRON 5SP4391-6 Miniature Circuit Breaker 3-Pole B100A 10KA
Siemens
Siemens SCALANCE XC106-2; 6 x 10/100 Mbit/s RJ45 porter + 2 x 100 Mbit/s ST-port multimode
6GK5106-2BB00-2AC2
Siemens
Siemens SIRIUS ACT Selector switch, illuminable, 30 mm, round, metal, matte, green, selector switch, short, front ring for flush installation, 3 switch positions I>O<II, momentary contact type, actuating angle 2X45°, 10:30H/12H/13:30H
3SU1062-2DM40-0AA0
Siemens
Siemens SIRIUS ACT 3-Way Holder, 1 NC, LED Amber 6-24 V AC/DC
3SU1501-1AG00-1CA0
Siemens
Siemens Residual current circuit breaker with overcurrent, 2P, 20A, Type A, 30MA, C-Curve, Zinc-plated K,2MW,Icn=10KA, conductor cross-section 35 mm²,torque 2Nm
5SU1324-7FR20
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6EP1334-1LB00?
- 6EP1334-1LB00 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 6EP1334-1LB00.
- What is the HS code for 6EP1334-1LB00?
- The customs tariff (HS) code for 6EP1334-1LB00 is 8504.40.
- Who manufactures 6EP1334-1LB00?
- 6EP1334-1LB00 is a Siemens product in the Control & Automation range.
- Is a datasheet available for 6EP1334-1LB00?
- Yes — the 6EP1334-1LB00 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6EP1334-1LB00?
- The minimum order quantity is 1.
- Is 6EP1334-1LB00 available?
- Yes — 6EP1334-1LB00 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
