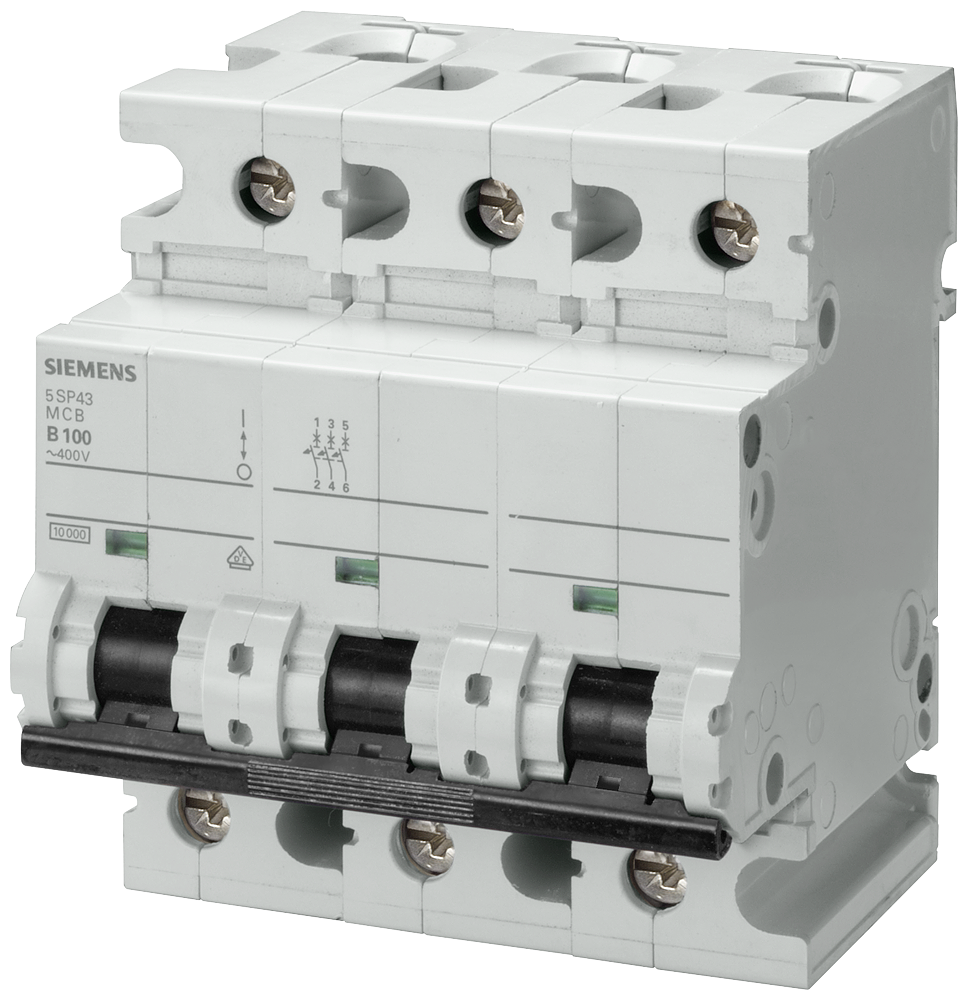

Siemens SENTRON 5SP4391-6 Miniature Circuit Breaker 3-Pole B100A 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SP4 miniature circuit breaker, ordering number 5SP4391-6. 3-Pole DIN-rail MCB with B tripping characteristic (3–5 × In), rated current 100 A, rated voltage 400 V AC, rated short-circuit breaking capacity 10 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–50 mm², tightening torque 3–3.5 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SP4391-6
- Series
- Siemens SENTRON 5SP4
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 3-Pole
- Rated current (In)
- 100 A
- Tripping characteristic
- B (3–5 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 10 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–50 mm²
- Terminal tightening torque
- 3–3.5 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869195391
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 2 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SP4
- HS Code
- 8536.20
Cross References
- EAN 4001869195391
- SAP 1000056853
- Code 8857688
Product Documentation
