Siemens SIMATIC ET 200MP IM155-5 DP ST

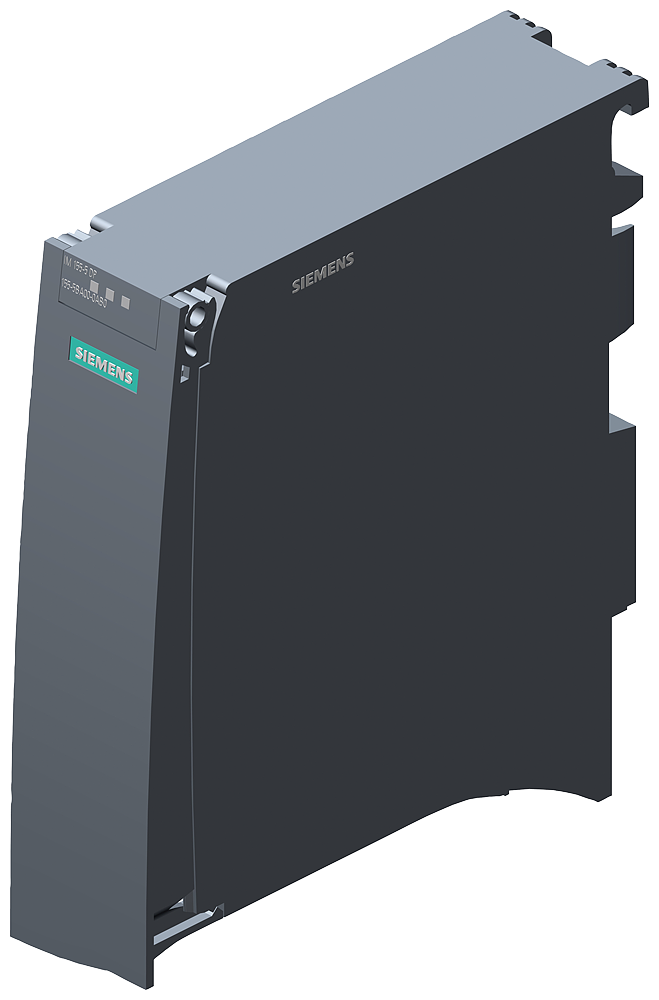

Siemens 6ES7155-5BA00-0AB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. Simatic ET 200 MP, Profibus IO device, interface module IM 155-5 DP ST.

Manufacturer part number (MPN)

6ES7155-5BA00-0AB0

EAN / GTIN

4047623402138

Sales unit

pcs

Product type designation

IM 155-5 DP ST

HW functional status

from FS01

Firmware version

V2.0.0

Firmware version — FW update possible

Yes

Vendor identification (VendorID)

81AAh

Product function — I&M data

Yes; I&M0 to I&M3

Product function — Module swapping during operation (hot swapping)

No

Product function — Isochronous mode

No

Product function — IRT

No

Product function — Tool changer

No

Product function — Local coupling, IO data

No

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13

Engineering with — STEP 7 configurable/integrated from version

use GSD file

Engineering with — PROFIBUS from GSD version/GSD revision

V1.0 / V5.1

Via dataset

No

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Short-circuit protection

Yes

Mains buffering — Mains/voltage failure stored energy time

5 ms

Current consumption (rated value)

0.2 A; at 24 V DC and without load

Current consumption, max.

1.2 A; at 20.4 V DC and max. load

Inrush current, max.

4 A

I²t

0.09 A²·s

From interface 5 V DC, max.

80 mA

Infeed power to the backplane bus

14 W

Power loss, typ.

4 W

Address space per module — Address space per module, max.

64 byte; For input and output data respectively

Address space per station — Address space per station, max.

244 byte; For input and output data respectively

Integrated power supply

Yes; 14 W

System power supply can be plugged in to left of IM

No

Number of permissible power segments

1; incl. interface module

Rack — Modules per rack, max.

12; I/O modules

Number of PROFIBUS interfaces

1; 1 port

Interface types — RS 485

Yes

Interface types — Number of ports

1

Interface types — integrated switch

No

Interface types — BusAdapter (PROFINET)

No

Protocols — PROFIBUS DP device

Yes

Services — IRT

No

RS 485 — Transmission rate, max.

12 Mbit/s

Supports protocol for PROFINET IO

No

Diagnostics indication LED — RUN LED

Yes; green LED

Diagnostics indication LED — ERROR LED

Yes; red LED

Diagnostics indication LED — MAINT LED

Yes; Yellow LED

Diagnostics indication LED — Connection display DP

Yes; green LED

Between different circuits

Safety extra low voltage SELV

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-25 °C; from FS04

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-25 °C; from FS04

Ambient temperature during operation — vertical installation, max.

40 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

ET-Connection — via BU/BA Send

No

Dimensions — Width

35 mm

Dimensions — Height

147 mm

Dimensions — Depth

129 mm

Weight, approx.

360 g

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Supporting protocol for TCP/IP

No

Supporting protocol for DeviceNet

No

Supporting protocol for Foundation Fieldbus

No

Radio standard eGPRS

No

Radio standard LTE

No

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

35 mm

Height

147 mm

Depth

129 mm

Country of origin

Germany

HS Code

8517.62

• EAN 4047623402138
• SAP 1000611323
• Code 8461408
