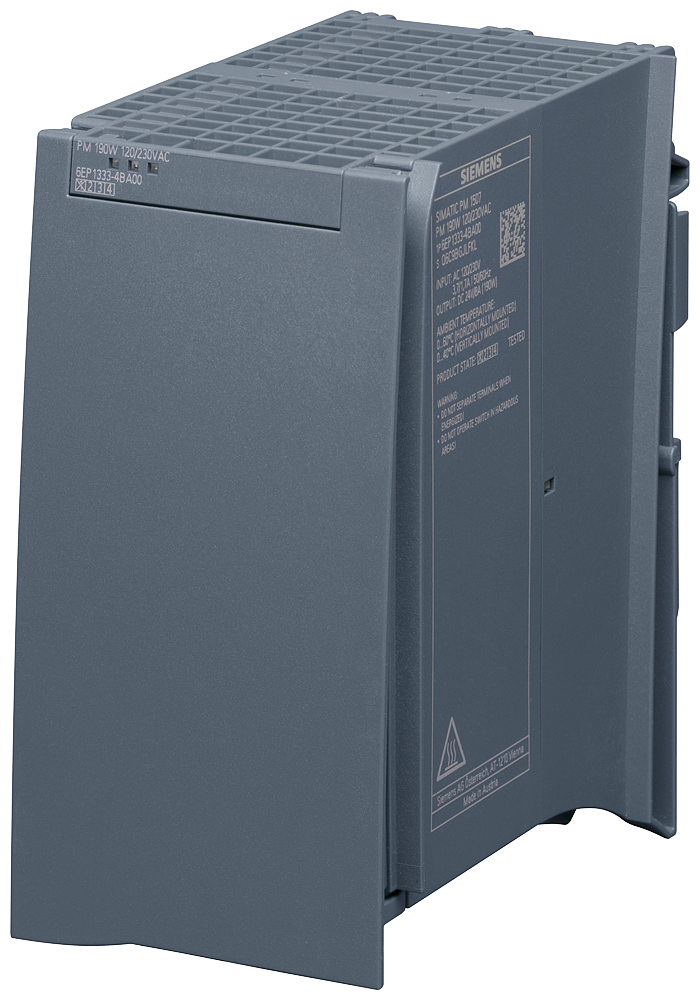

Siemens SITOP DC power supply 6EP1333-4BA00

Siemens 6EP1333-4BA00 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. Simatic S7 1500 powersupply, PM 1507 24V 8A.

Manufacturer part number (MPN)

6EP1333-4BA00 EAN / GTIN: 4025515152712 Sales unit: pcs Type of the power supply network: 1-phase AC Supply voltage: 120 V/230 V Input voltage 1 at AC: 85 ... 132 V Input voltage 2 at AC: 170 ... 264 V Overvoltage overload capability: 2.3 × Vin rated, 1.3 ms Buffering time for rated value of the output current in the event of power failure minimum: 20 ms Operating condition of the mains buffering: at Vin = 93/187 V Line frequency: 50/60 Hz Input current — at rated input voltage 120 V: 3.7 A Input current — at rated input voltage 230 V: 1.7 A Current limitation of inrush current at 25 °C maximum: 62 A I2t value maximum: 12 A²·s Fuse protection type: T 6.3 A/250 V (not accessible) Fuse protection type in the feeder: Recommended miniature circuit breaker: 16 A characteristic B or 10 A characteristic C Voltage curve at output: Controlled, isolated DC voltage Output voltage at DC rated value: 24 V Output voltage adjustable: No Relative overall tolerance of the voltage: 1 % Residual ripple — maximum: 50 mV Display version for normal operation: LED green for 24 V OK; LED red for error; LED yellow for stand-by Behavior of the output voltage when switching on: No overshoot of Vout (soft start) Output current — rated value: 8 A Output current — rated range: 0 ... 8 A Supplied active power typical: 192 W Short-term overload current — at short-circuit during operation typical: 35 A Bridging of equipment: Yes Efficiency in percent: 90 % Power loss [W] — at rated output voltage for rated value of the output current typical: 21 W Design of the overvoltage protection: Additional control loop, limitation (closed loop control) at < 28.8 V Property of the output short-circuit proof: Yes Design of short-circuit protection: Electronic shutdown, automatic restart Response value current limitation: 8.4 ... 9.6 A Galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) Operating resource protection class: Class I Leakage current — maximum: 3.5 mA Protection class IP: IP20 Standard — for emitted interference: EN 55022 Class B Standard — for interference immunity: EN 61000-6-2 MTBF at 40 °C: 1 362 918 h Shipbuilding approval: Yes Ambient temperature — during operation: 0 ... 60 °C; with natural convection Ambient temperature — in vertical mounting position during operation: 0 ... 40 °C Ambient temperature — during storage: -40 ... +85 °C Type of electrical connection: Screw-/spring clamp connection Connection method — at input: L, N PE: 1 screw terminal each for 0.5 ... 2.5 mm² Connection method — at output: L+ M: 2 spring-loaded terminals each for 0.5 to 2.5 mm² Width × height × depth of the enclosure: 75 × 147 × 129 mm Installation width × mounting height: 75 mm × 205 mm Fastening method: Can be mounted onto S7-1500 rail Mechanical data — net weight: 0.74 kg Voltage type (supply voltage): AC 1st secondary output voltage: 24 V Max. output current 1: 8 A Secondary voltage adjustable: No Nominal value output voltage 1: 24 V Nominal value output current 1: 8 A Short-circuit-proof: Yes Rated supply voltage AC 50 Hz: 230 V Rated supply voltage AC 60 Hz: 120 V Output voltage stabilized: Yes Power output: 192 W Stabilized: Yes Type of electric connection: Screw-/spring clamp connection Suitable for rail mounting: No Wall mounting possible: No Suitable for distribution board: Yes Built-in width: 75 mm Built-in height: 205 mm Direct mounting possible: No Width: 75 mm Height: 147 mm Depth: 129 mm Suitable for safety functions: No Degree of protection (IP): IP20 Suitable for wall mounting: No Country of origin: Germany
