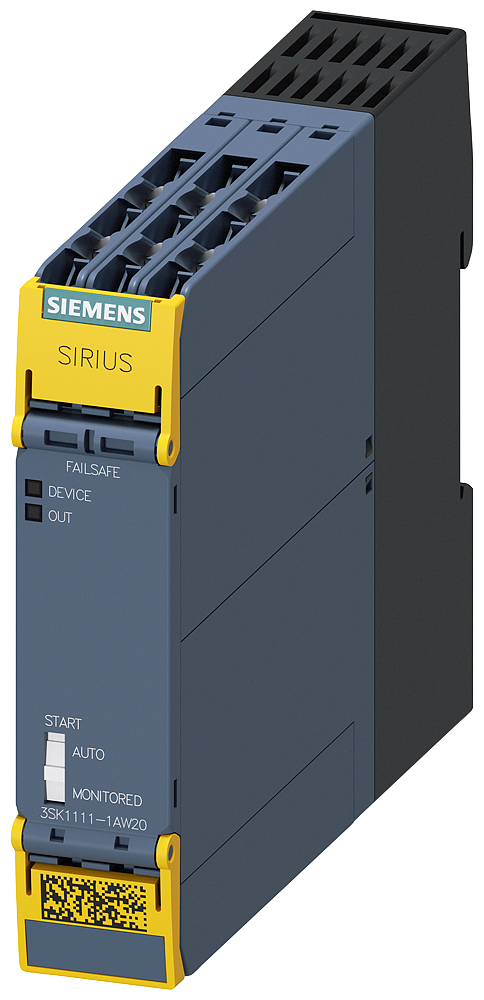

Siemens SIRIUS 3SK1 safety relay 3SK1111-1AW20
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SK1111-1AW20 — SIRIUS 3SK1 safety relay. Compact safety relay for emergency-stop, safety-gate and light-curtain monitoring per EN ISO 13849. Standard relay 3NO+1NC 110-230VAC.
Technical Specifications
- Manufacturer part number (MPN)
- 3SK1111-1AW20
- EAN / GTIN
- 4011209913516
- Sales unit
- pcs
- Operating voltage AC 50 Hz
- 110–240 V
- Operating voltage AC 60 Hz
- 110–240 V
- Operating voltage DC
- 110–240 V
- Power consumption
- 2.5 W
- Supply voltage AC 50 Hz
- 110–240 V
- Supply voltage AC 60 Hz
- 110–240 V
- Supply voltage DC
- 110–240 V
- Control voltage 1
- 110–240 V
- Control voltage 2
- 110–240 V
- Voltage type (operating voltage)
- AC/DC
- Type of control voltage 1
- AC/DC
- Type of control voltage 2
- AC/DC
- Model
- Basic device
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 110–240 V
- Rated control supply voltage AC 60 Hz
- 110–240 V
- Rated control supply voltage DC
- 110–240 V
- Voltage type for actuating
- AC/DC
- Evaluation inputs
- One- and two-channel
- Stop category according to IEC 60204
- 0
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 121.6 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209913516
- SAP 1000349349
- Code 81123612
Product Documentation
More from Siemens
Siemens
Siemens SIMATIC S7 automation module 6ES7431-1KF20-0AB0
Siemens
Siemens SITOP DC power supply 6EP1333-4BA00
Siemens
Siemens Lysbuevakt for 1 module width Residual current circuit breaker with overcurrent, TN 16A
5SM6011-2
Siemens
Siemens DIN-rail terminal for 10mm rail thickness 1,5-16MM2
8US1921-2BA00
Siemens
Siemens 3LD, Main switch, 3-P, Iu:16 A, AC-23/400V: 7,5 kW,plastic IP65, 1NC, 1NO, rotary switch, black
3LD2064-1GP51
Siemens

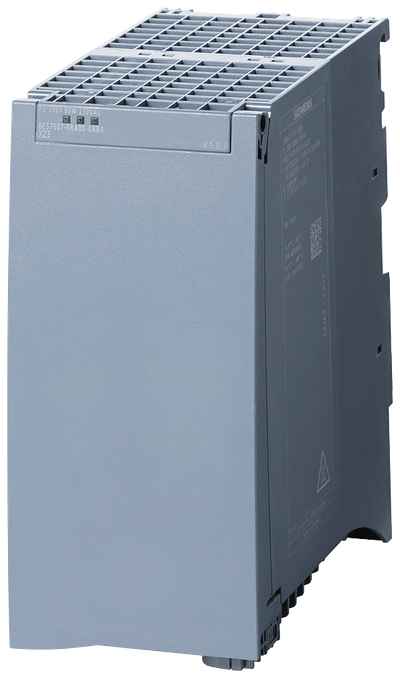

Siemens SIMATIC S7 automation module 6ES7505-0RA00-0AB0
Siemens

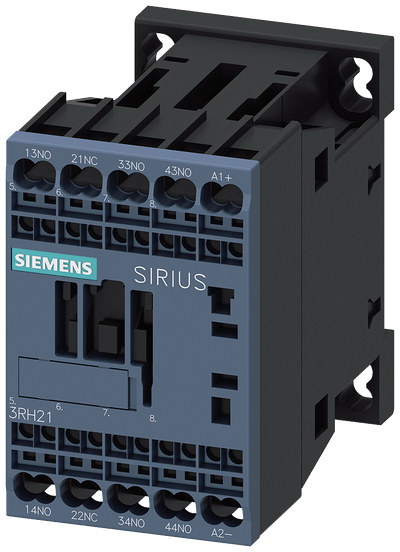

Siemens Contactor Relay, 3NO+1NC, DC 24V, Size S00, Spring Terminal Connection
