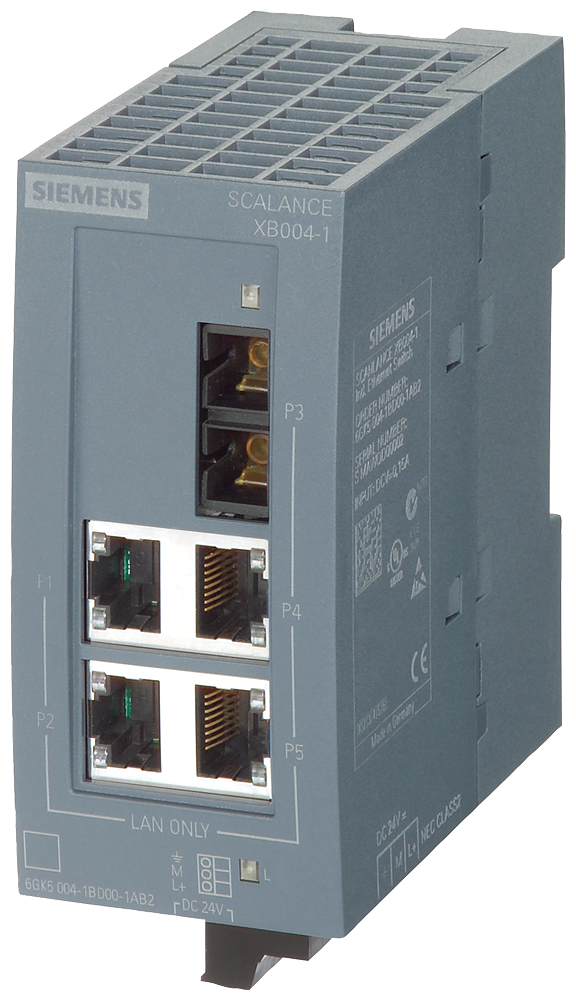

Siemens Scalance XB004-1

Siemens 6GK5004-1BD00-1AB2 Scalance Xb004-1.

Manufacturer part number (MPN)

6GK5004-1BD00-1AB2

EAN / GTIN

4019169853910

Sales unit

pcs

Product brand name

SCALANCE

Product type designation

XB004-1

Transfer rate

10, 100 Mbit/s

Number of electrical connections — for network components or terminal equipment

4; RJ45

Number of 100 Mbit/s SC ports — for multimode

1

Transmission method / of the optical interface

100BaseFX

Number of electrical connections — for power supply

1

Type of electrical connection — for power supply

3-pole terminal block

Type of voltage / 1 / of the supply voltage

DC

Supply voltage, current consumption, power loss — supply voltage / 1 / rated value

24 V

Supply voltage, current consumption, power loss — power loss [W] / 1 / rated value

2.64 W

Supply voltage, current consumption, power loss — supply voltage / 1 / voltage range

19.2 ... 28.8

Supply voltage, current consumption, power loss — consumed current / 1 / maximum

0.11 A

Supply voltage, current consumption, power loss — fuse protection type / 1 / at input for supply voltage

0,6 A / 60 V

Ambient temperature — during operation

-10 ... +60 °C

Ambient temperature — during storage

-40 ... +80 °C

Relative humidity — at 25 °C / without condensation / during operation / maximum

95 %

Protection class IP

IP20

Design

Box

Design, dimensions and weights — width

45 mm

Design, dimensions and weights — height

100 mm

Design, dimensions and weights — depth

87 mm

Design, dimensions and weights — net weight

0.165 kg

Fastening method — 35 mm DIN-rail mounting

Yes

Fastening method — wall mounting

Yes

Product function — CoS

Yes

Product function — switch-managed

No

PROFINET conformity class

A

Product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-network

Yes

Certificate of suitability — CE marking

Yes

Certificate of suitability — cULus approval

Yes

Certificate of suitability — KC approval

Yes

Certificate of suitability — Regulatory Compliance Mark (RCM)

Yes

Standard — for EMC interference emission

EN 61000-6-4 (Class A)

Standard — for immunity to EMC

EN 61000-6-2

Standard — for safety / from CSA and UL

UL 60950-1, CSA C22.2 No. 60950-1

Certificate of suitability — ATEX

Yes

Certificate of suitability — UKEX

Yes

Certificate of suitability — IECEx

Yes

Certificate of suitability — ULhazloc approval

Yes

Certificate of suitability — FM registration

Yes

MTBF

232 a

Warranty period

5 a

Mounting method

DIN rail (top hat rail)

Width

45 mm

Height

100 mm

Depth

87 mm

Number of ports 100 Mbps SC

1

Ethernet

Yes

Number of ports 10/100 Mbps RJ45

4

Layer 2

Yes

Layer 3

No

Manageable

No

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

8517.62

• EAN 4019169853910
• SAP 1000029583
• Code 8231592
